Description

Overview

The Hendrickson INTRAAX air spring replaces the complete rolling-lobe suspension unit on compatible trailer axle systems. Its plastic piston, 1T15MBTW-12 sleeve profile and extended travel suit low-ride and standard INTRAAX configurations where the mounting layout and operating height match.

Features

• Complete compressed air spring with plastic piston
• Reversible-sleeve 1T15MBTW-12 design
• Two upper mounting points and one lower mounting stud
• 1/4-18 NPTF air inlet

Specifications and Materials

The air spring measures approximately 234mm high when compressed and extends to approximately 719mm. The upper plate is approximately 227mm in diameter, while the plastic piston measures approximately 260mm across and 192mm high.

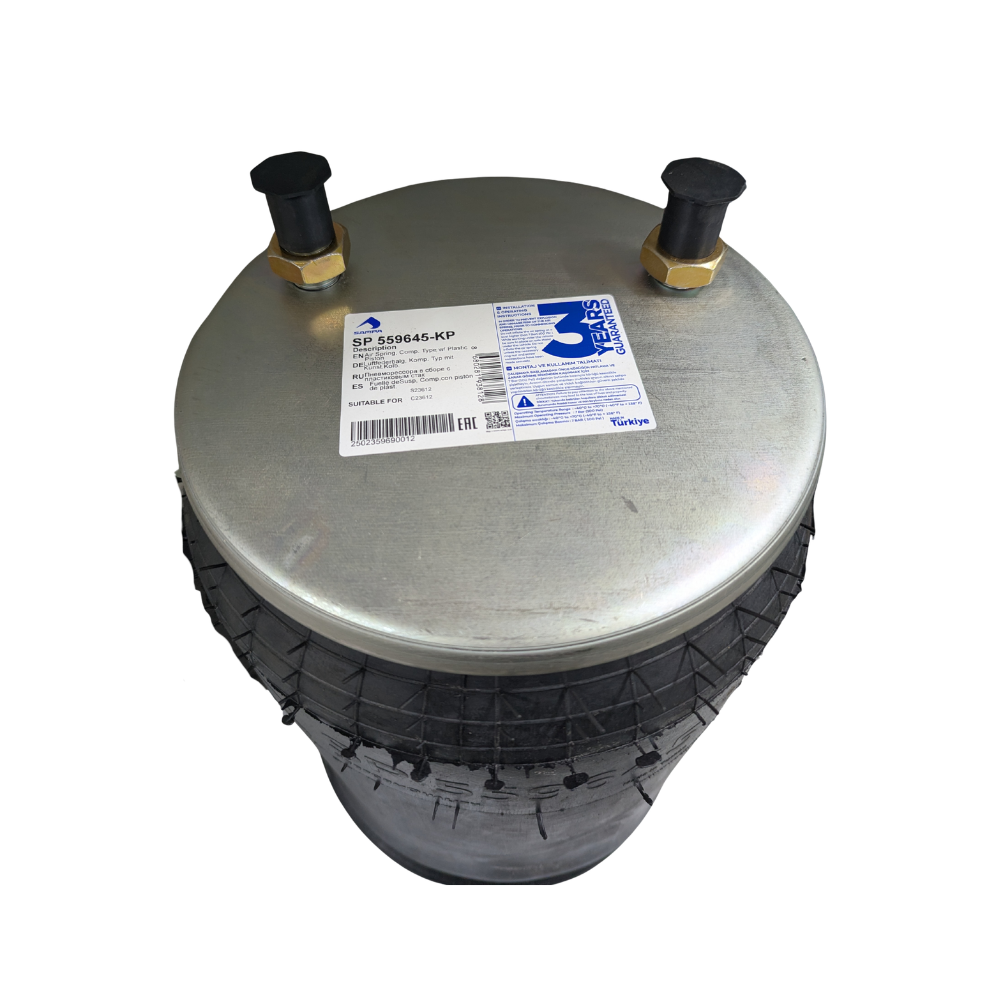

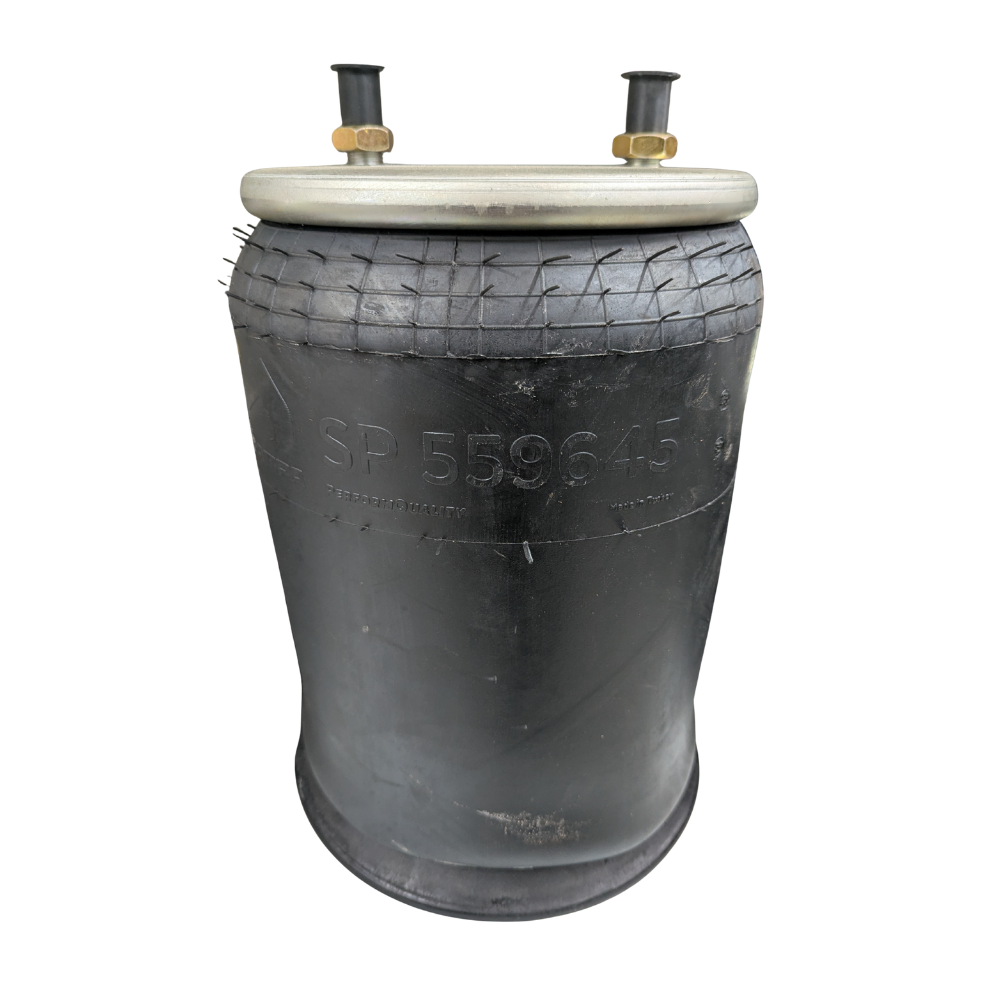

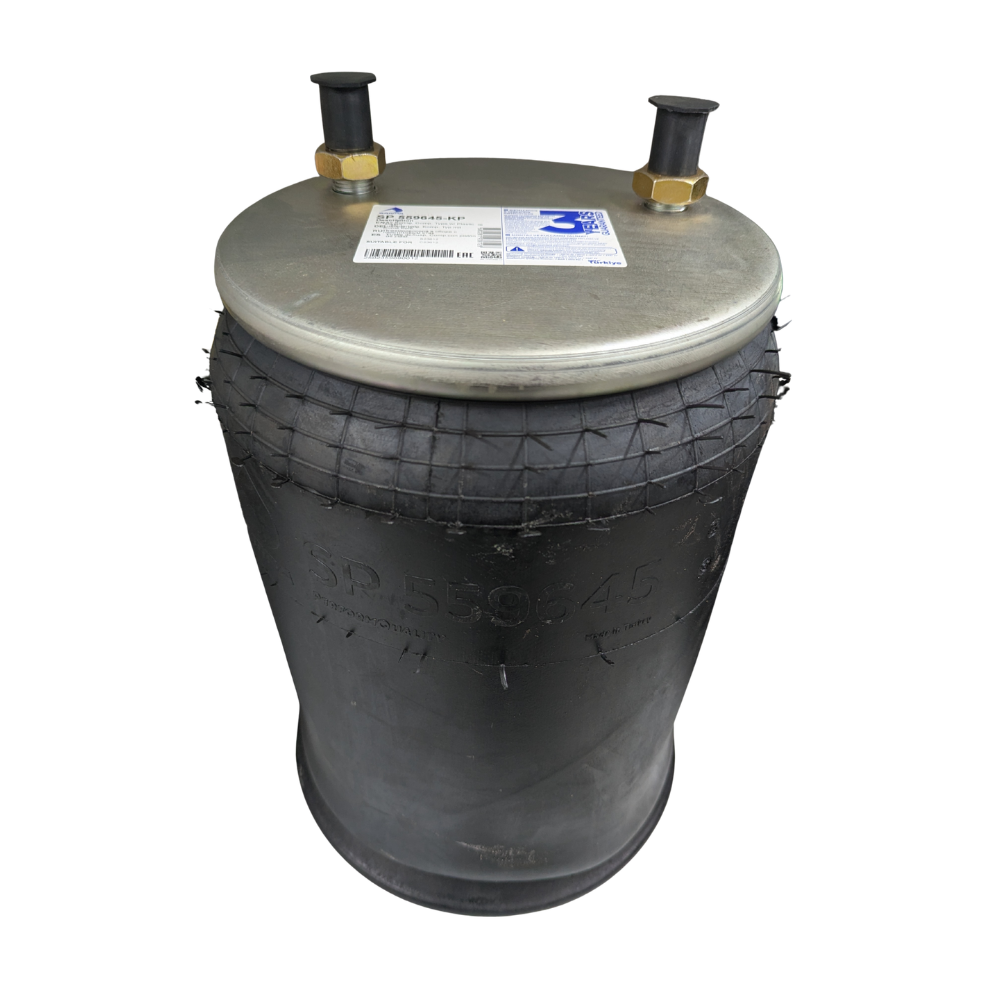

Part number: SP559645-KP.

See the Firestone commercial air spring guide

Compatibility and Fitment

Confirm the piston material, mounting pattern, air inlet position, compressed height, extended height and suspension model before ordering. Similar INTRAAX air springs can use different piston heights, stud locations or operating lengths despite having a comparable external appearance.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 9645, W01-358-9645, W013589645, 1T15MBTW-12, 1T15MBTW12, 64695, 910BP-22P739, 910BP22P739, AS9645, S-23612, S23612, C23612, c-23612, c23612, FS9645, MAF9645, EAS9645, 452-9645, 4529645, 452-9645L, 4529645L, 352-9645, 3529645, 8565, AS9645P, RL96450, AB1DK23U-9645, AB1DK23U9645, AB1DK20K-9645, AB1DK20K9645, HDV9645, HD9645, AS96450, TR9645, SP0070GA, SP0067M, 1T19MB7W12, SP0070, 70

Compliance and Safety

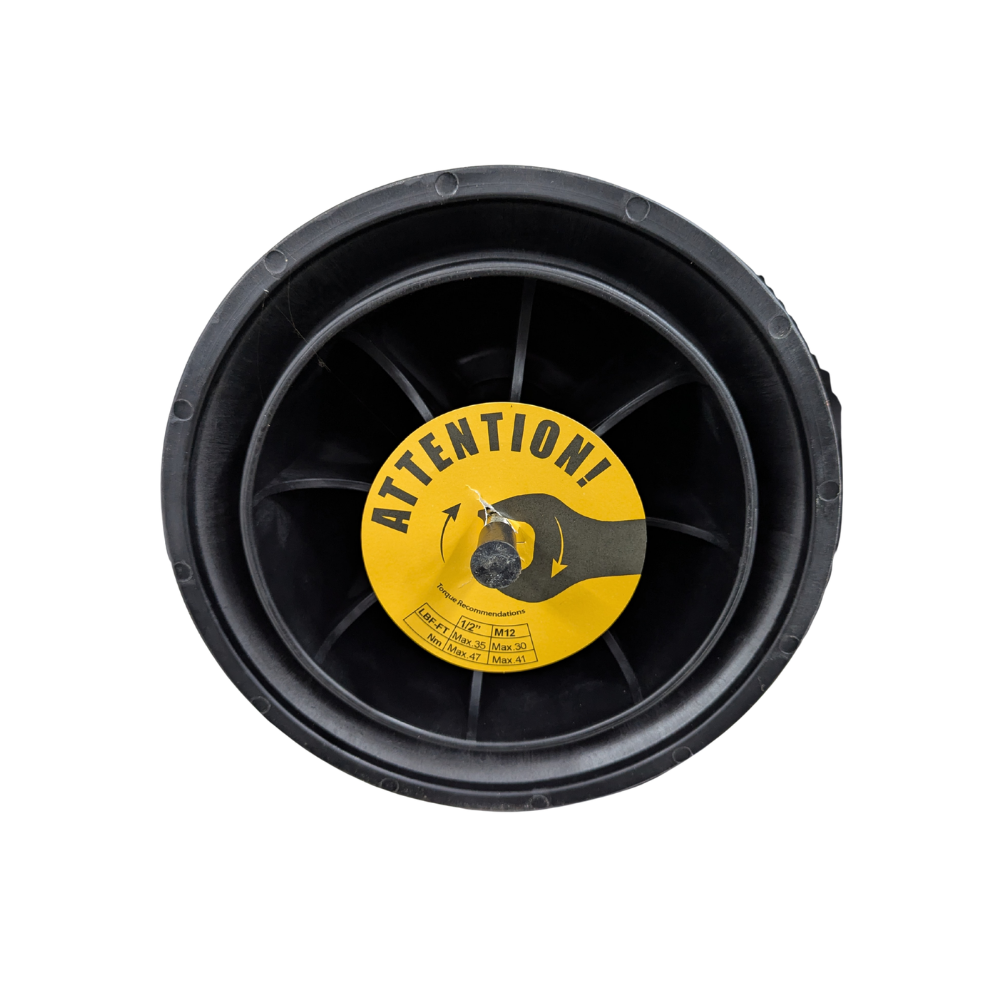

Exhaust all suspension air pressure and support the trailer securely before removing the old unit. Inspect the mounting plates, airline fitting, shock absorbers and surrounding suspension hardware for damage or misalignment. Tighten the mounting fasteners and air connection to the suspension manufacturer’s specification before repressurising the system.

Trailer Applications

This air spring suits compatible Hendrickson INTRAAX applications including AANL23K, AANLS20K, AAL23K, AAL25K, AAL30K, AAEDL30K Lowride, AA230L, AA250L and AA300L suspension configurations.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
