Description

Overview

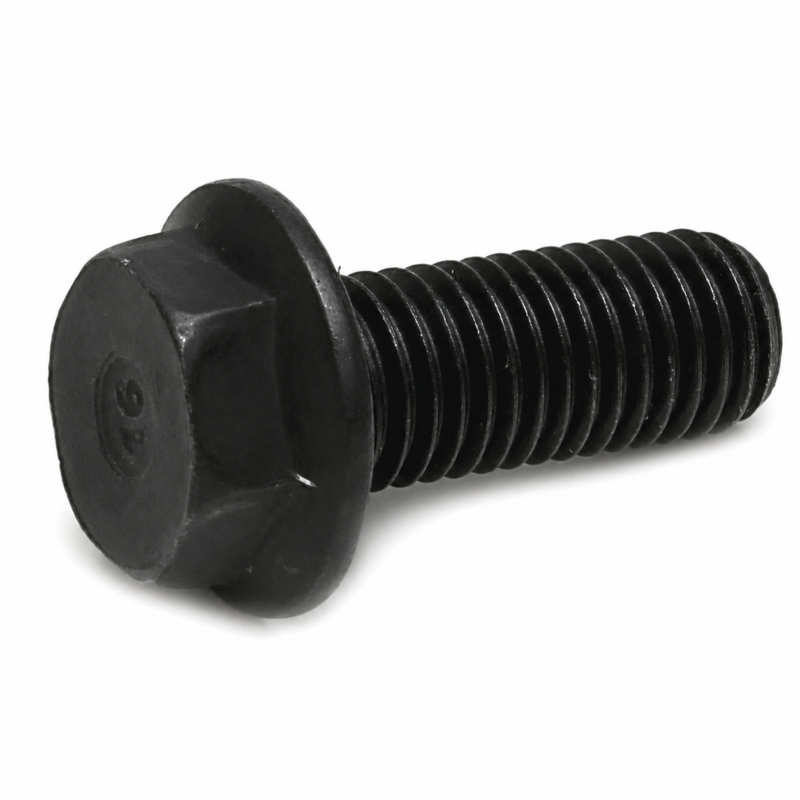

The fifth wheel king pin screw secures compatible king pin and retention plate assemblies beneath the semi-trailer rubbing plate. Its M14 x 2 thread, 35mm under-head length and grade 10.9 strength specification are critical when matching this highly loaded coupling fastener.

Features

• M14 x 2 metric thread
• 35mm length below the head
• Grade 10.9 high-tensile fastener
• Flanged hex head with 19mm spanner size

Specifications and Materials

This flanged steel screw has a 45.5mm overall length, 27mm maximum head diameter and 35mm threaded length below the head. The grade 10.9 specification must be maintained when replacing a king pin mounting fastener.

Part number: 102.895.

See the JOST king pin component guide

Compatibility and Fitment

Match the M14 x 2 thread, 35mm under-head length, flange profile, hex size and grade marking before installation. This screw suits compatible KZ 1008, KZ 1010, KZ 1012, KZ 1410 and KZ 1412 king pin assemblies. Do not substitute a lower-strength general-purpose bolt.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. M5481, 1357737, 89876, 250099, 254167, KZE 1012-03, KZE101203, 03436, 090.822-00A, 09082200A, 9.69220, 969220

Related Parts

Check the related king pin assemblies below against the trailer setup before ordering.

Compliance and Safety

Inspect the mating threads, retention plate and king pin mounting face before installation. Replace the screw if its threads, flange or grade marking are damaged. Tighten the complete fastening arrangement evenly to the king pin manufacturer’s specified torque using a calibrated torque wrench.

Trailer Applications

Workshops fit this fifth wheel king pin screw to compatible semi-trailer king pin mounting assemblies, including identified TRAILOR applications and systems matching the listed DAF, Kögel and Schmitz Cargobull references.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
