Description

Overview

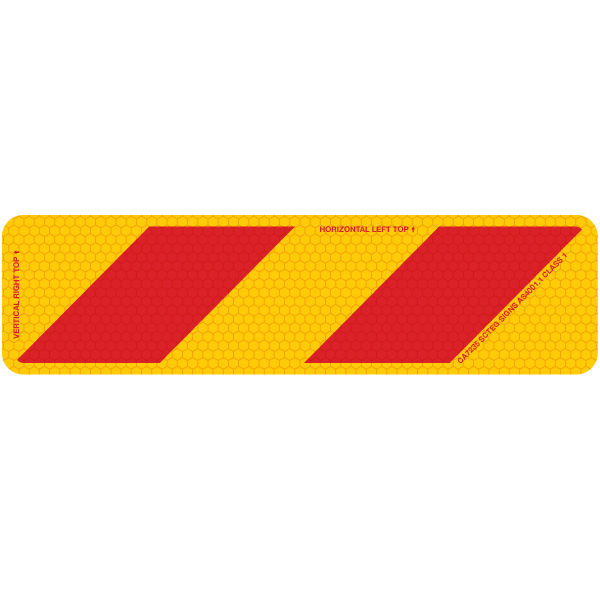

Zebra Left-Hand Rear Reflective Sign 400x100mm is a compact rear marker plate designed to make the left rear edge of a trailer easier to see in low light. It suits operators who need a durable, rigid plate that mounts cleanly and stays readable over long outdoor service. Because the plate is reflective, it helps other road users judge the trailer’s width and position sooner.

Features

• Pre-drilled mounting holes so you can attach it quickly to a suitable bracket or rear structure
• Class 1 retroreflective finish to support night-time conspicuity
• Aluminium plate construction that stays light while remaining rigid
• UV fade protection and a high-resolution print so the markings stay clear

Specifications and Materials

Size: 400 x 100mm.

Colour: Red and yellow zebra pattern.

Material: Aluminium plate.

Reflective class: AS 4001.1 Class 1.

Part number: CA7235.

For regulatory background on rear marking plates, see WA Department of Transport rear marking plates guidance

Compatibility and Fitment

Fit the plate to the rear left-hand side of the trailer so the zebra bands face the correct direction and remain unobstructed. When you replace a damaged plate, Zebra Left-Hand Rear Reflective Sign 400x100mm helps you keep the rear marking consistent in size and orientation. Also, check your fastener choice and surface condition so the plate sits flat and does not vibrate loose in service.

Compliance and Safety

This plate is marked as AS 4001.1 Class 1, which is commonly specified for retroreflective rear marker plates on heavy vehicles. Requirements vary by jurisdiction and vehicle class, so confirm placement and orientation before installation. For example, WA notes that vehicles over 12,000kg GVM and trailers over 10,000kg GTM must be fitted with retro-reflective rear marking plates, and correct fitment matters for compliance.

Trailer Applications

Zebra Left-Hand Rear Reflective Sign 400x100mm is commonly used on semi-trailers, dog trailers, B-doubles, and other heavy trailer combinations where rear conspicuity matters. It can also suit rigid-bodied trailers and specialty builds when you need a compact left-side rear marker plate that mounts to a flat surface.

Why Choose ICS Trailers

You get a trailer-focused range and product support that helps you select the right safety signage the first time. If you are matching an existing plate set, we can help you confirm side, size, and mounting style before you order. In addition, you can bundle other safety gear and hardware in one checkout, which simplifies workshop prep.
