Description

Overview

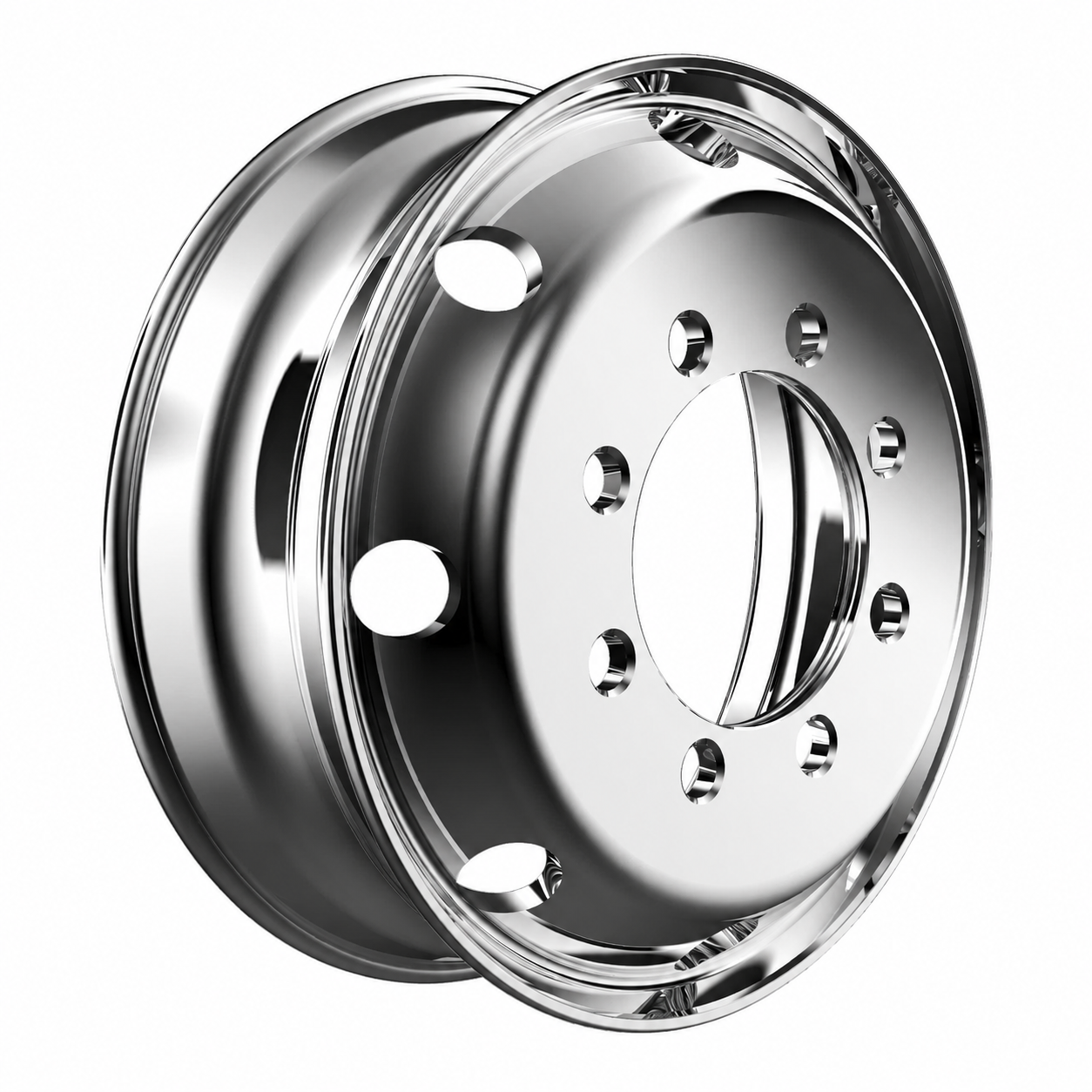

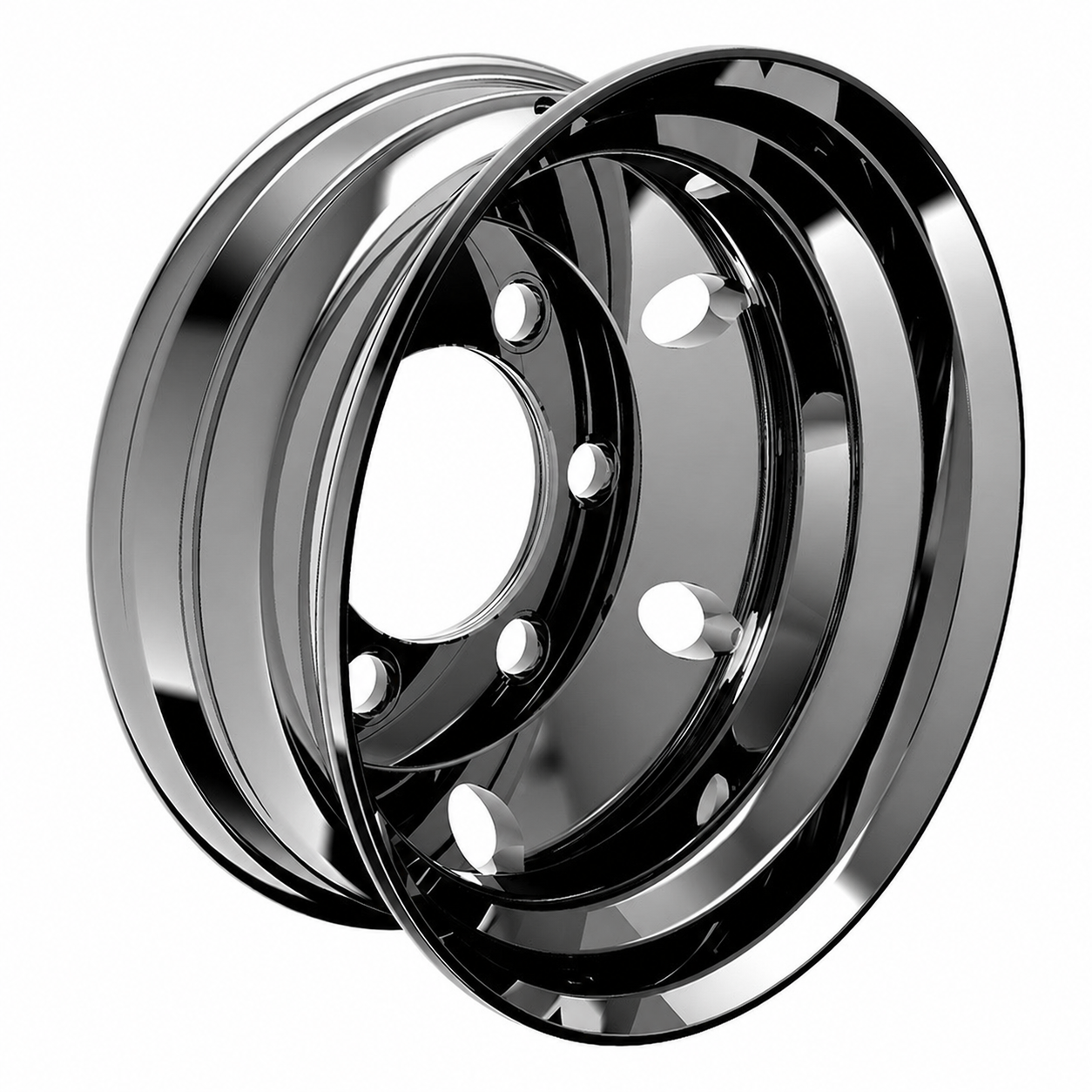

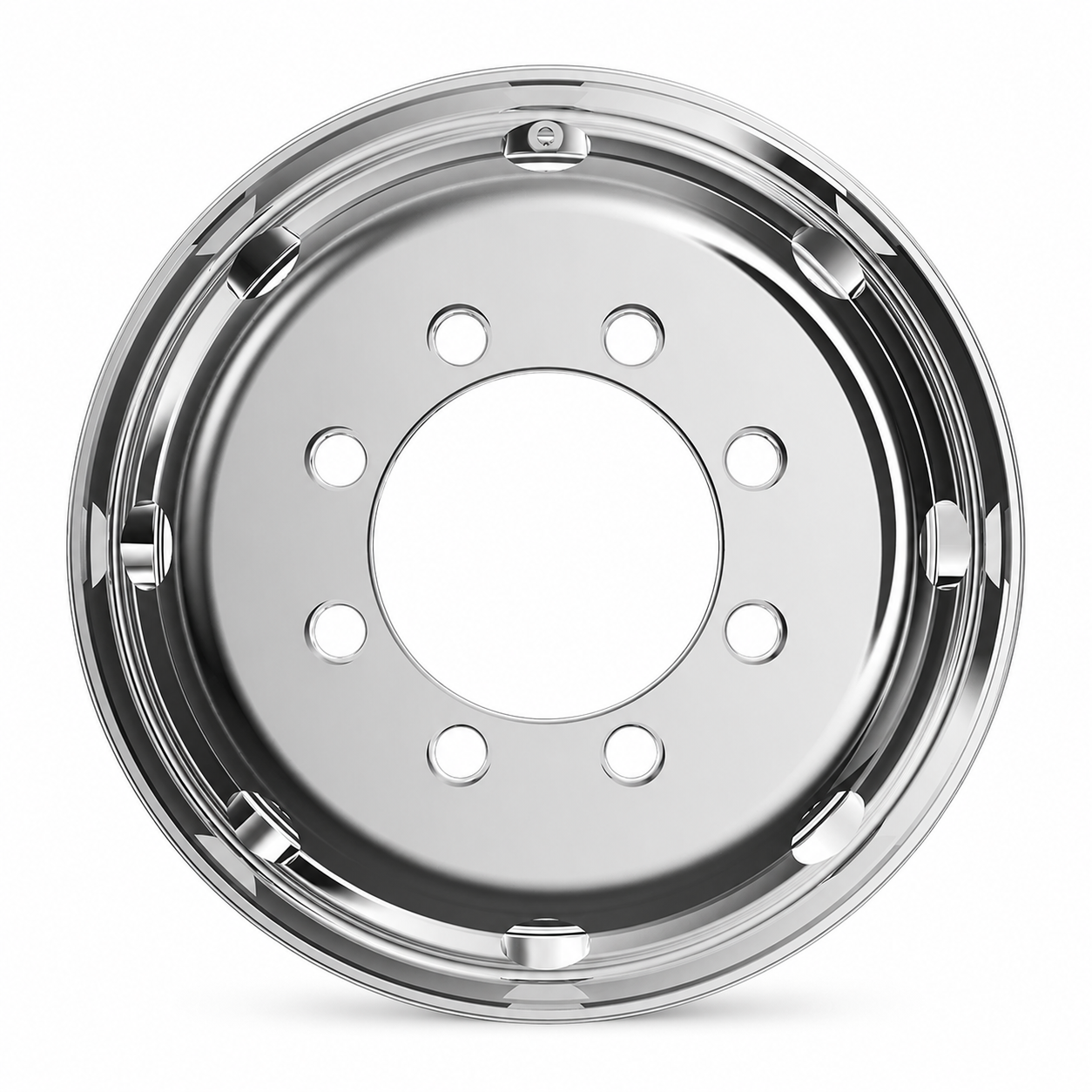

Aluminium truck trailer rim 19.5 x 8.25 supports heavy trailer wheel fitment where an 8-stud ISO pattern and 275mm PCD are required. The forged aluminium construction gives operators a lighter wheel option for commercial truck, trailer and bus service.

Features

• 19.5 x 8.25 rim size for matching commercial truck and trailer tyre fitment.
• 8-stud ISO pattern with 26.5mm bolt holes and 275mm PCD.
• 221.2mm centre bore with 167mm offset for matching hub-piloted applications.
• Forged aluminium wheel with 3150kg load rating.

Specifications and Materials

This aluminium truck trailer rim uses forged aluminium construction for heavy vehicle wheel service. It measures 19.5 x 8.25 and matches 8-stud, 275mm PCD, 221.2mm centre bore applications with 167mm offset.

Part number: 19.5/8.25AL8MACH.

Use the manufacturer wheel specification guide when checking rim size, PCD, centre bore, offset and load rating.

Compatibility and Fitment

Confirm the rim diameter, width, stud count, bolt hole diameter, PCD, centre bore and offset before ordering. Also match the load rating, valve type, tyre size and wheel nut setup to the trailer axle and tyre supplier guidance before fitting.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 195825001

Compliance and Safety

Inspect the rim seat, mounting face and stud holes before installation. When fitting the wheel, clean the hub face, use the correct wheel nuts, and tighten to the vehicle or axle manufacturer procedure.

Trailer Applications

Workshops use an aluminium truck trailer rim on heavy trailers, buses and commercial vehicles where lower wheel weight and alloy wheel construction matter. For trailer service, check every wheel position against the hub and axle setup rather than relying on diameter alone.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
