Description

Overview

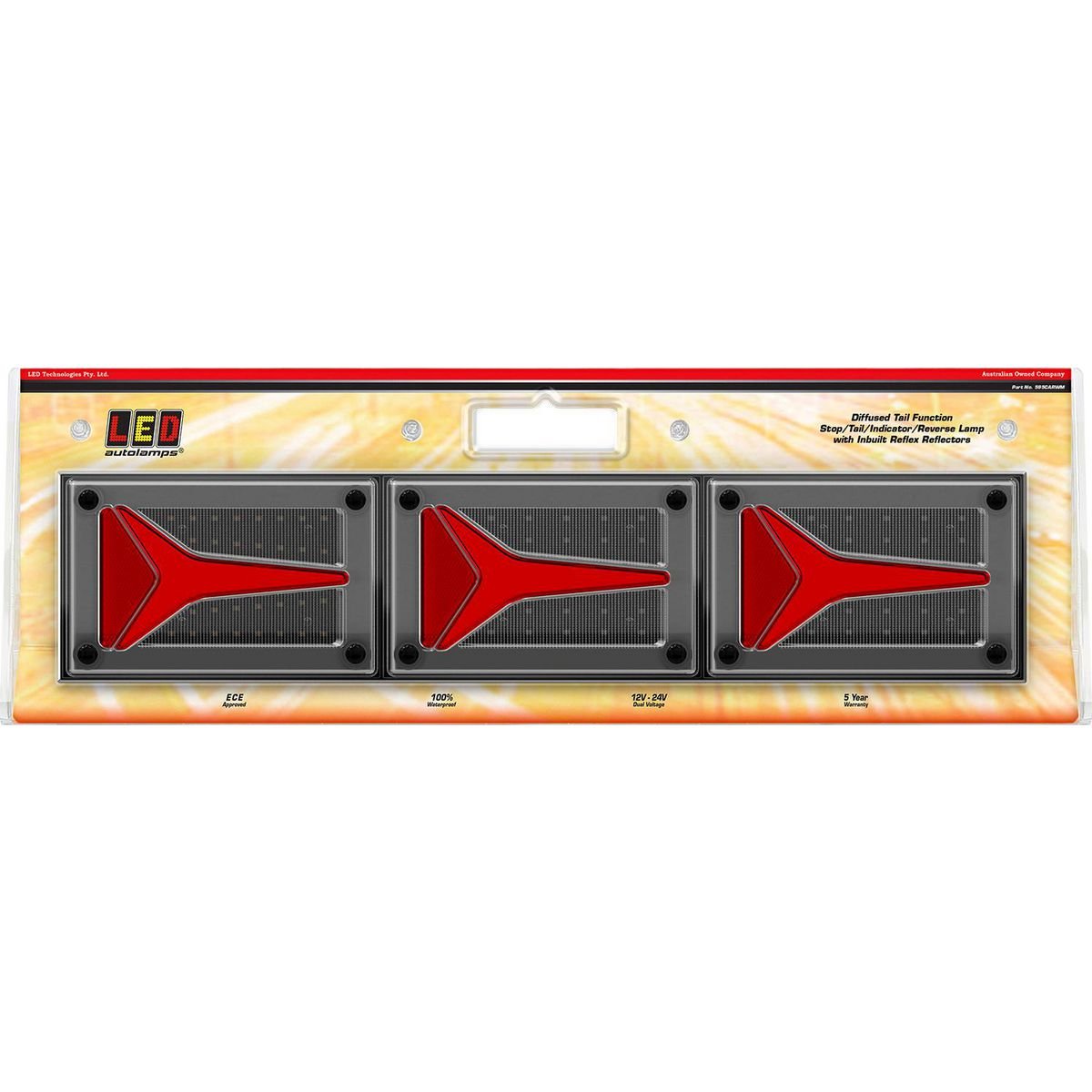

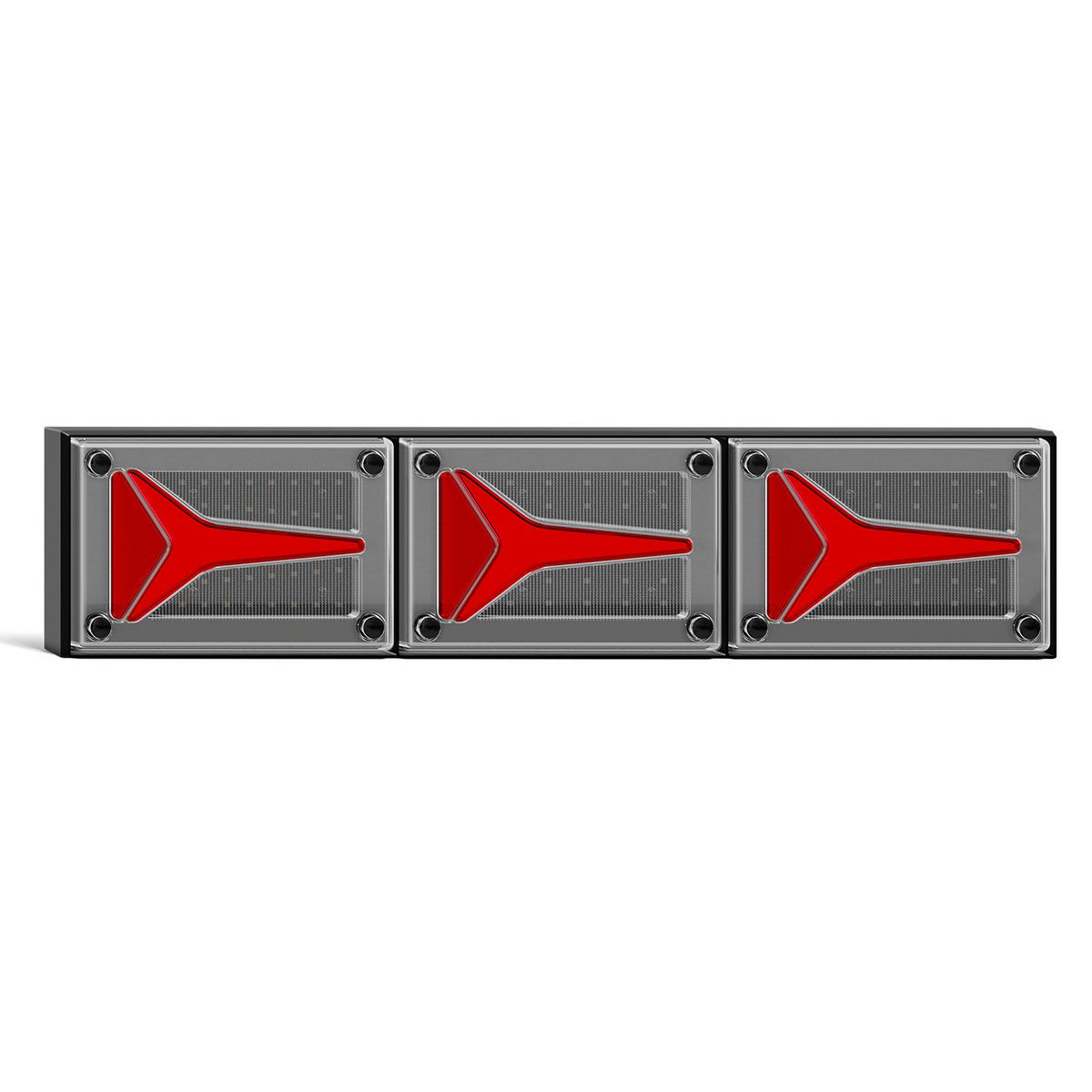

Stop tail indicator reverse lamp combines rear stop, tail, indicator, reverse and reflector functions in one jumbo rear combination lamp. The clear lens and chrome finish suit trailer and truck rear lighting setups where one large lamp needs to cover multiple road lighting functions.

Features

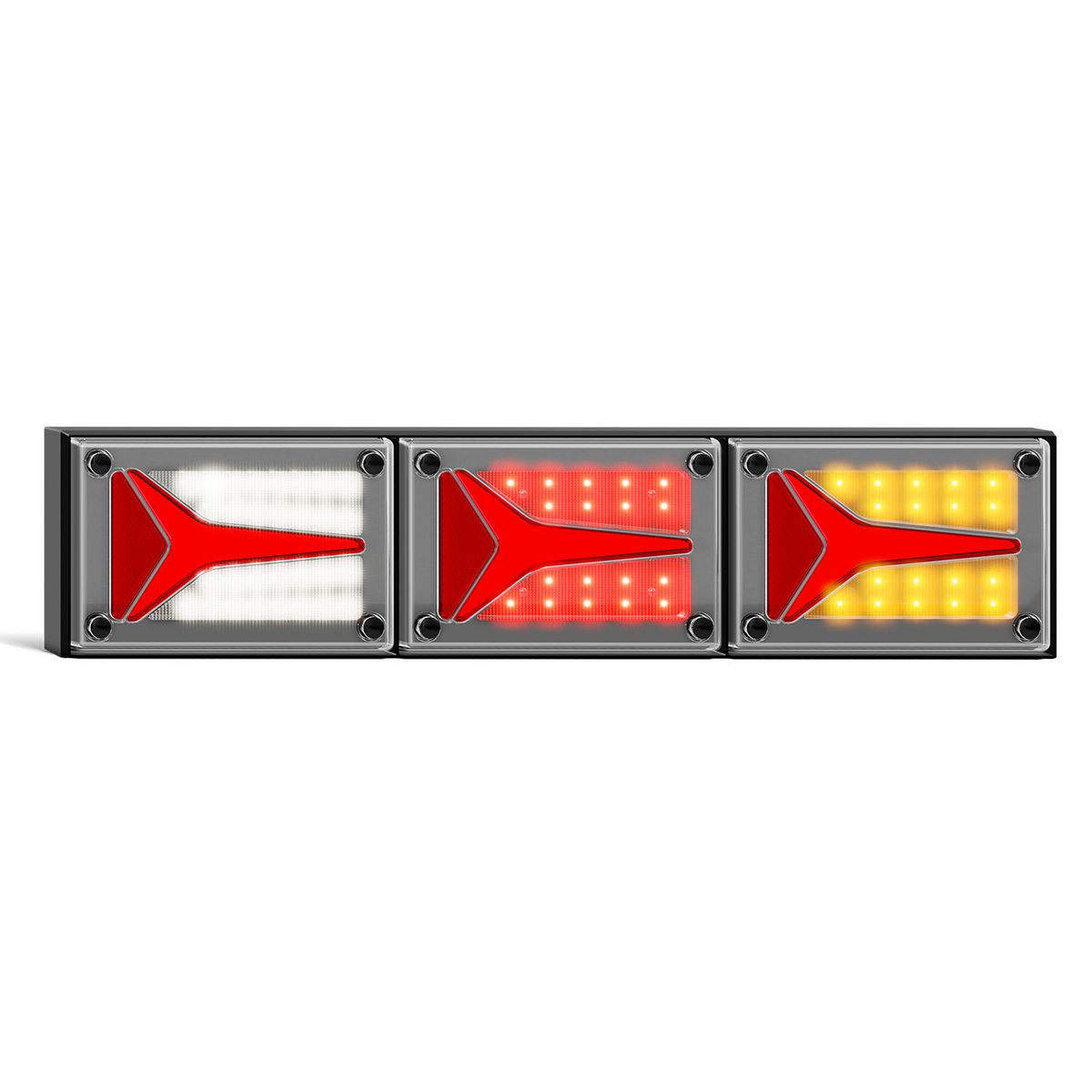

• 111 LED rear combination lamp with diffused tail function
• 12/24V multivolt operation for trailer and truck electrical systems
• Clear lens and chrome style housing for a clean rear body finish
• IP67 rated lamp body with ECE approved lighting functions

Specifications and Materials

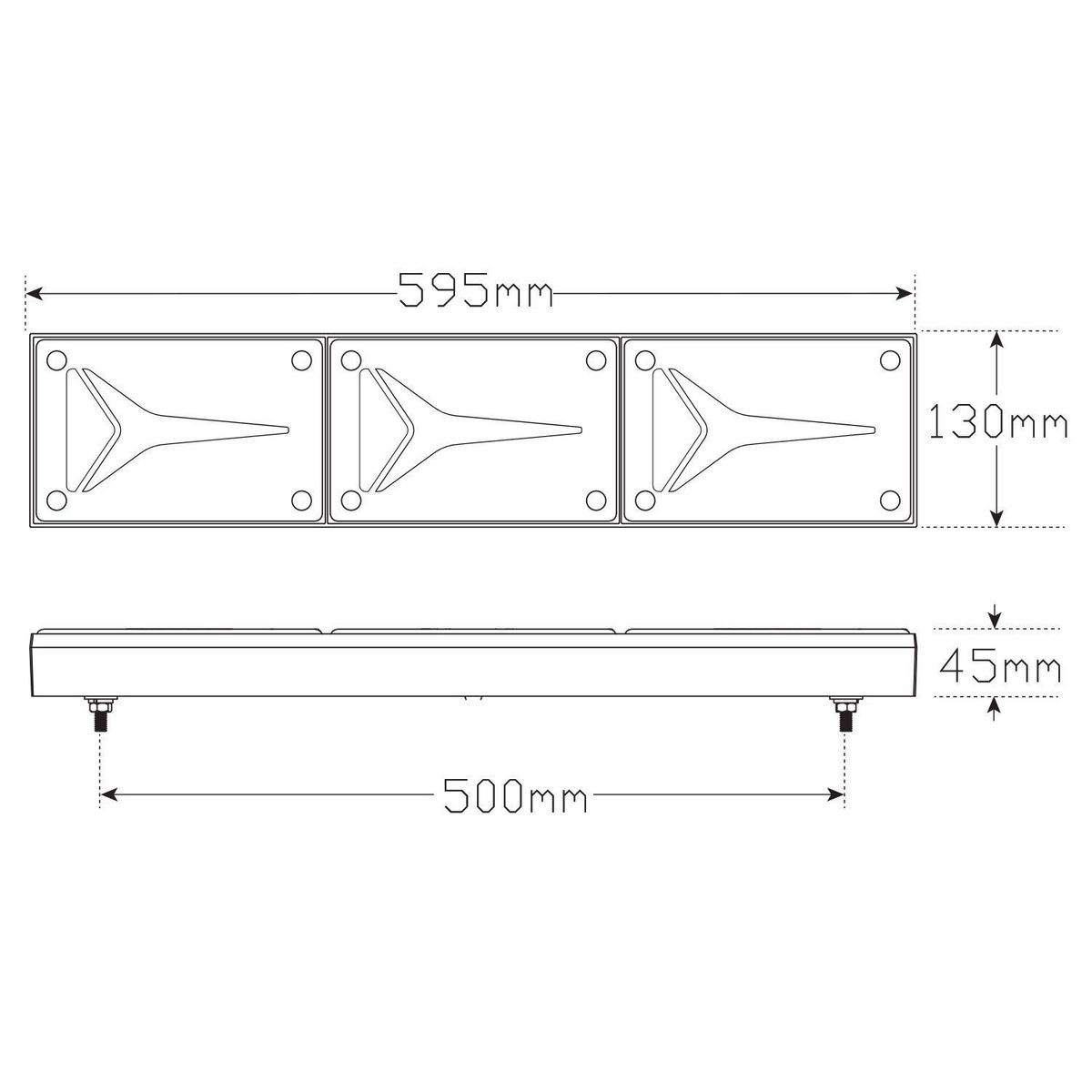

This lamp measures 595mm x 130mm x 45mm and includes a 40cm cable. It uses a PMMA lens and ABS base, with stainless steel bolts supplied for horizontal surface mounting.

Part number: 595CARWM.

Current draw for the ARW layout is 0.26A stop, 0.78A tail, 0.25A indicator and 0.34A reverse at 13.8V. At 28V, draw is 0.12A stop, 0.40A tail, 0.12A indicator and 0.16A reverse.

See the manufacturer technical guide

Compatibility and Fitment

Match this lamp to the rear combination lamp position, mounting footprint and 12/24V wiring setup before ordering. Mount it horizontally on a flat surface, run the cable through a 12mm hole and keep the tail function arrows pointing outwards from the vehicle.

Related Parts

Check the related versions below against the trailer setup before ordering.

Compliance and Safety

Check stop, tail, indicator, reverse and reflector positions after installation. Also confirm the wire colours before connecting the loom, because the lamp uses red for stop, brown for tail, yellow for indicator, black for reverse and white for earth.

Trailer Applications

Workshops fit this lamp assembly on truck bodies, trailers, tray bodies and large caravan rear panels. This jumbo lamp suits refits where the rear lighting needs a wide combination unit with reverse lighting built into the same assembly.
