Description

Overview

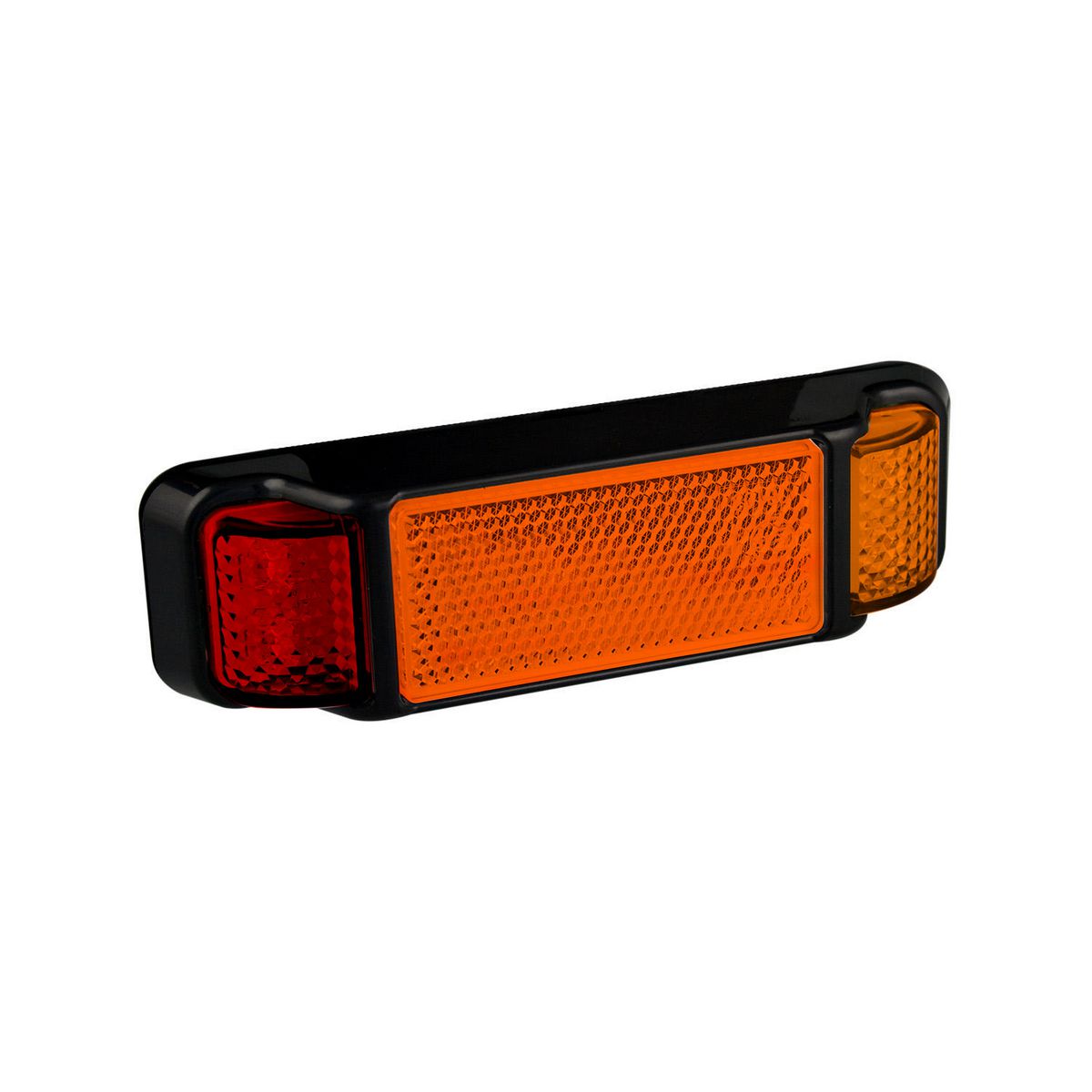

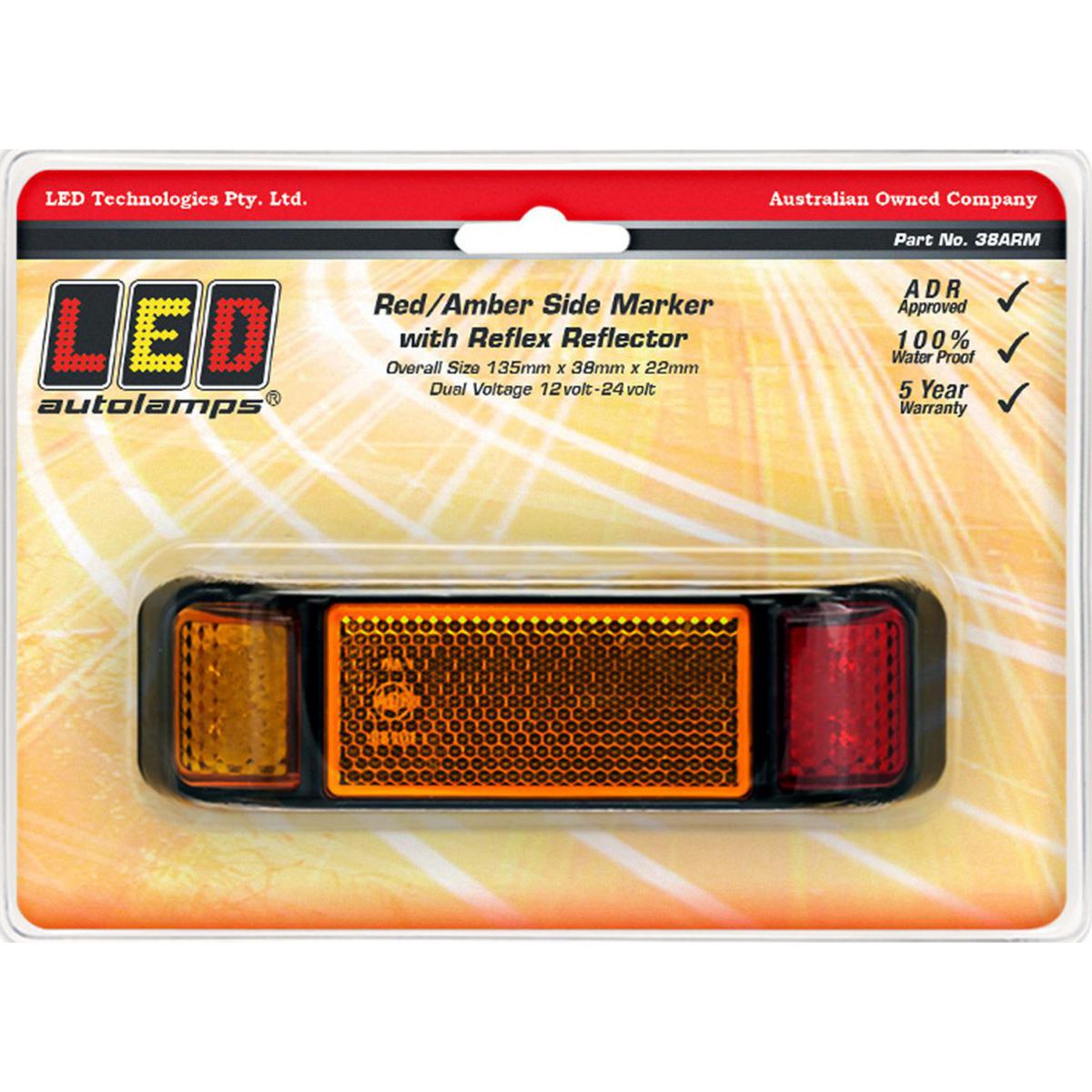

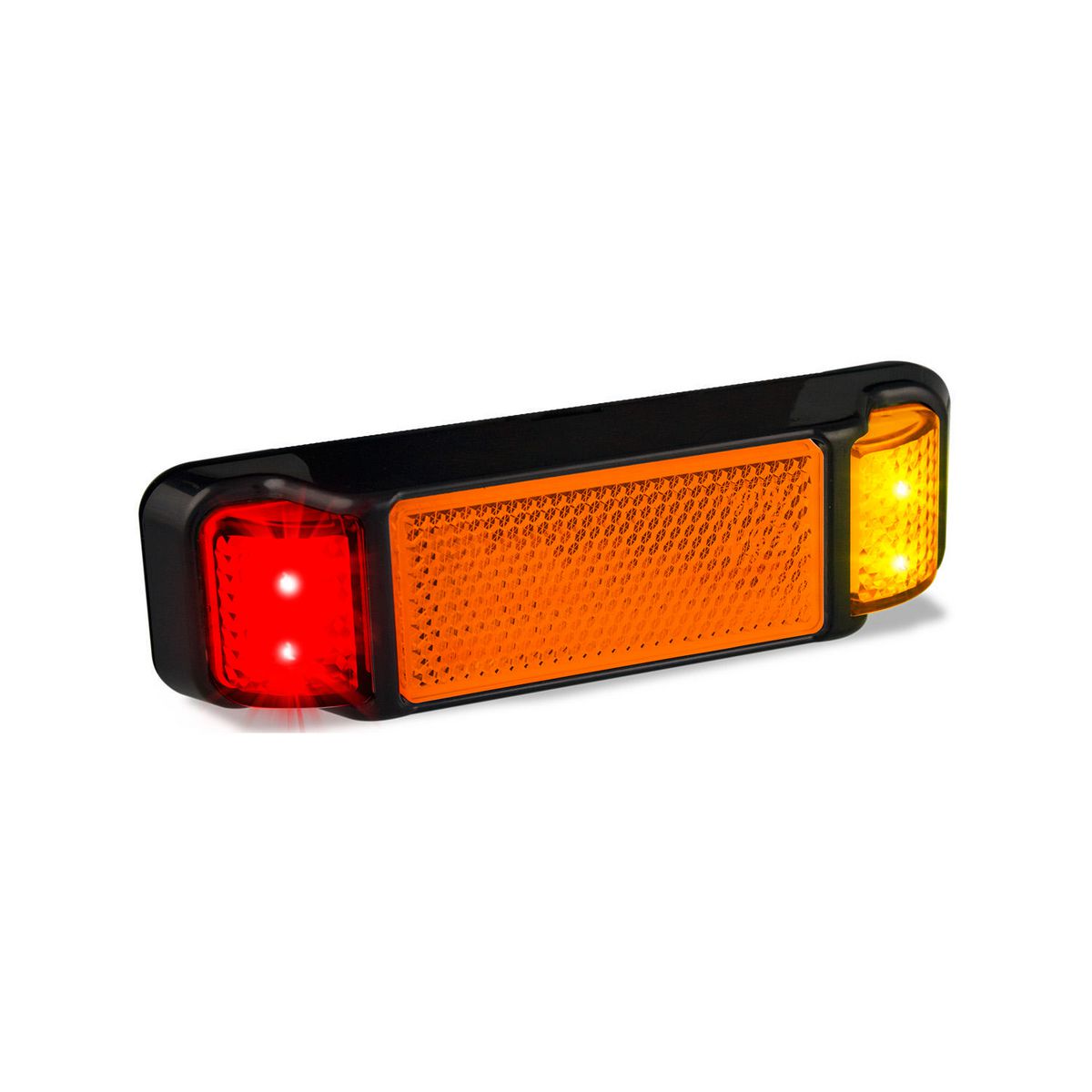

Red amber LED side marker light delivers side visibility and reflector coverage in one slim unit for 12-24V trailers. The low-profile body sits neatly along the trailer side, while the sealed housing suits regular road and fleet service where space around the body line stays tight.

Features

• Combination side marker and reflector in one compact lamp.
• 12-24V multivolt operation for mixed trailer fleets.

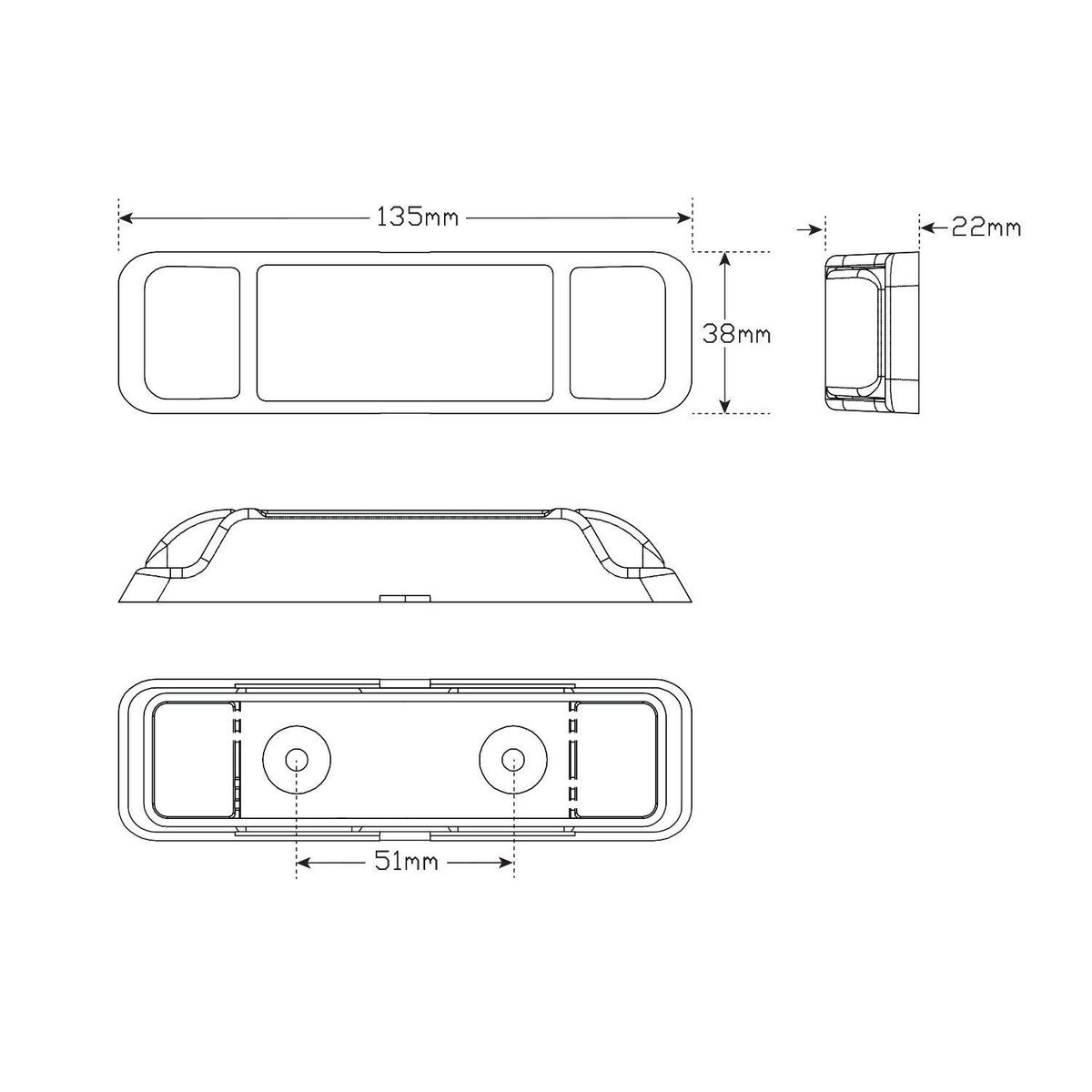

• Low-profile 135mm x 38mm x 22mm body.
• ADR approved, IP67 rated, and backed by a 5 year warranty.

Specifications and Materials

This red amber LED side marker light uses a PMMA acrylic lens over an ABS base, so it keeps the lamp body compact while handling trailer lighting duty. It combines marker and reflector functions in one housing for side mounting service.

Part number: 38ARM.

Official 38 Series specification sheet

Compatibility and Fitment

Check body clearance, mounting surface, and system voltage before ordering. This lamp suits horizontal surface mounting where a side marker and reflex reflector need to share one housing. The slim size helps when the lamp needs to sit neatly along side rails, guards, body edges, or similar mounting points.

Compliance and Safety

Mount the lamp horizontally on a flat surface, secure the wiring path through the rear entry, and make sure the bezel clips fully into place. Also confirm the reflector stays visible and the lamp operates correctly before the trailer goes back into service.

Trailer Applications

Workshops fit this red amber LED side marker light on trailers, semitrailers, dollies, vans, and other heavy-vehicle bodies that run 12-24V lighting. It suits replacement work where a slim sealed lamp needs to sit close to the body line without giving up reflector coverage.

Why Choose ICS Trailers

When you need a compact side marker that also covers the reflector function, this lamp keeps the install neat and the parts choice straightforward. The multivolt design and sealed low-profile housing suit everyday trailer lighting repairs.
