Description

Overview

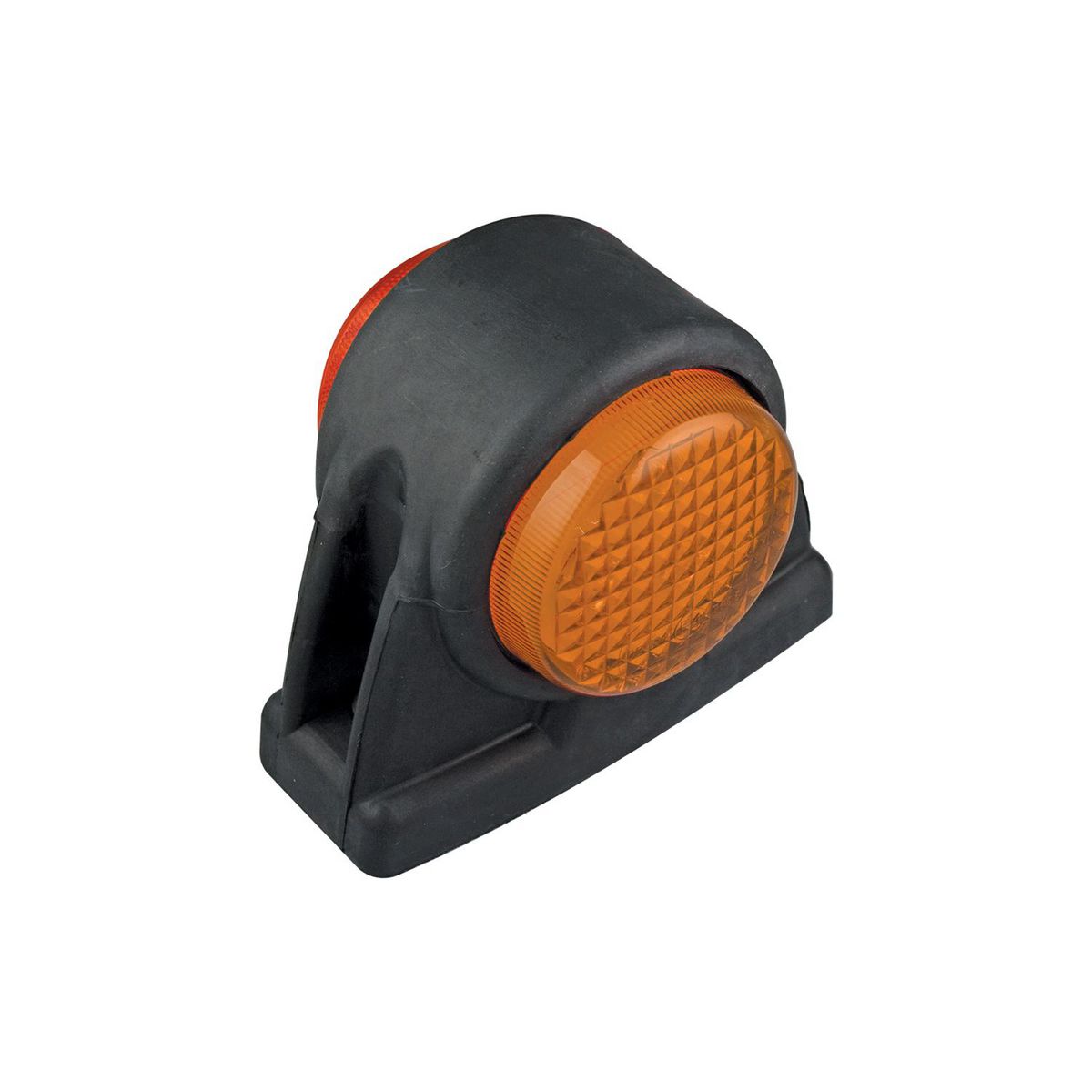

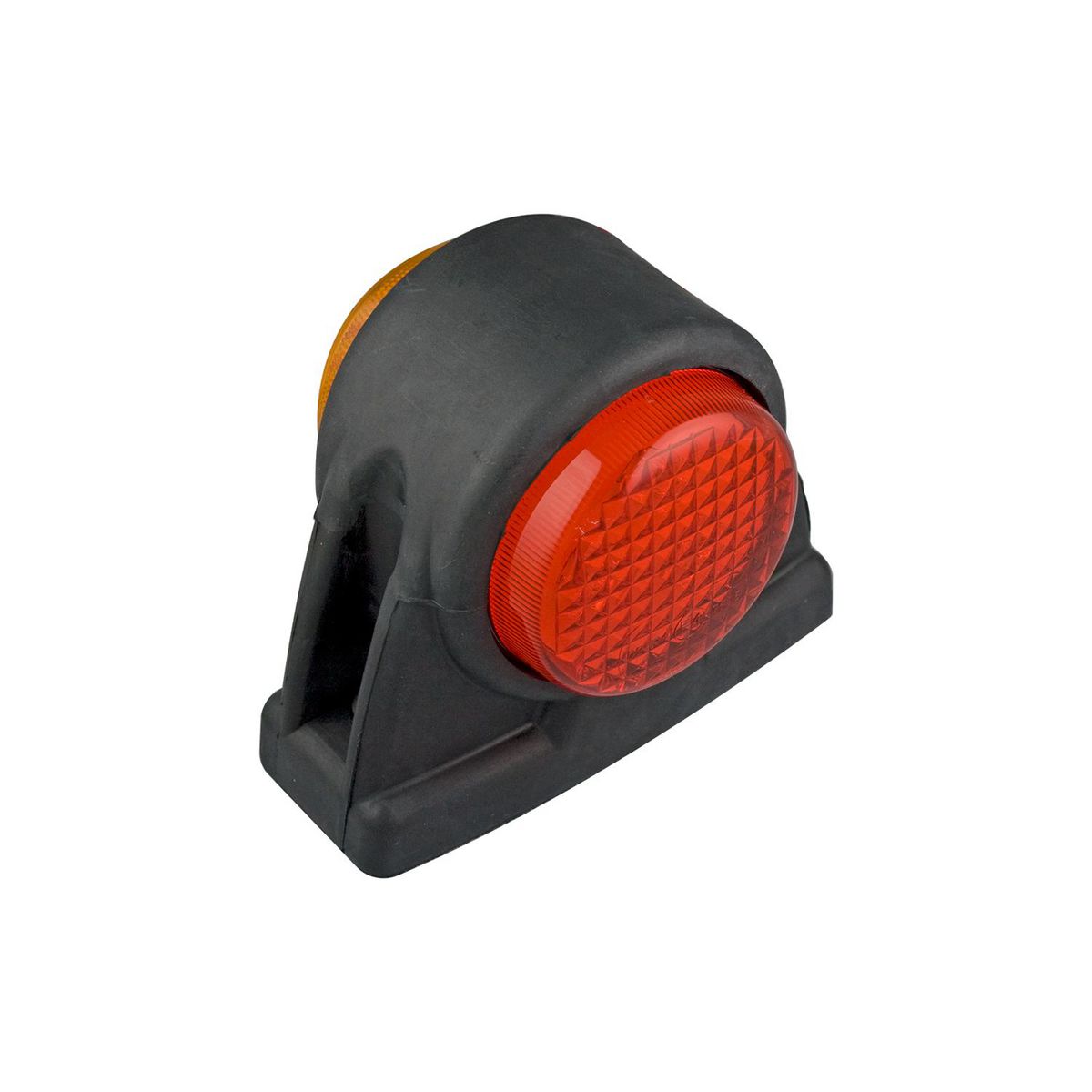

Red amber LED side marker lamp supports side visibility on trailers, tray bodies and heavy vehicle bodywork. The rubber housing suits exposed side mounting, while the amber and red lens layout helps mark the vehicle side profile correctly when the lamp faces the right direction.

Features

• Red and amber side marker function in one lamp
• 12-24V operation for mixed trailer and vehicle systems
• Rubber base with PMMA acrylic lens
• IP67 rated body with ADR and CTA side marker approval

Specifications and Materials

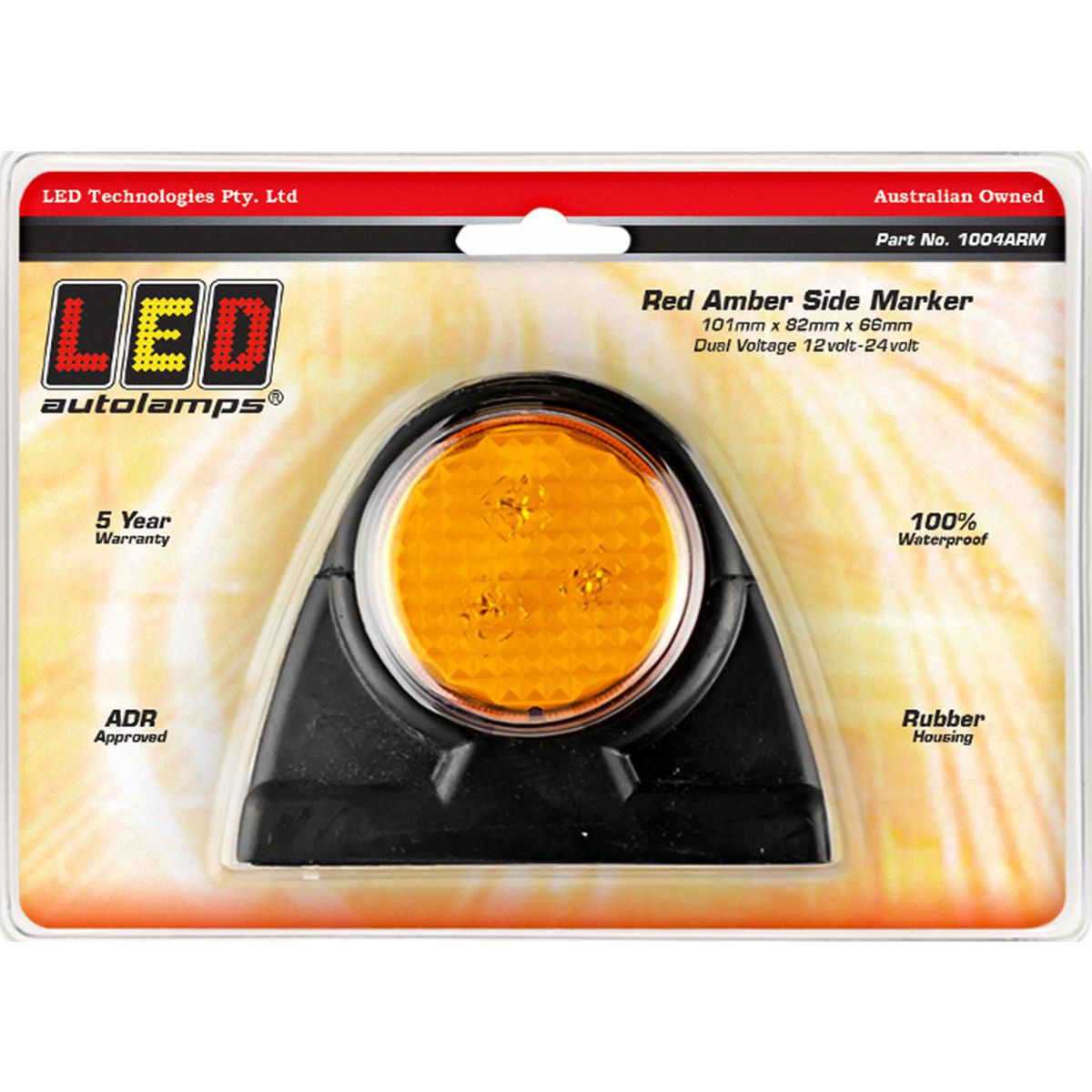

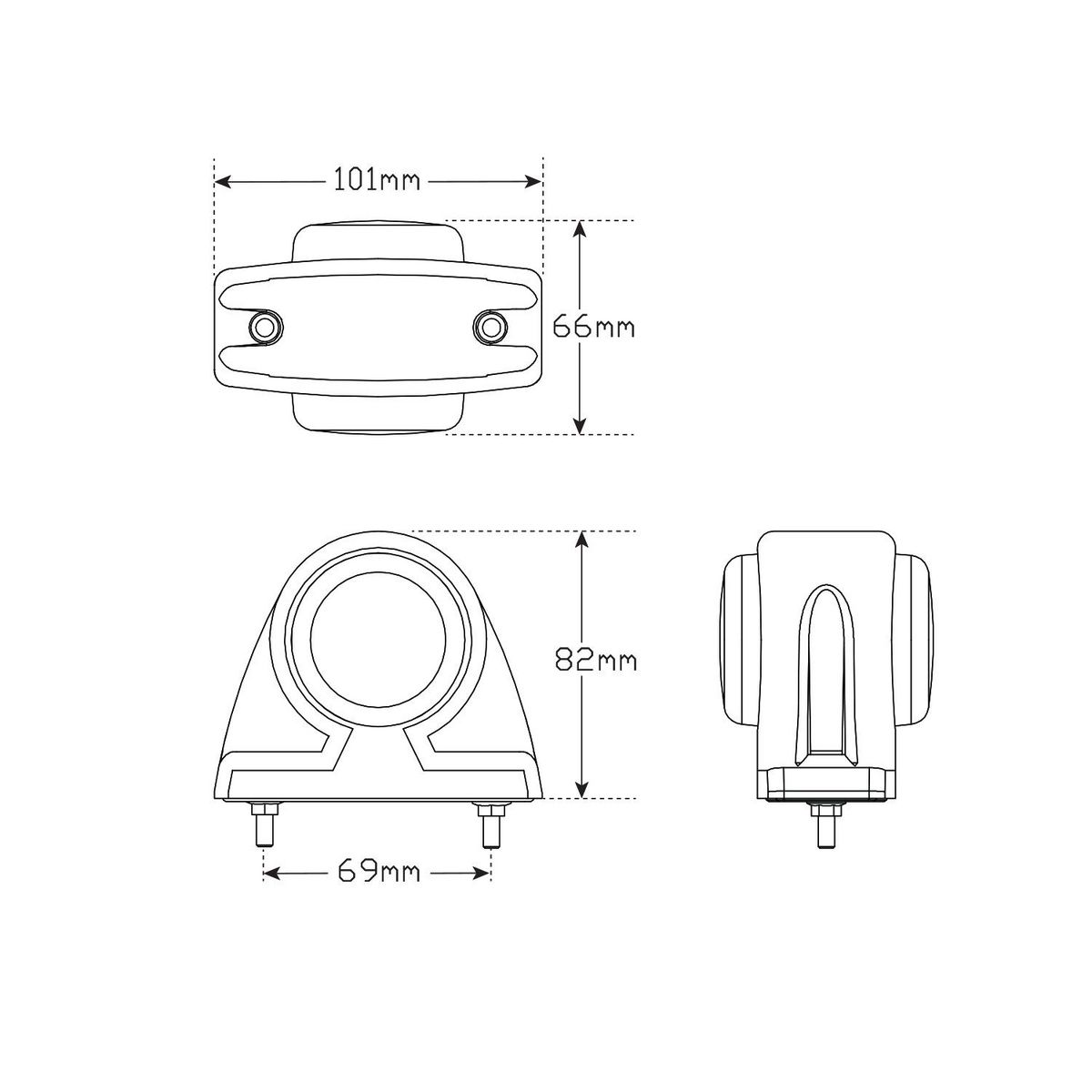

This red amber LED side marker lamp measures 101mm × 82mm × 66mm and uses 6 LEDs with a 40cm cable. It draws 0.03A red and 0.06A amber at 13.8V, then 0.04A red and 0.04A amber at 28V. Part number: 1004ARM.
See the manufacturer 1004 Series marker lamp data

Compatibility and Fitment

Fix the lamp to a flat surface using the supplied bolts, then position the amber side facing forward and the red side facing to the rear. Also check the cable route before drilling, because the 40cm lead needs a clean path back into the trailer or body wiring.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the side marker position and orientation before returning the trailer to service. If the rubber body, lens or cable shows damage, replace the lamp before road use so the side marker remains visible and secure.

Trailer Applications

Body builders and repairers fit this red amber LED side marker lamp to trailer sides, tray bodies, rigid bodies and commercial vehicle bodywork. Because it combines red and amber side marker output, it suits side locations where the lamp needs to show amber forward and red rearward.

Why Choose ICS Trailers

ICS Trailers supplies marker lamps, cable, plugs and trailer electrical parts for repairs and body builds, so this lamp can be matched with the surrounding wiring parts for the same job. Browse more trailer lighting parts in LED Lights
