Description

Overview

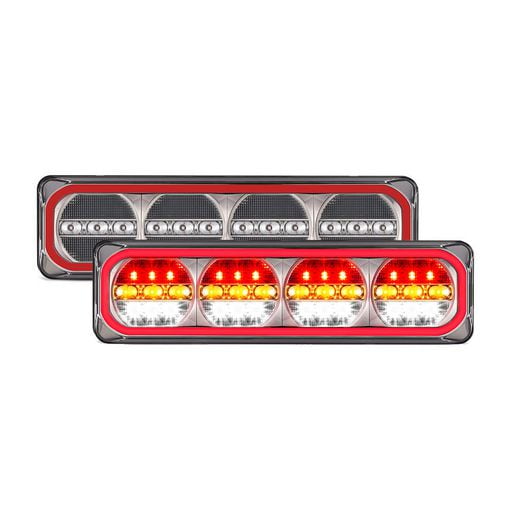

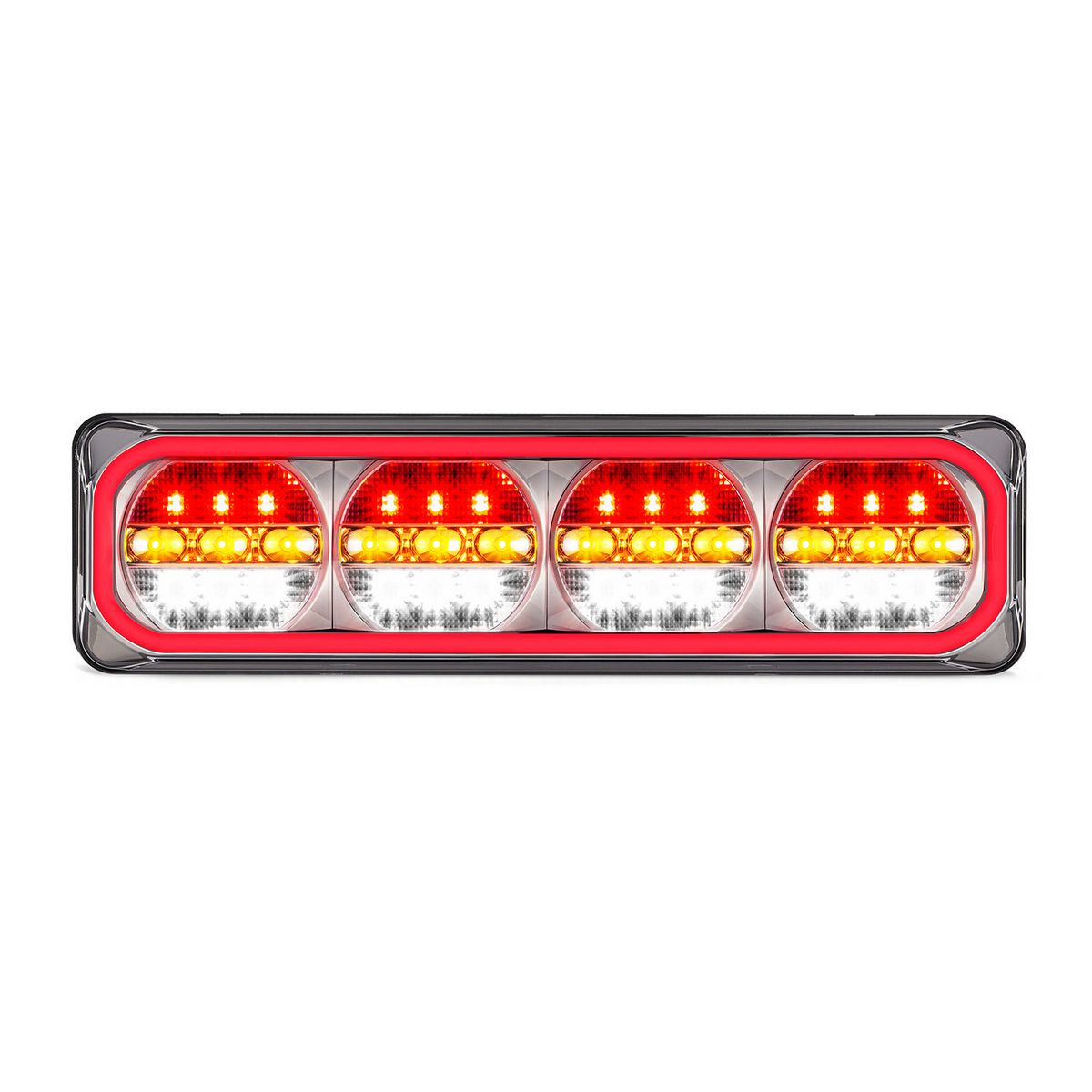

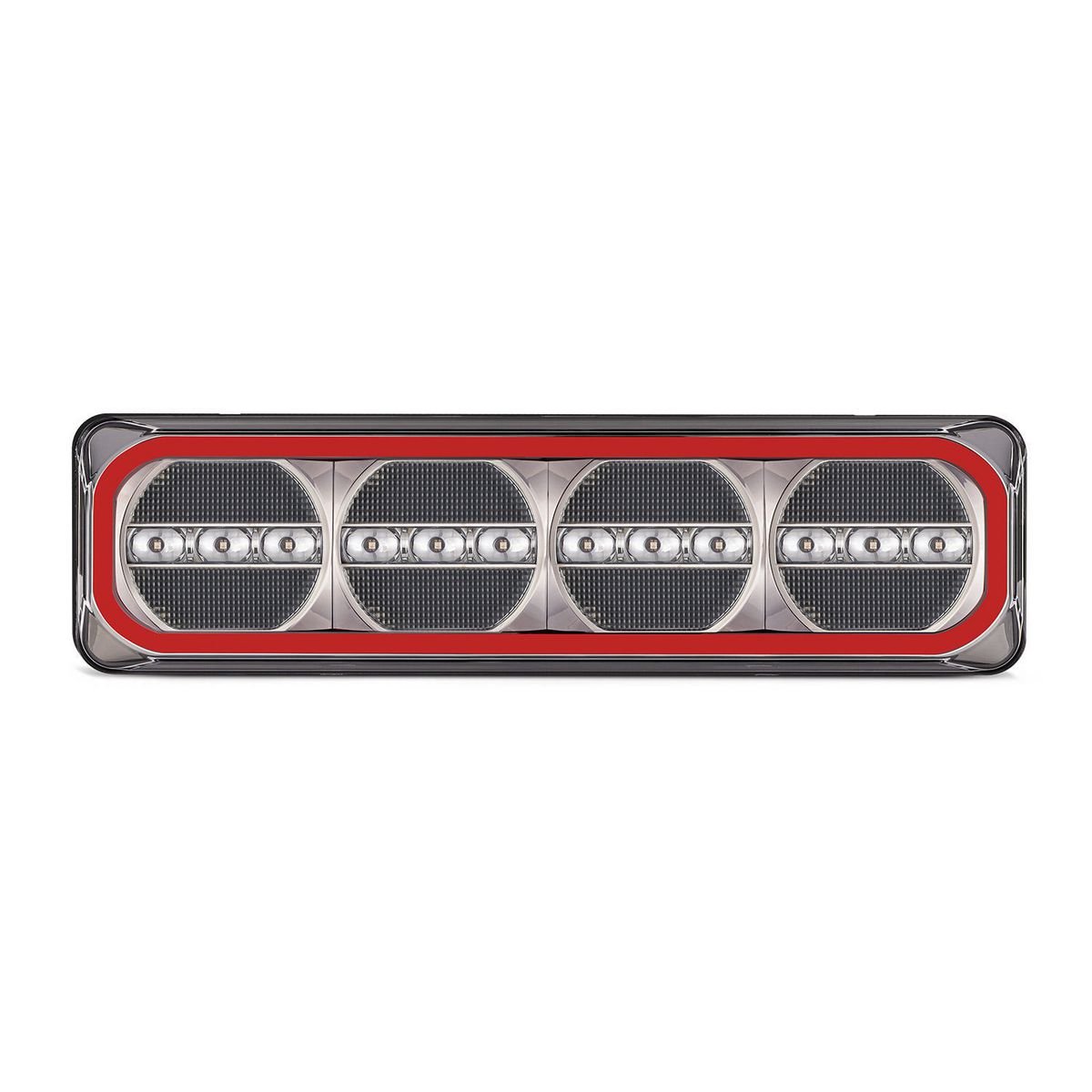

Rear combination lamp with sequential indicator restores stop, tail, indicator and reverse lighting in one compact rear lamp assembly. The twin pack gives you a matched pair for trailer repairs, new builds and rear light upgrades where a slim rectangular lamp suits the job.

Features

• Stop, tail, indicator and reverse functions in one lamp body
• Sequential indicator and diffused tail function for a cleaner rear light pattern
• 12-24V multivolt operation with a 40cm bare wire lead
• PMMA lens and ABS base with IP67 protection

Specifications and Materials

This rear combination lamp with sequential indicator measures 387mm x 105mm x 30.5mm and runs on 12-24 multivolt systems. It carries 112 LEDs in the ARW configuration, while the bare wire lead gives installers flexibility during trailer wiring and rear lamp replacement work.

The wire colour code uses brown for tail, red for stop, yellow for left indicator, green for right indicator, black for reverse and white for earth.

Part number: 385ARWM-2.

See the official 385 Series technical sheet

Compatibility and Fitment

Match the lamp size, voltage range and wiring layout before ordering. Also confirm you need stop, tail, indicator and reverse functions in the one housing, because this twin pack uses bare wire leads rather than plug-ended connections.

Compliance and Safety

ECE and CTA approvals support road-going trailer use when the lamp is mounted and wired correctly. Mount the base plate horizontally on a flat surface, then clip the lamp body into place and test every function before the trailer returns to service.

Trailer Applications

Workshops fit this rear combination lamp with sequential indicator to trailers, service bodies and rear panels that need a compact multivolt lamp with reverse function included. It also suits replacement jobs where both rear lamps need to match in shape, light pattern and mounting style.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repairs, replacement work and fresh builds, so you can buy a matched rear lamp pair instead of piecing together separate lights.
