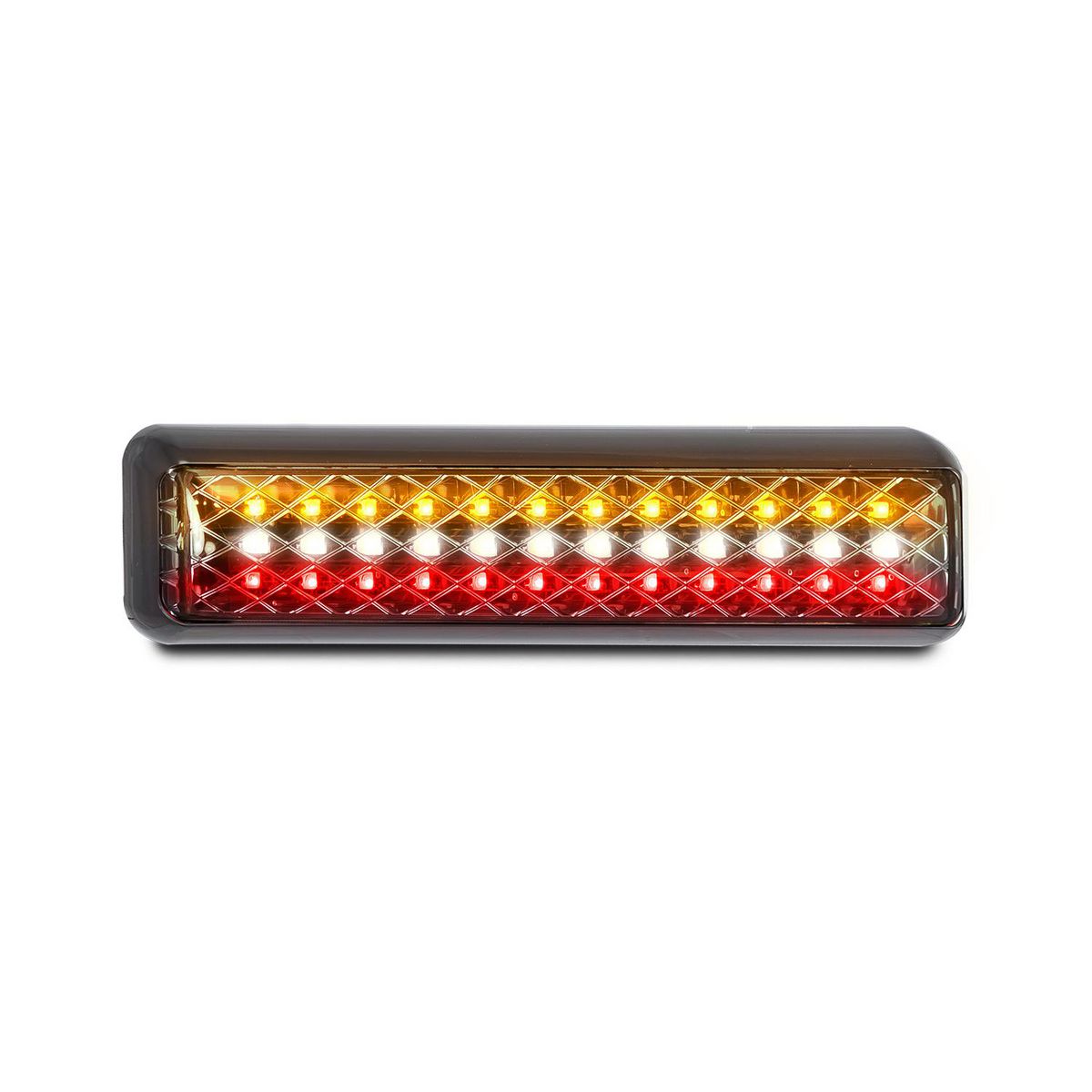

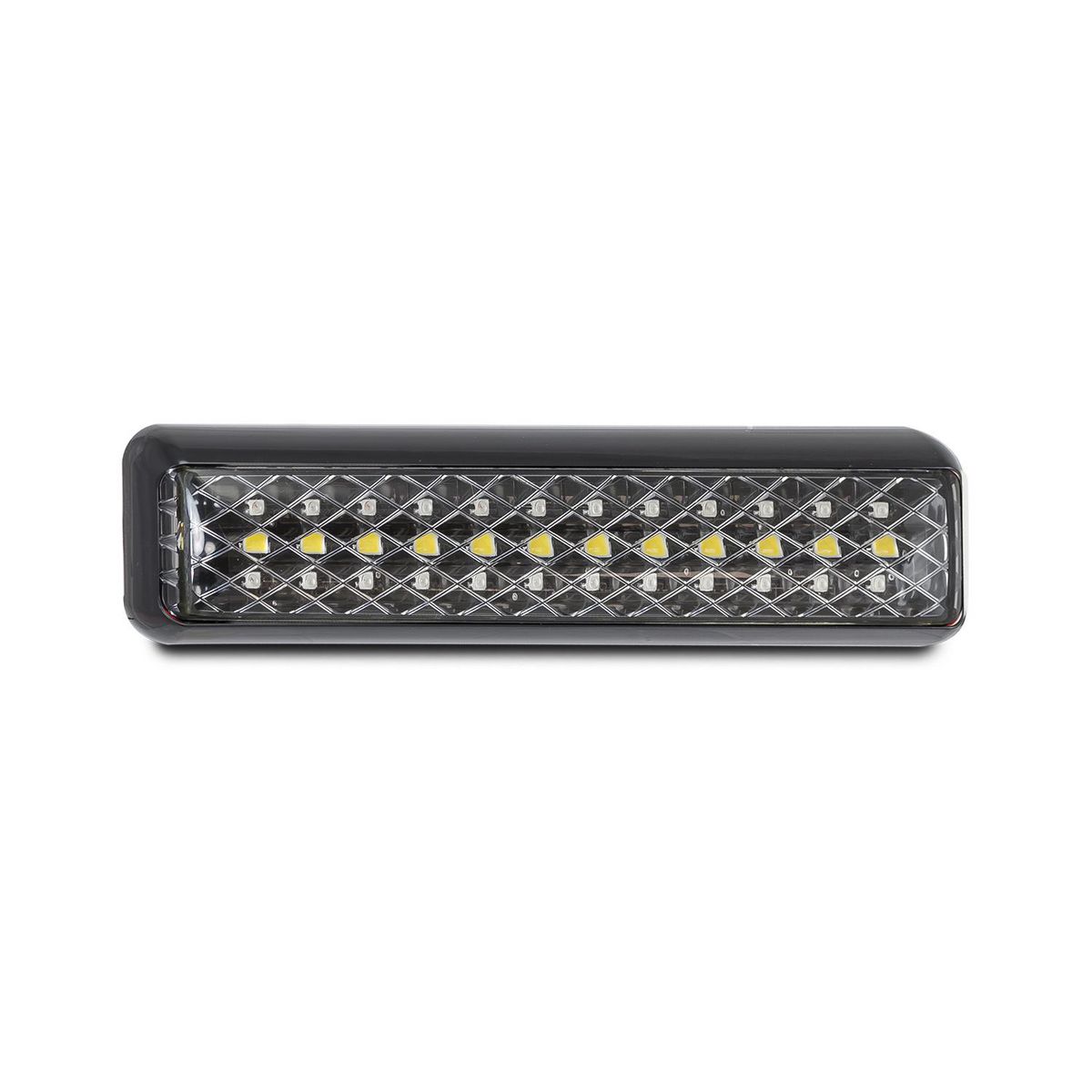

12/24V LED stop tail indicator reverse lamp gives trailers, trays and truck bodies a compact rear combination lamp with four rear lighting functions in one rectangular body.

The 200 Series body suits rear lamp replacement where stop, tail, indicator and reverse functions need to stay in one low-profile lamp. Also, the clip-in lens design helps with service access when the lens or bracket area needs attention.

Features

• Stop, tail, indicator and reverse functions in one rear combination lamp
• 12-24V multivolt operation for mixed vehicle and trailer systems
• 36 LED layout with 40cm cable
• IP67-rated low-profile body with clip-in lens design

Specifications and Materials

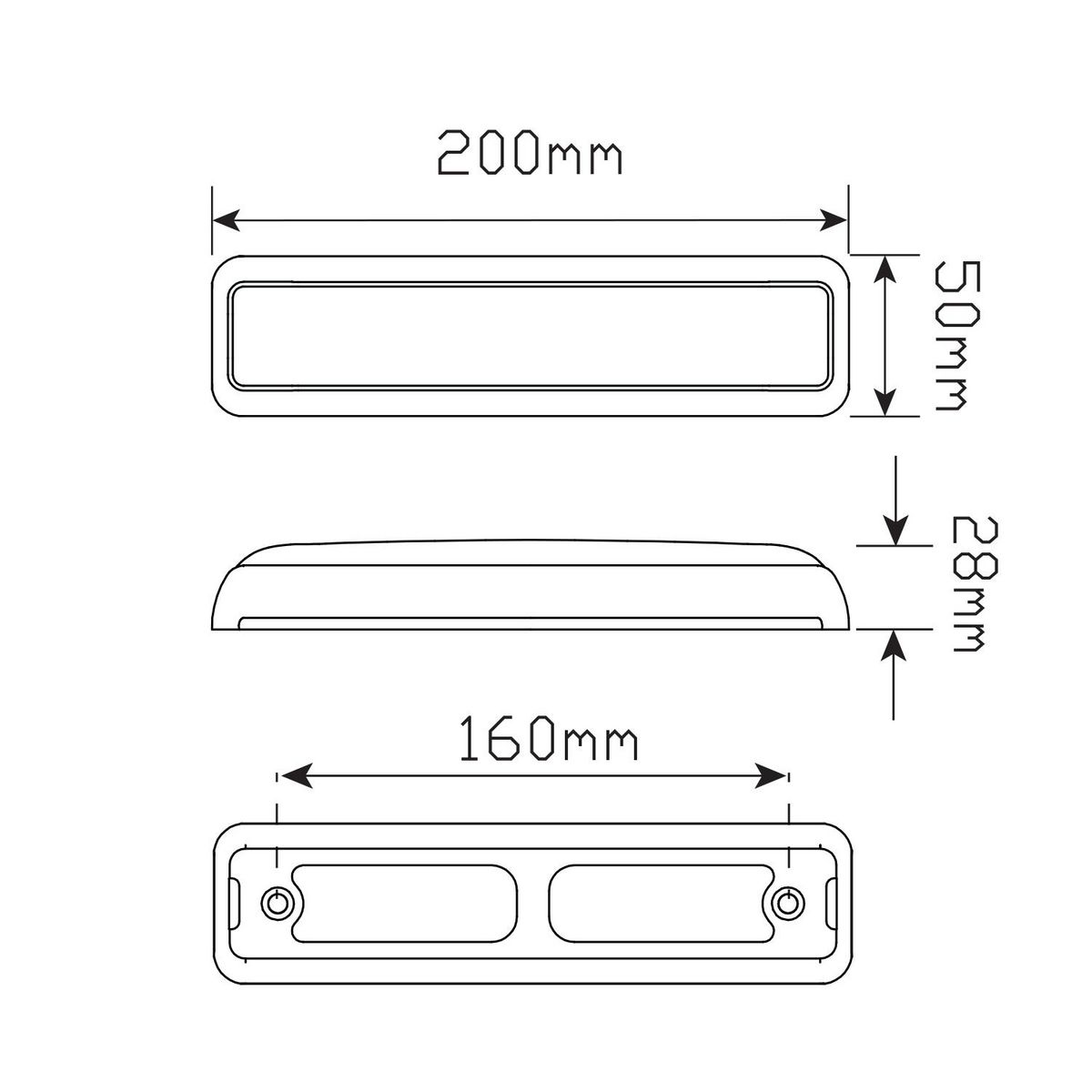

This lamp measures 200mm x 50mm x 28mm and mounts with 160mm fixing centres. The lamp has a horizontal LED array, black bracket and screw surface-mount clip-in lamp construction.

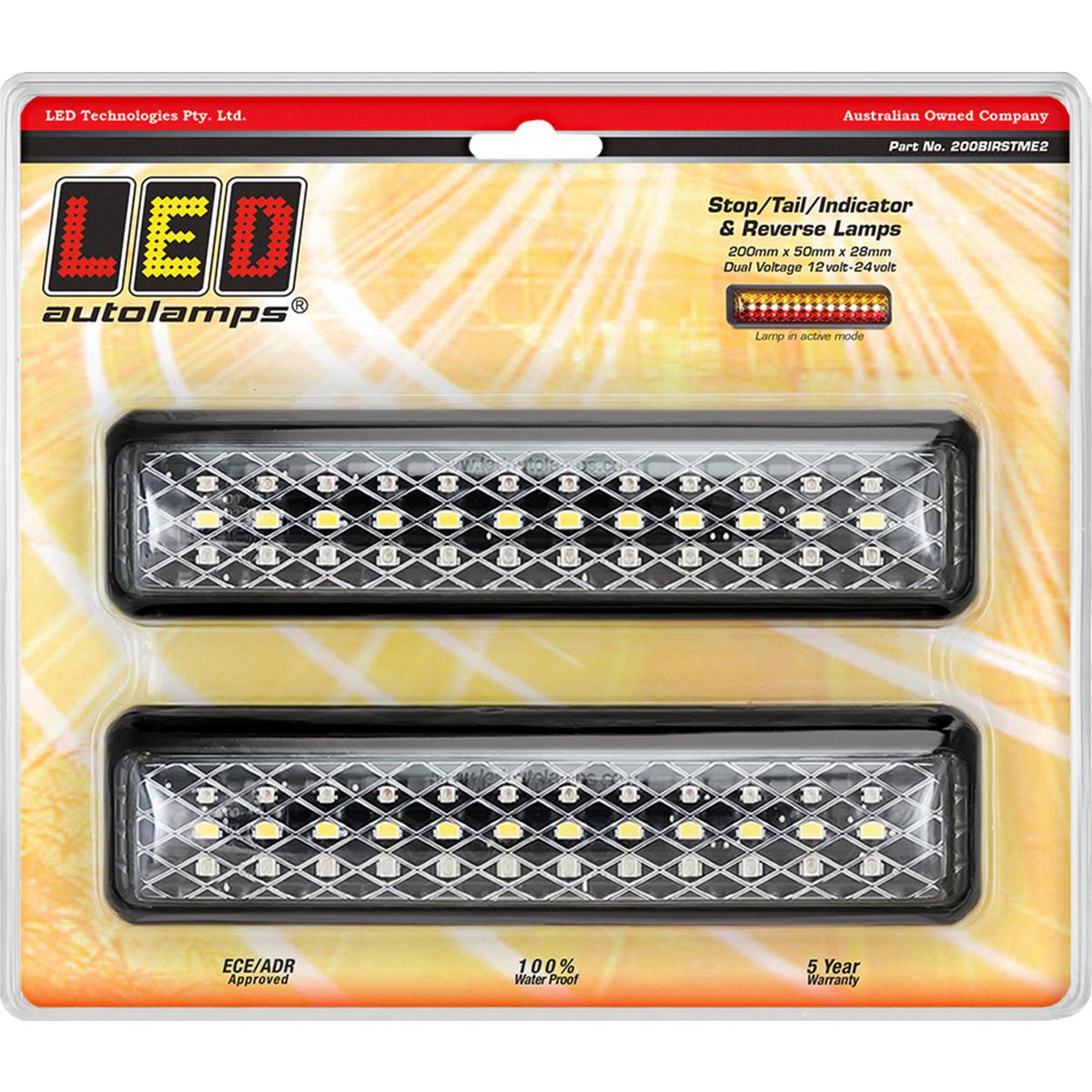

Part number: 200BIRSTME2.

Current draw is 0.29A stop, 0.09A tail, 0.19A indicator and 0.08A reverse at 13.8V.

See the official LED Autolamps 200 Series datasheet

Compatibility and Fitment

Check the existing lamp size, voltage range, rear lighting functions, fixing centres and cable route before ordering. This lamp suits horizontal surface mounting onto a flat rear panel.

Run the wiring through the back of the mounting surface, then clip the lens into place after the bracket sits secure. Also confirm the stop, tail, indicator and reverse circuits before the trailer returns to road use.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the rear panel, screw points and wiring before fitting the replacement lamp. If the old lamp failed from vibration, impact or water entry, repair the cause before installing the new unit.

After fitting, test each function separately at the vehicle and trailer plug. Then check that the lens clips in firmly and the lamp remains visible from the correct rear position.

Trailer Applications

Workshops fit this 12/24V LED stop tail indicator reverse lamp to trailers, trays, utes and service bodies that need compact rear combination lighting.

The narrow 200mm rectangular body helps where rear bars, guards or body panels leave limited space for separate stop, tail, indicator and reverse lamps.
