Description

Overview

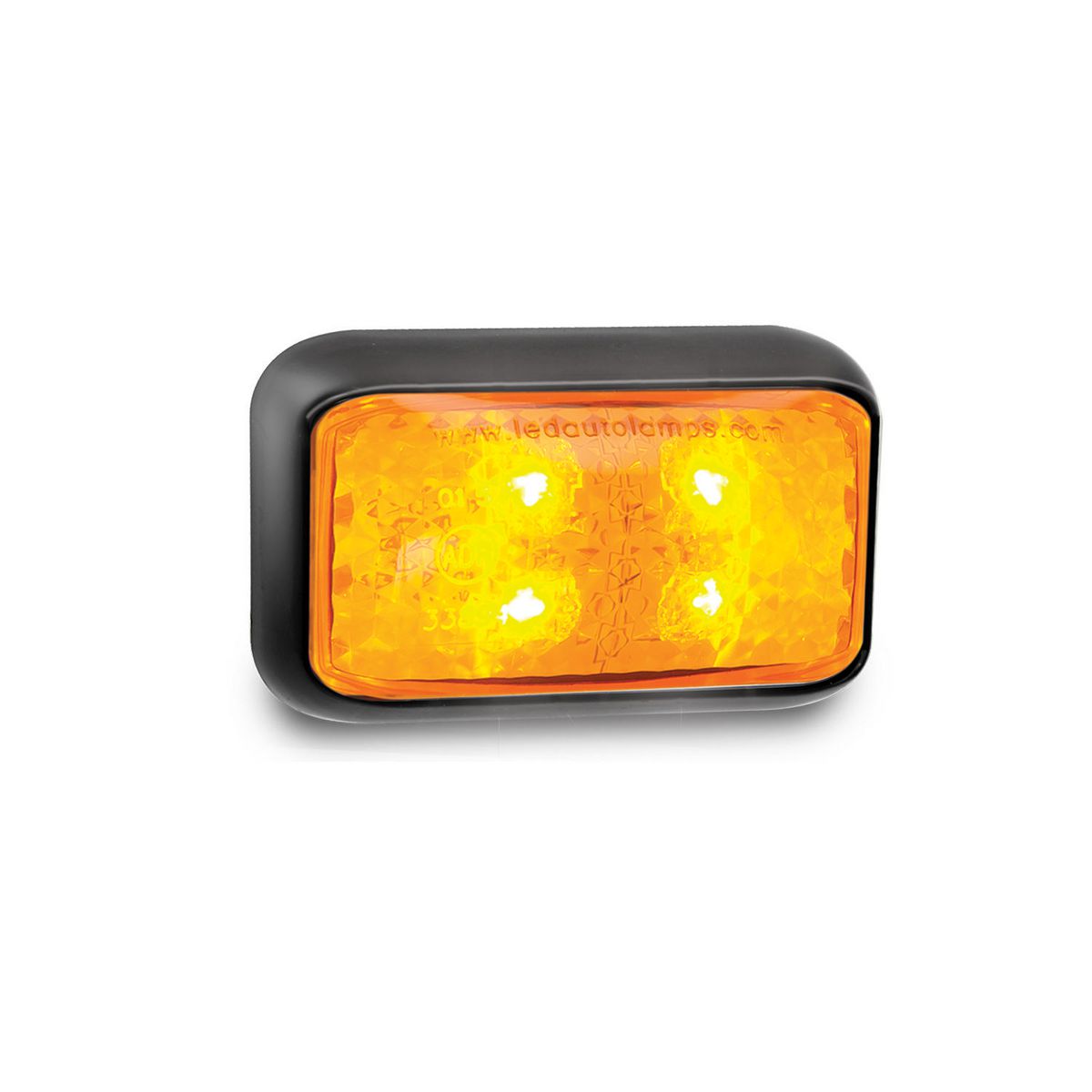

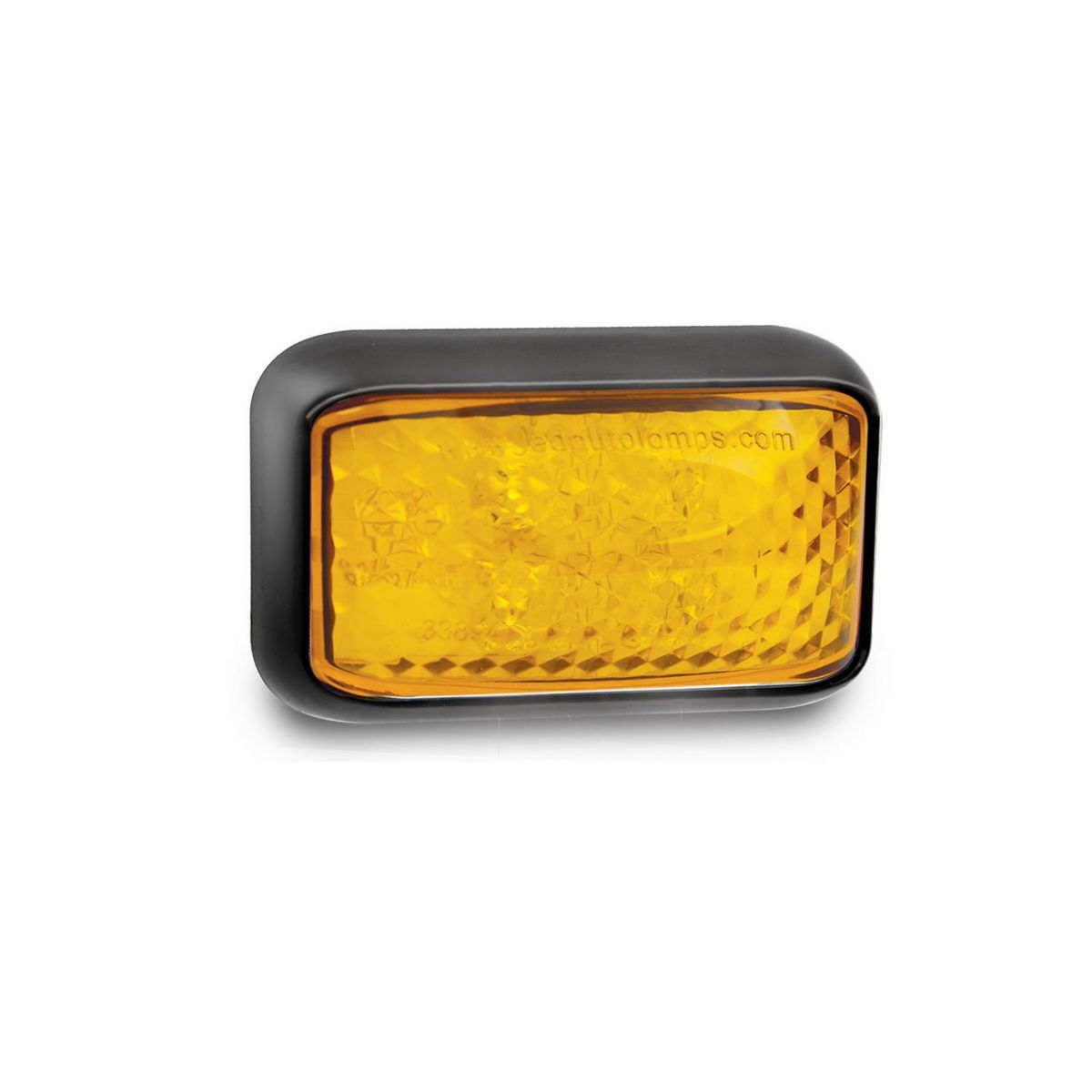

LED side indicator lamp 58mm handles side direction signalling on trailers, truck bodies, caravans and service bodies that need a compact amber side indicator. The low-profile 35 Series body suits flat surface mounting, while the clip-in lens and small footprint make it a neat fit on narrow panels and body edges.

Features

• 4 LEDs provide amber side direction indicator output.
• 58mm × 35mm body suits compact trailer and truck body fitments.
• IP67 rating helps protect the lamp against dust and water exposure.
• Clip-in replaceable lens supports straightforward service access.

Specifications and Materials

This LED side indicator lamp 58mm runs on 12-24V systems and uses a hardened acrylic lens with an ABS base. It has a 40cm cable, 28.5mm mounting centres and current draw of 0.10A at 13.8V or 0.07A at 28V. Part number: 35AM.
manufacturer technical guide

Compatibility and Fitment

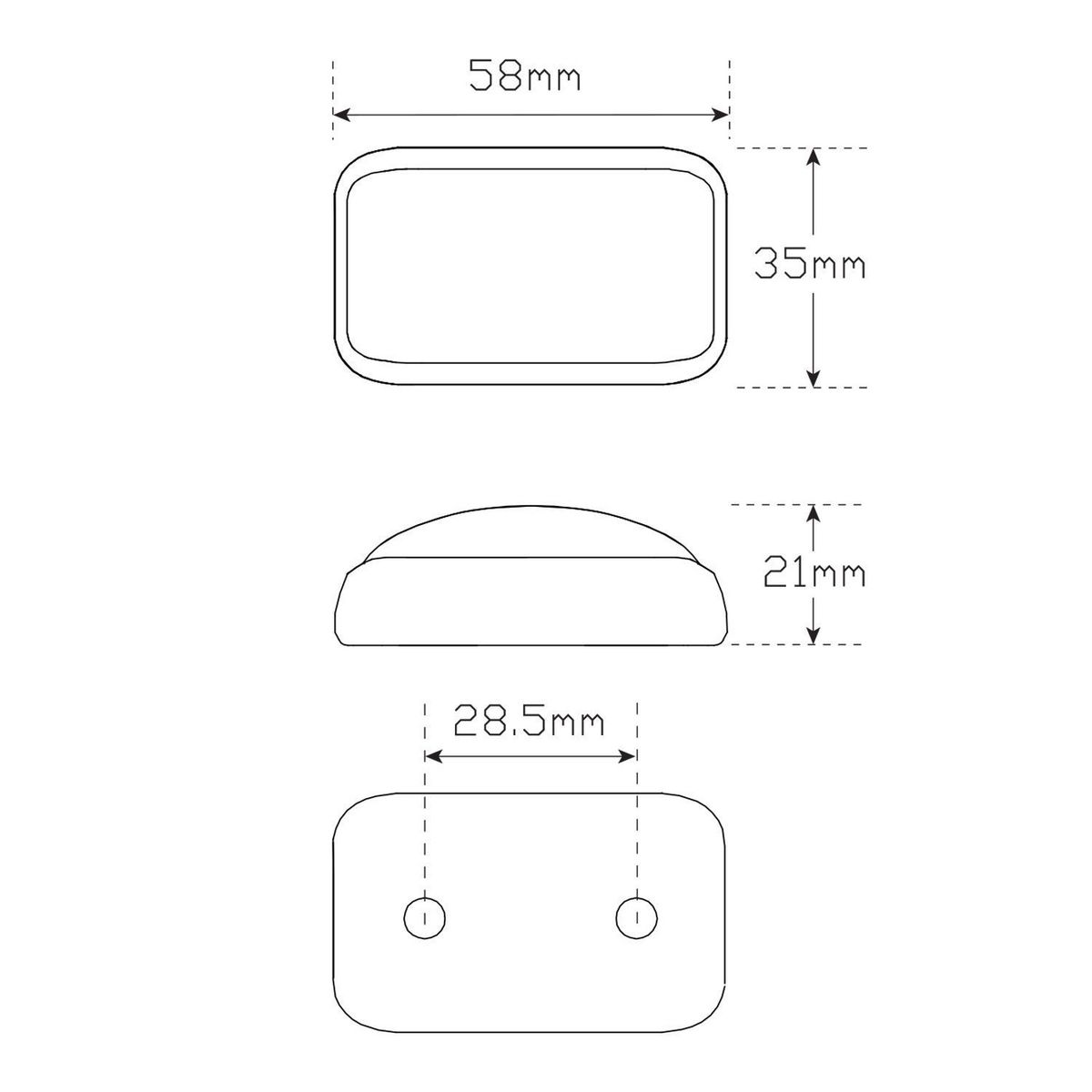

Match the 58mm × 35mm size, 21mm profile, 12-24V range and side indicator approval before ordering. For installation, horizontally mount the bracket to a flat surface, run the wires through the back, then clip the lens into place. If the body layout needs a chrome finish or a spare bracket, check the related parts below.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ADR Indicator 6/00/5 approval for side direction indicator use. However, the installer still needs to position and wire the lamp correctly for the vehicle layout. Check the indicator operation, lens seating, mounting screws and cable routing before returning the trailer to service.

Trailer Applications

Workshops fit this LED side indicator lamp 58mm to trailers, truck bodies, caravans, trays and enclosed bodies where a compact side indicator suits the available panel space. It also suits repair work where the existing 35 Series footprint, black bracket style and amber side indicator function need to be matched.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, body fit-outs and workshop stock. Use this lamp when a compact side direction indicator needs ADR approval, 12-24V operation and a low-profile surface mount body. See more in our LED Lights
