Description

Overview

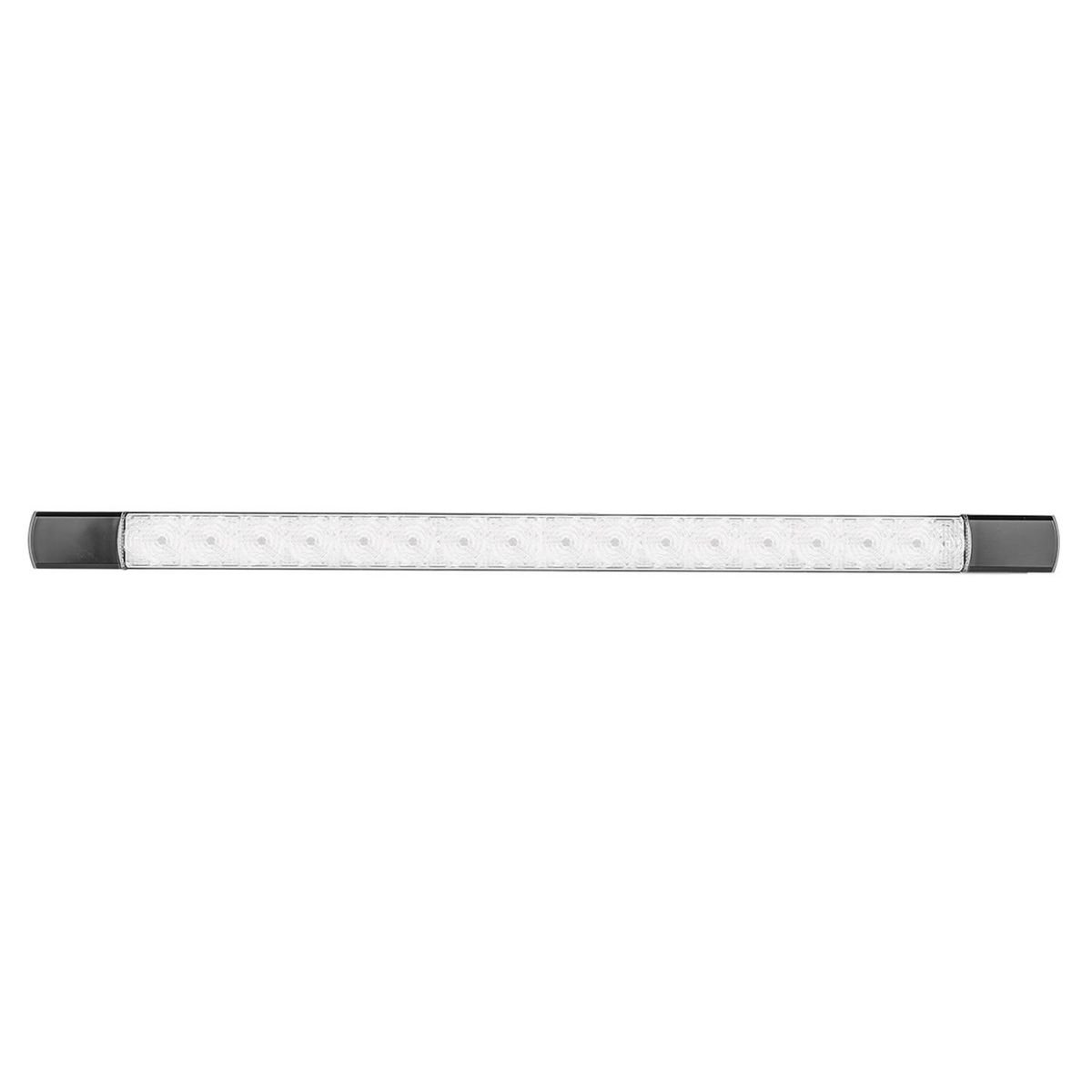

LED reverse lamp handles rear white reversing light output for trailer and vehicle lighting setups that need a slim surface mount lamp. The long, low-profile body suits rear panels where depth is tight but a wide reverse light spread helps visibility when backing up.

Features

• 530mm slimline body with only 10mm lamp depth
• 12V operation for compatible trailer and vehicle wiring systems
• IP67 protection for exposed exterior mounting
• Black end caps hide the screw fixings after installation

Specifications and Materials

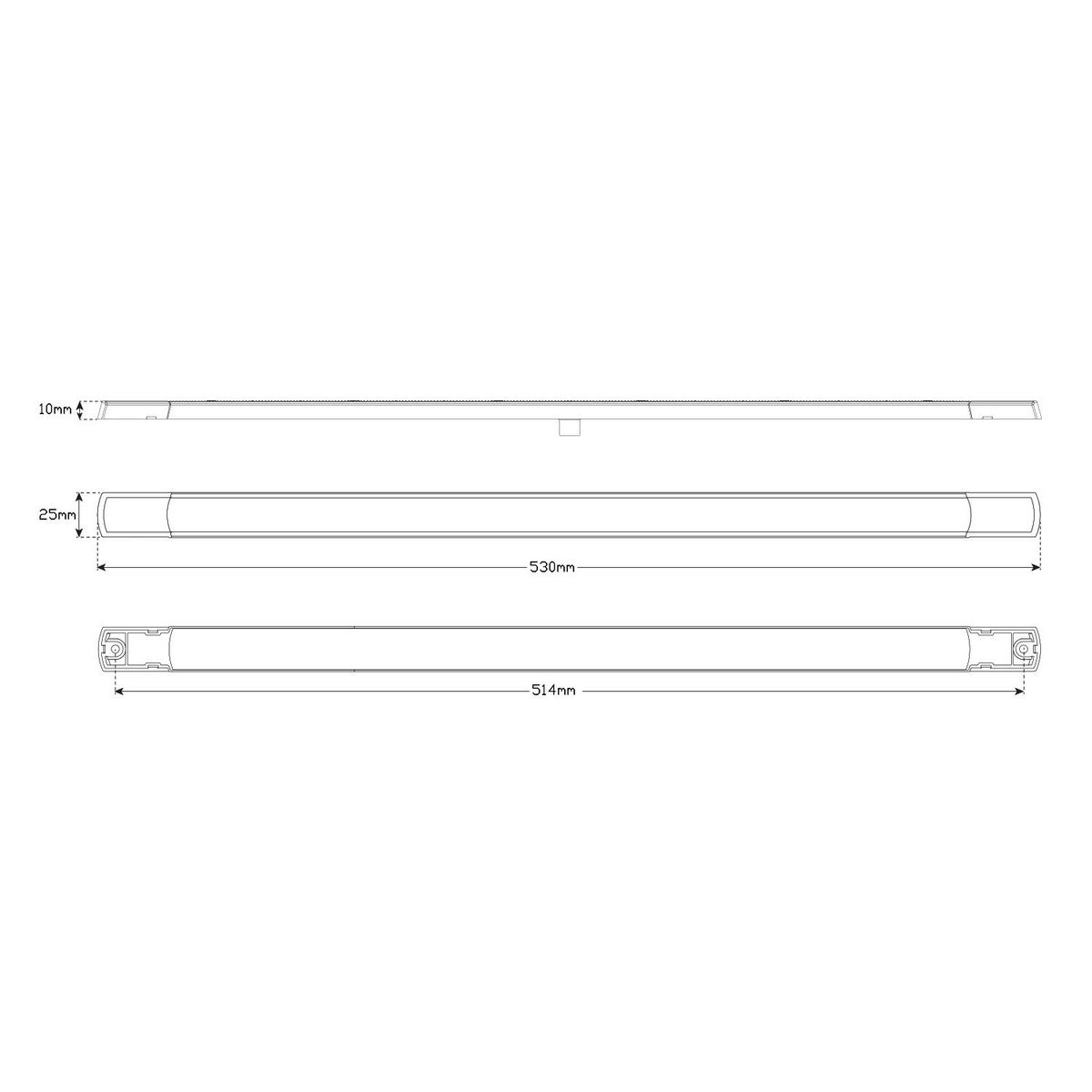

The LED reverse lamp measures 530mm x 25mm x 10mm and carries 24 white LEDs for the reverse function. It uses a 300mm cable, draws 0.16A at 13.8V and surface mounts after the end caps are removed and refitted.

Part number: 530W12.

See the official manufacturer 530 Series specification sheet for manufacturer technical data

Compatibility and Fitment

Check the available rear mounting space, 12V supply, cable access and screw position before ordering. Because this lamp uses a long, narrow body, it suits panels where a compact-depth reverse lamp needs to sit cleanly across a flat surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp firmly to a flat surface, then test the reverse circuit before the trailer returns to service. Also inspect the cable route so it cannot rub, pinch or sit against sharp edges behind the rear panel.

Trailer Applications

Workshops fit this style of reverse lamp to trailers, caravans, utes and service bodies where a slim rear-facing white lamp gives the driver better reversing visibility. It also suits replacement work where the old lamp needs to match a 530mm slimline footprint.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairers, fleets and trailer owners who need clear product identification before fit-up. Browse more LED Lights from ICS Trailers
