Description

Overview

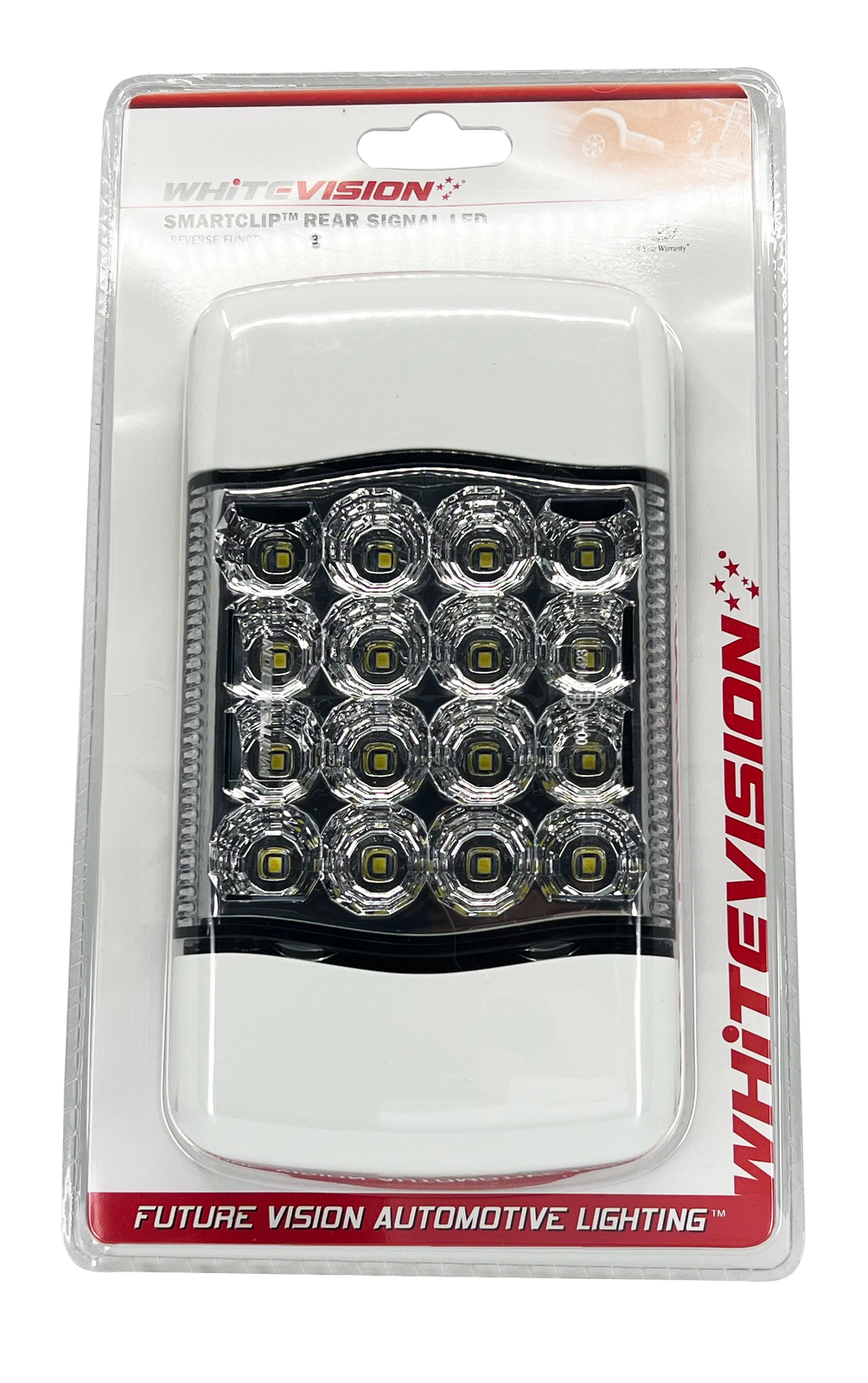

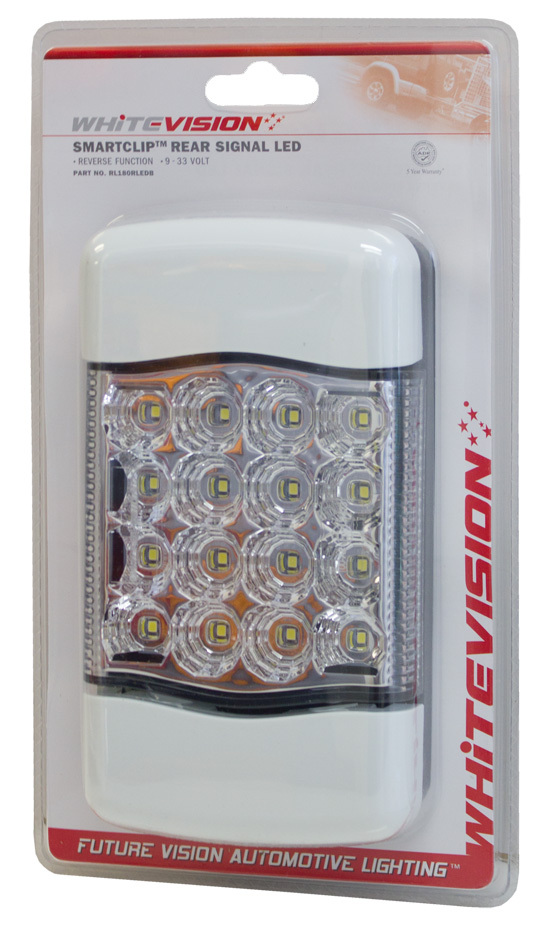

LED reverse lamp improves rear visibility on trailers, trucks and commercial vehicles that need a sealed rectangular reverse light. The 180 Series body uses free-form optics and a Smart Clip™ cover system, so it suits rear lamp layouts where the stop, tail, indicator and reverse lamps need a matching family appearance.

Features

• Reverse lamp function with 2.5W LED output.
• 9-33V operation suits common 12V and 24V trailer electrical systems.
• High-impact polycarbonate lens and ABS base suit heavy-duty use.
• Base mount design uses Smart Clip™ covers for a clean rear lighting fit-up.

Specifications and Materials

The LED reverse lamp runs on 9-33V and uses the reverse function from the RL180 rear single lamp series. It has a polycarbonate lens, ABS base, IP67 environmental rating and 0.5m cable configuration in blister packaging.

Part number: RL180RLEDB.

The lamp measures 177 × 100 × 31mm, with 148mm mounting centres. The series also covers stop/tail, rear position, indicator and reverse functions for matched rear lighting builds.

Use the Whitevision technical sheet when matching the 180 Series lamp dimensions and mounting style.

Compatibility and Fitment

Check the 9-33V supply range, 177mm body length, 100mm height, 31mm depth and 148mm mounting centres before ordering. Also confirm the lamp position, wiring route and Smart Clip™ cover clearance, because the end covers need room to seat properly after the base mounts.

Related Parts

Check the related 180 Series lamp versions below against the rear lighting setup before ordering.

Compliance and Safety

Confirm reverse lamp operation after wiring, then check the lens, mounting screws and Smart Clip™ covers before the trailer returns to service. If water has entered the old lamp or the body mount has cracked, repair the mounting area before fitting the replacement.

Trailer Applications

Workshops fit this LED reverse lamp during trailer rear-end repairs, lighting upgrades, fleet maintenance and OEM-style body builds. The matching 180 Series stop/tail and indicator lamps help keep the rear lighting layout consistent across commercial trailers and service vehicles.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, fleet maintenance and body builds, so you can match voltage, lamp function and mounting layout before ordering.

Browse more LED Lights for trailer repairs.
