Description

Overview

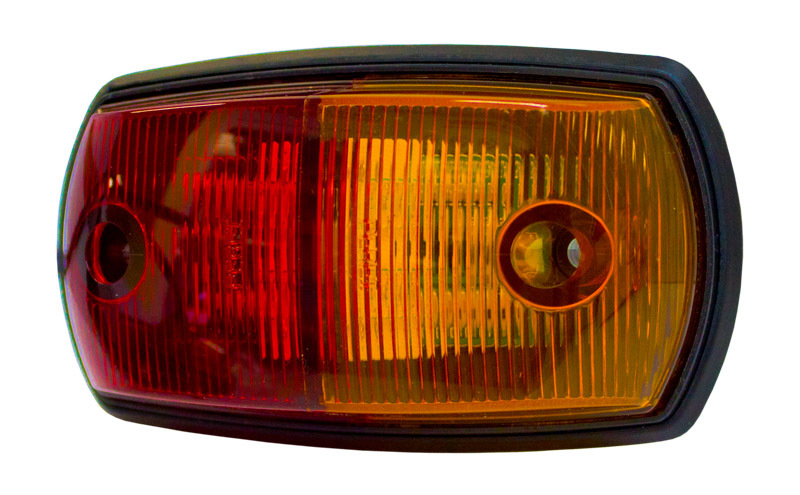

LED side marker lamp restores red/amber side marker lighting on trailers, buses and commercial vehicles using the older SM13-style marker footprint. The retrofit body suits upgrades from matching incandescent marker lamps, while the rubber base helps protect the lamp in vibration-prone body positions.

Features

• Red/amber side marker function for vehicle and trailer side visibility.
• Includes 0.5m cable for connection into the vehicle lighting loom.
• 9-33V operation suits common 12V and 24V electrical systems.
• Front or rear fitting support helps with retrofit panel work.

Specifications and Materials

The LED side marker lamp runs on 9-33V and draws 0.5W. It uses a high-impact polycarbonate lens, rubber base, surface mount body and IP67 environmental sealing.

Part number: SM13RALED.

The lamp measures 120 × 64 × 32mm, with 77mm mounting centres. It carries CTA-060757 approval reference for the red/amber marker version.

Use the Whitevision SM13 technical sheet to match the marker body, voltage and mounting dimensions.

Compatibility and Fitment

Check the red/amber side marker function, 9-33V supply range, 0.5m cable length and 77mm mounting centres before ordering. Also compare the 120mm body length and 64mm height against the existing marker lamp position, especially when replacing older incandescent lamps.

Related Parts

Check the related SM13 Series marker lamp below against the vehicle lighting layout before ordering.

Compliance and Safety

Confirm the lamp faces the correct direction after fitting, then check wiring joins, sealing and mounting security. If the old base has perished or the panel holes have opened up, repair the mounting area before installing the replacement.

Trailer Applications

Workshops fit this LED side marker lamp during bus lighting repairs, commercial body repairs, trailer marker upgrades and incandescent-to-LED conversions. The larger SM13 body suits vehicles already running this marker style where matching the existing footprint matters.

Why Choose ICS Trailers

ICS Trailers supplies marker lamps and trailer lighting parts for body repairs, fleet maintenance and electrical fit-ups, so you can match the lamp function, body size and cable length before ordering.

Browse more LED Lights for trailer repairs.
