Description

Overview

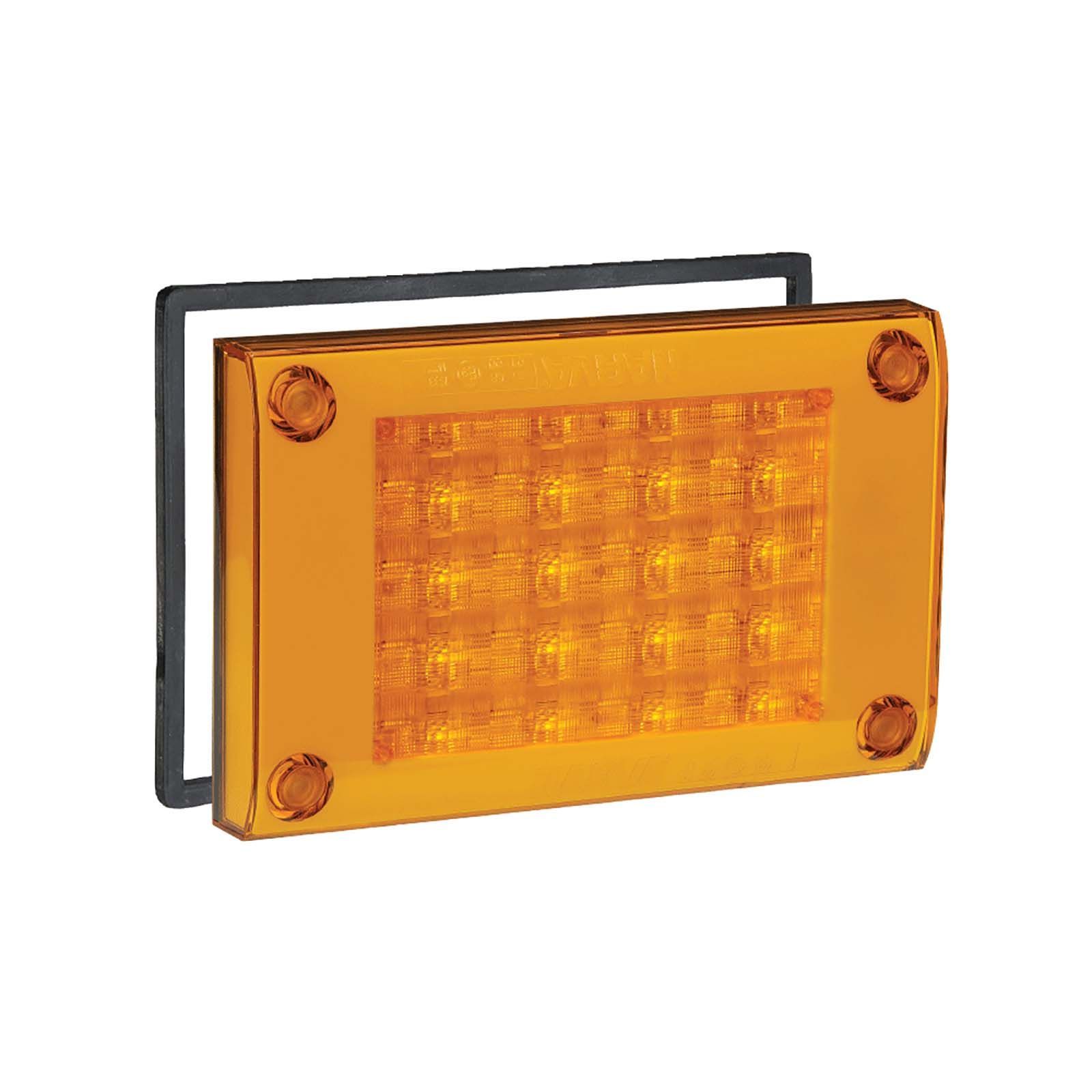

Model 48 LED rear indicator lamp restores the amber rear direction indicator function in existing Jumbo trailer lamp housings.

This retrofit lamp suits service work where the original housing remains in place, but the rear indicator needs a sealed LED replacement.

Features

• 9-33V multi-voltage operation suits 12V and 24V vehicle systems.
• Amber rear direction indicator lamp for Model 48 Jumbo style housings.
• Includes retrofit gasket, mounting screws and amber security caps.
• 0.5m hard-wired cable supports straightforward replacement wiring.

Specifications and Materials

The Model 48 LED rear indicator lamp uses a virtually unbreakable polycarbonate lens and sealed LED construction for heavy vehicle rear lighting.

It runs on 9-33V, draws 0.42A, carries IP66/IP68 sealing, and measures 192 x 122mm across the face.

The lamp has an 18 candela rating and carries ADR 6/00 2a-E9-01.1938 approval marking.

Part number: 94800.

Check the official Narva Model 48 indicator lamp

Compatibility and Fitment

Match this lamp to the existing Jumbo tail light housing, rear indicator position and vehicle voltage before ordering.

Because it includes the gasket and amber security caps, it suits retrofit work where the housing stays serviceable.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

After fitting, test the indicator circuit and confirm the lamp flashes correctly with the vehicle flasher system.

Also check the gasket seal, cable route and security caps so the lamp sits firmly and resists water ingress.

Trailer Applications

Workshops fit the Model 48 LED rear indicator lamp during Jumbo lamp repairs, LED upgrades and rear lighting service work on trailers, trucks, caravans and heavy vehicle bodies.
