Description

Overview

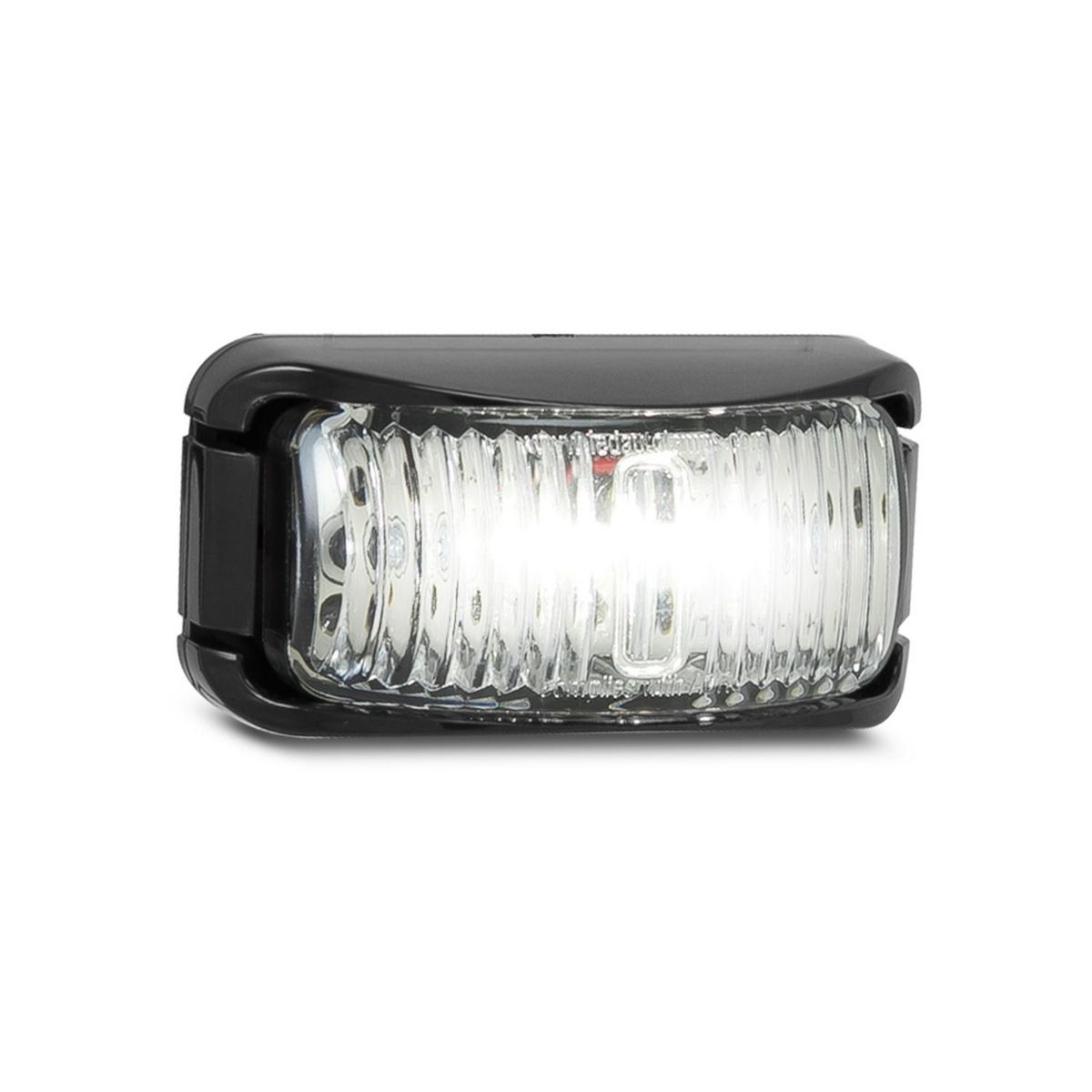

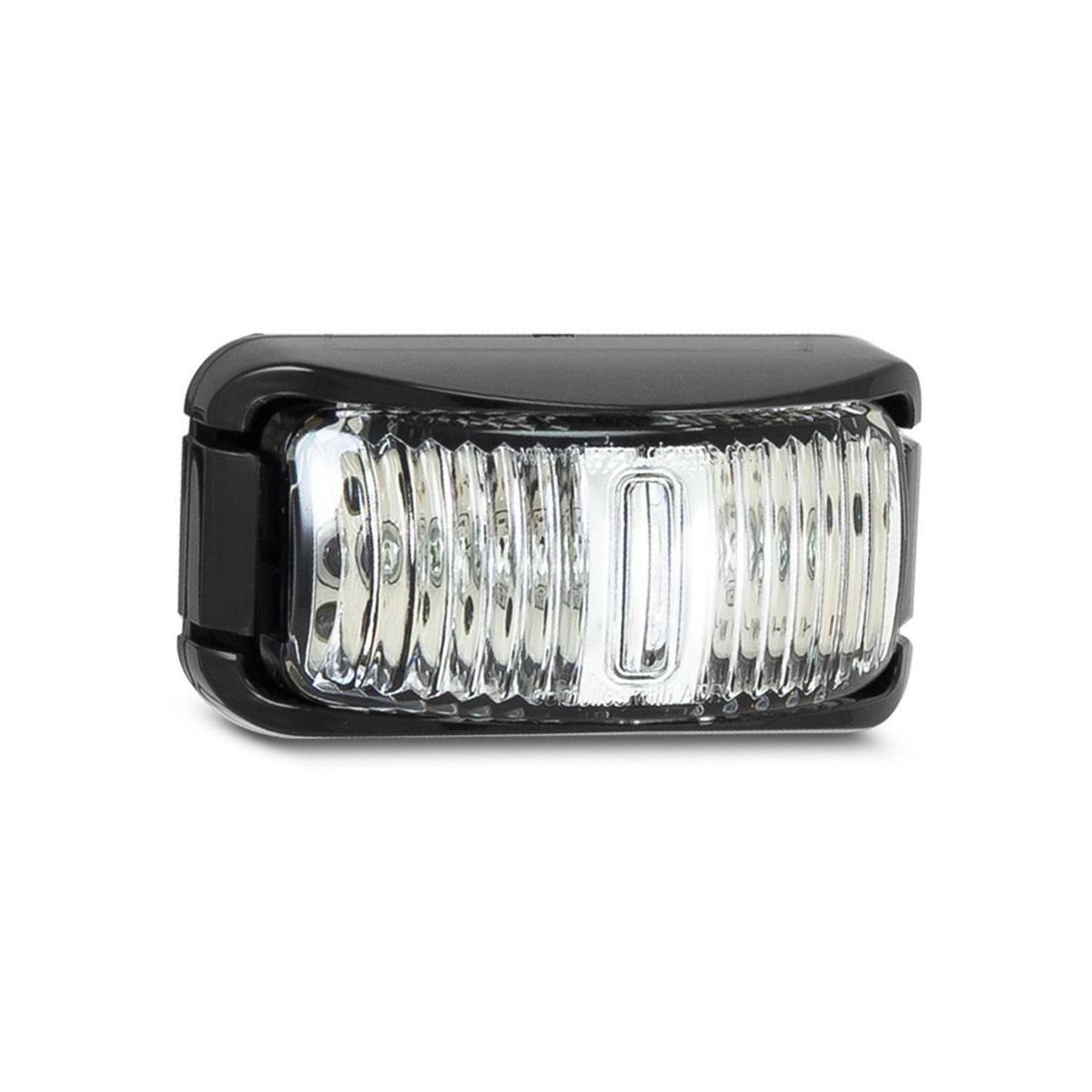

Front end outline marker gives trailers, truck bodies and commercial vehicle panels a white front outline light in a classic truck-style housing. The clear lens and black bracket keep the lamp neat on the panel, while the 12-24V range suits mixed vehicle and trailer electrical systems.

Features

• White front end outline marker supplied as a bulk box of 10.
• 2 LED layout with clear clip-in lens and black bracket.
• 16cm bare-wire cable suits direct marker lamp wiring.
• IP67 rated housing supports exposed trailer and vehicle lighting positions.

Specifications and Materials

Part number: 42WMB.

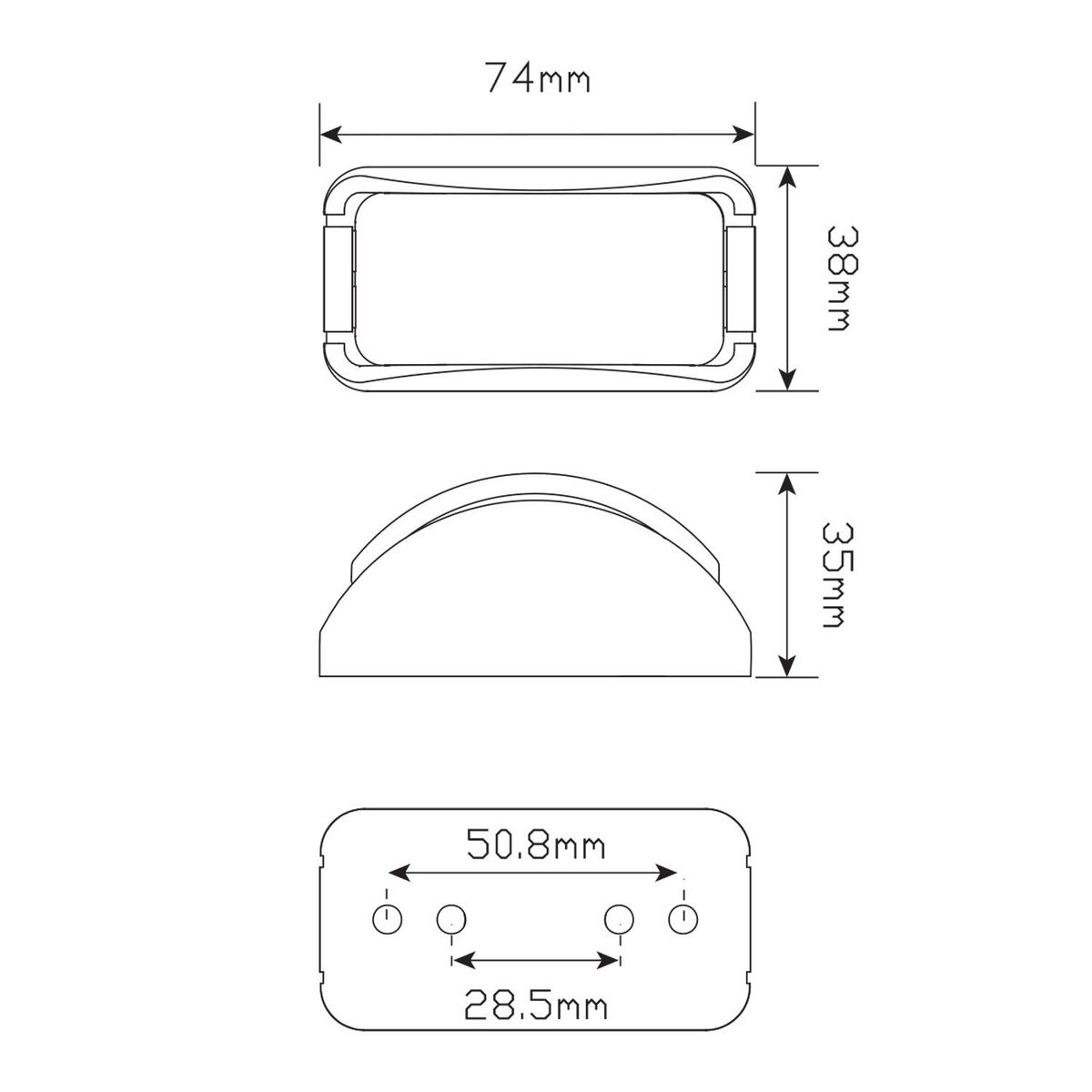

The front end outline marker measures 74mm x 38mm x 35mm and uses a polycarbonate lens with hardened acrylic base. It draws 0.03A at 13.8V and 0.03A at 28V, with ADR and CTA front end outline approval under category 49/00.

LED Autolamps 42 Series technical page

Compatibility and Fitment

Match this front end outline marker to white front outline marker positions, 12-24V supply, 74mm x 38mm x 35mm body size and 16cm bare-wire connection before ordering. Mount the bracket horizontally to a flat surface, run the wires through the back, then clip the lens into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check marker colour, position and mounting direction before fitting. Also inspect the cable path and lens clip after installation, because loose wiring or an unseated lens can cause repeat marker lamp faults.

Trailer Applications

Workshops fit this front end outline marker to trailer fronts, truck bodies, trays and commercial vehicle panels where a white front marker is required. The 10 pack suits fleet repairs, multiple trailer builds and body shops replacing several outline markers at once.
