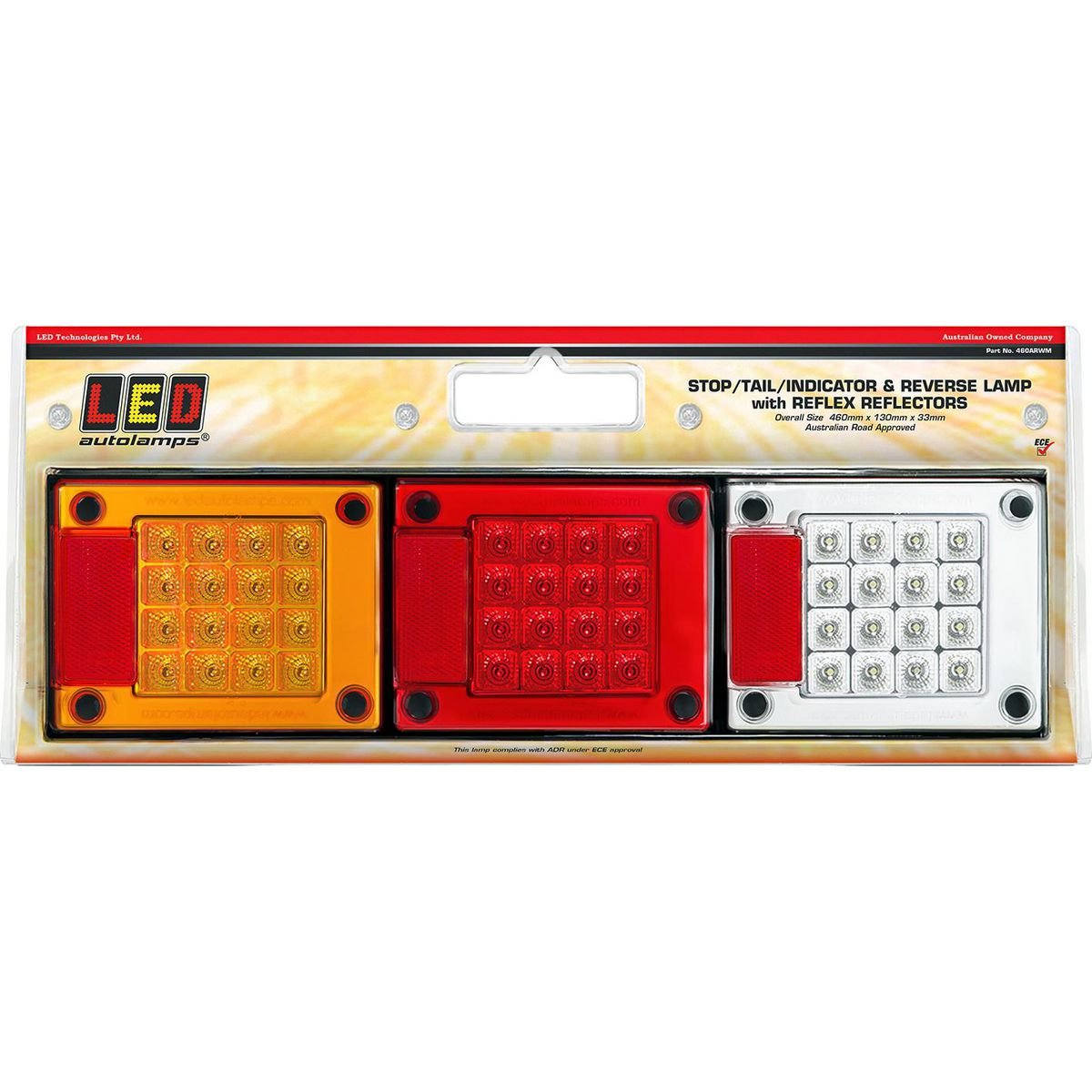

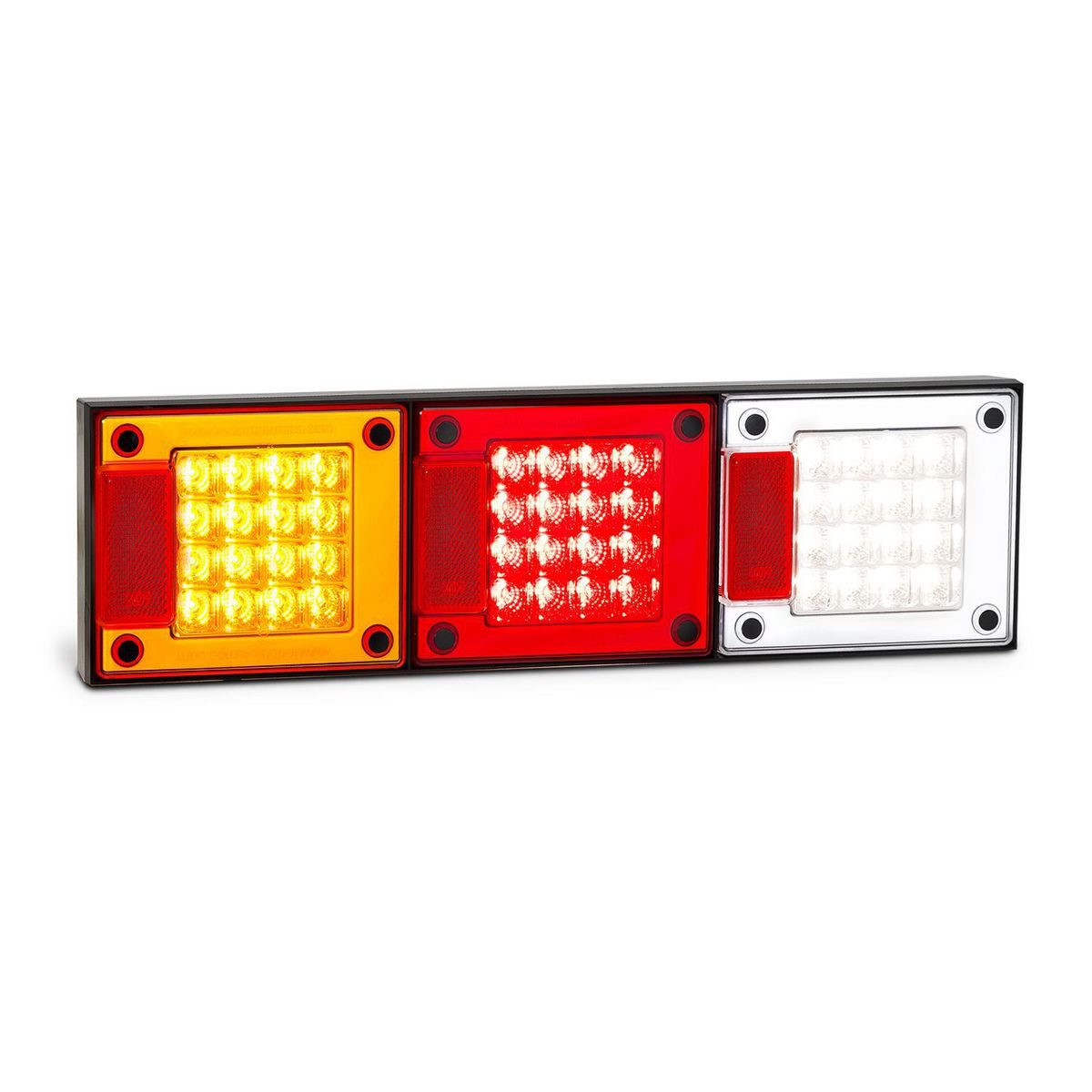

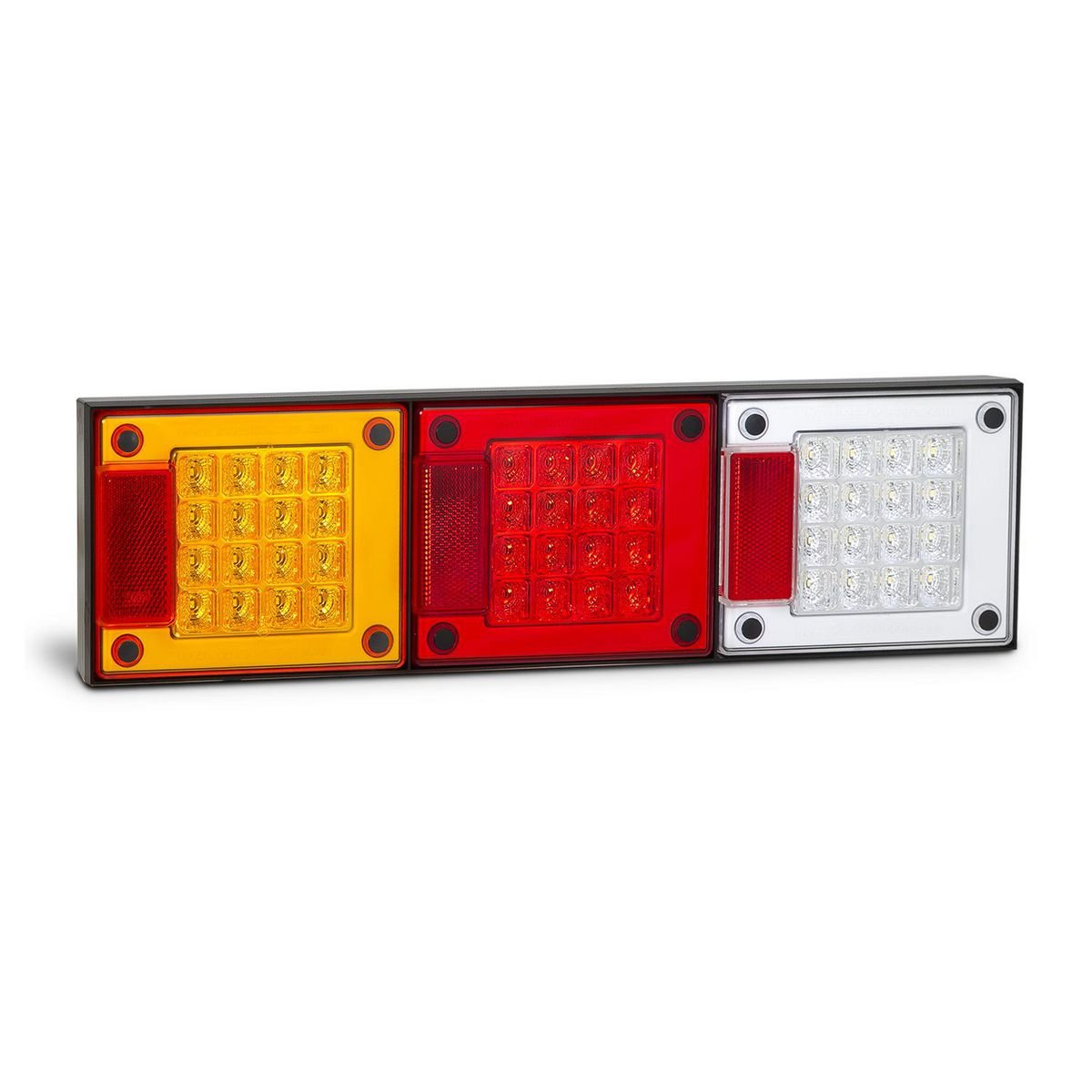

Combination Trailer Lamp 12/24V 460mm
Combination Trailer Lamp 12/24V 460mm
$179.00
12/24V combination trailer lamp for trailer rear lighting repairs, with stop, tail, indicator, reverse and reflector functions, 48 LEDs, IP67 rating, 1.2m cable and 460mm x 130mm x 33mm surface-mount body for clean rear signalling.
Part number 460ARWM.
Description
Overview
12/24V combination trailer lamp restores the main rear lighting functions on medium and heavy trailer setups. It combines stop, tail, indicator, reverse and reflex reflector functions in one 460mm surface-mount body, so it suits rear bars and trailer panels that need a single multi-function lamp assembly.
Features
- Stop, tail, indicator, reverse and reflector functions in one rear lamp assembly.
- Multivolt 12-24V operation suits mixed trailer and vehicle electrical systems.
- 48 LED layout with hardened acrylic lenses and ABS base.
- IP67 rating helps protect the lamp against dust and water entry.
Specifications and Materials

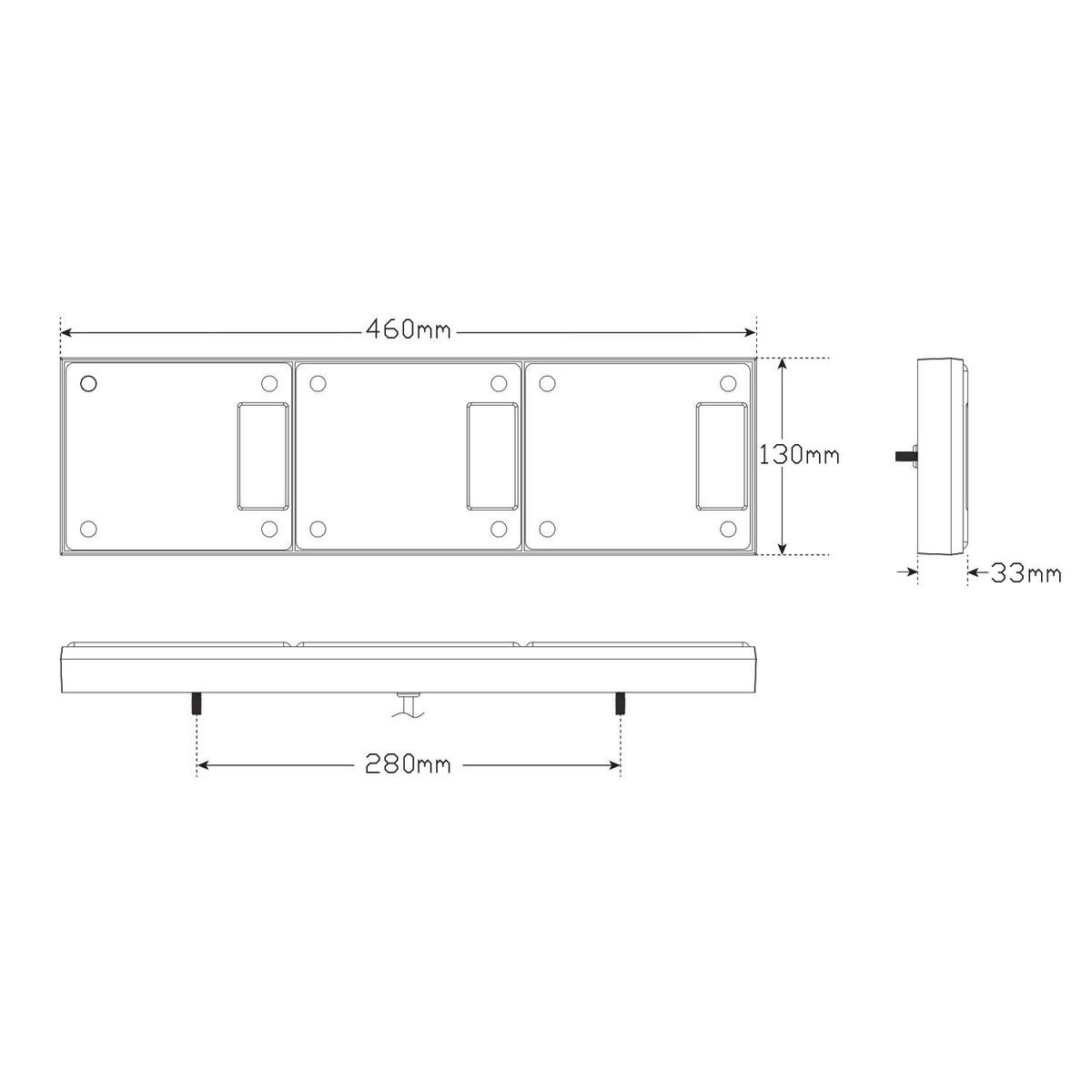

This 12/24V combination trailer lamp measures 460mm x 130mm x 33mm and mounts horizontally to a flat surface. It includes a 1.2m bare-wire cable, stainless steel mounting bolts and a cable path through a 12mm hole in the fixing surface.
Part number: 460ARWM.
The stop, tail, indicator and reverse functions draw 0.30A, 0.02A, 0.32A and 0.19A at 13.8V, then 0.17A, 0.04A, 0.18A and 0.12A at 28V.
See the official 460 Series technical guide
Compatibility and Fitment
Match the lamp to the rear lighting layout, voltage, mounting space and cable entry before ordering. Also check the 280mm mounting bolt spacing and 460mm overall lamp length, because this series uses a wider three-module body rather than a compact two-module lamp.
The 12/24V combination trailer lamp suits flat horizontal mounting. Run the cable through the fixing surface, then tighten the lamp evenly so the housing sits square against the rear panel.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement bracket | 460B3B | Black 460 Series bracket |
| Replacement component | 460RMB | Red stop/tail LED insert |
| Replacement component | 460AMB | Amber indicator LED insert |
| Replacement component | 460WMB | Clear reverse LED insert |
Compliance and Safety
The lamp carries ECE approvals for stop/tail, indicator, reverse and reflector functions, plus CTA approval for stop/tail/indicator/reverse/reflector use. When fitting, follow ADR 13/00 mounting guidance and confirm each circuit operates correctly before returning the trailer to service.
Trailer Applications
Fleets use this 12/24V combination trailer lamp on rear lighting repairs for trailers, semi-trailers, rigid bodies, service bodies and equipment trailers. Because the lamp combines five rear functions, it helps simplify replacement where the trailer already runs a medium jumbo three-section rear lamp.
Why Choose ICS Trailers
ICS Trailers supplies lighting parts for trailer repairs, workshop fit-outs and body builds. Before replacing a rear combination lamp, check function layout, voltage, lens colours, mounting centres and cable routing against the existing trailer setup. See more trailer lighting parts in LED Lights
Online prices apply to website orders only. In-store pricing may differ.
