Description

Overview

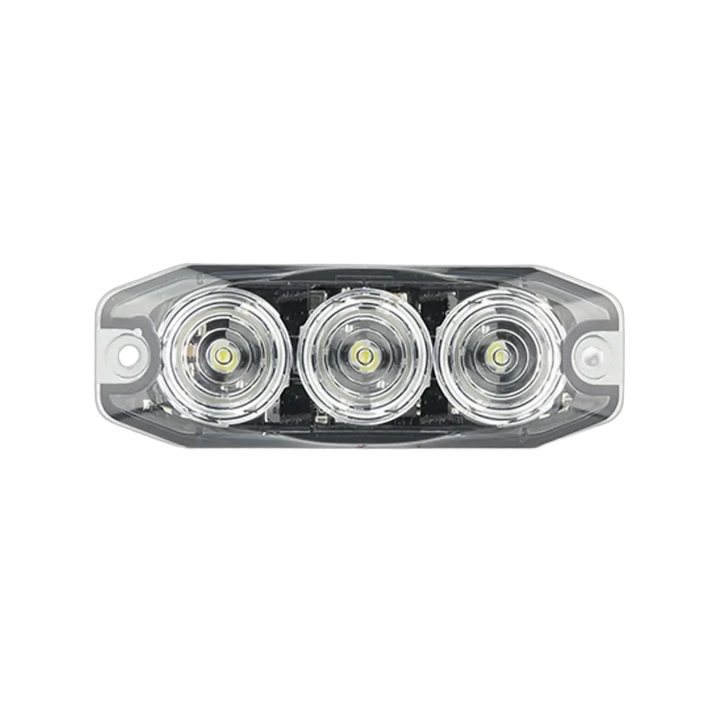

Clear front indicator lamp twin pack handles 12/24V front indicator service on trailers, truck bodies and light commercial builds with limited lamp depth. The clear inactive lens keeps the front panel tidy, while the amber indicator output gives the driver a compact front signalling lamp for road lighting repairs.

Features

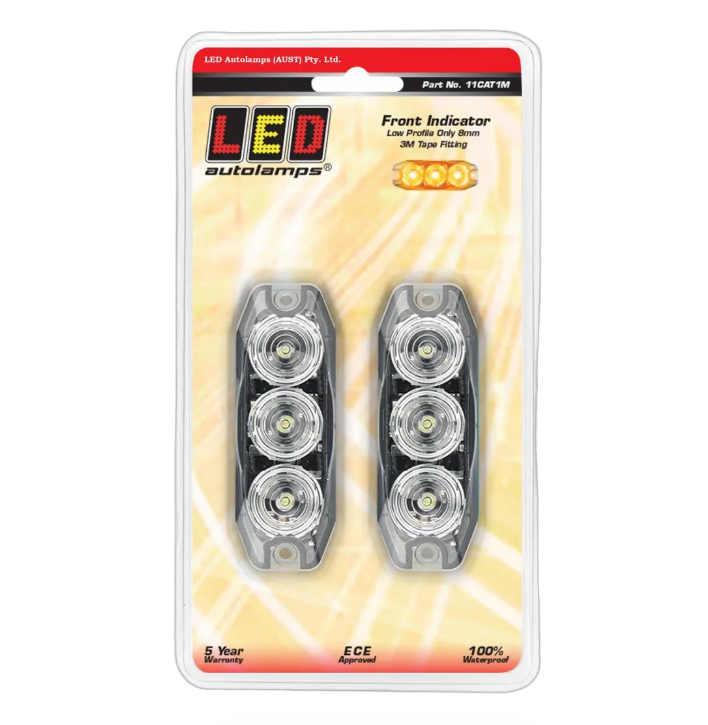

• • Twin blister pack for matching front indicator replacement work.
  • Low 8mm profile suits narrow front panels and compact lighting spaces.
  • 3M tape and screw fitting supports firm horizontal surface mounting.

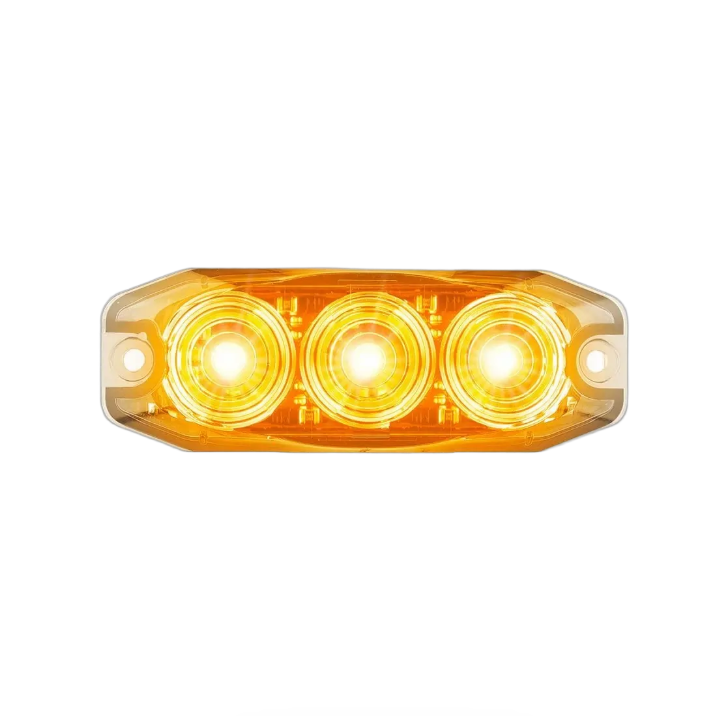

  • Clear inactive lens lights amber through 3 LEDs per lamp.

Specifications and Materials

The pack contains two surface mount front indicator lamps. Each lamp measures 89mm x 30mm x 8mm, runs on 12/24V, uses 3 LEDs and carries a 25cm cable. Indicator draw is 0.07A at 13.8V and 0.05A at 28V.

Part number: 11CAT1M-2.

Manufacturer technical guide: official 11 Series technical page

Compatibility and Fitment

Match this clear front indicator lamp to a 12V or 24V front indicator circuit, then check the flat mounting face, cable route and screw position before fitting. The yellow wire runs to indicator power and the black wire runs to earth.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamps horizontally on a flat surface using the supplied 3M tape and screws. Also check ADR 13/00 mounting position guidance before road use, because lamp approval still depends on correct placement and wiring.

Trailer Applications

Trailer builders and repairers fit a clear front indicator lamp when narrow front panels need a shallow surface mount lamp. As a result, this twin pack suits paired front indicator repairs where both sides need the same low profile lamp.

Why Choose ICS Trailers

ICS Trailers can help match indicator lamps with trailer wiring, marker lighting and front body repairs when the job needs more than the lamp itself.

Browse more trailer lighting in LED Lights
