Description

Overview

Chassis Mounting Bracket Chrome Finish 750mm gives a clean single bolt way to mount a mudguard to chassis or subframe rails on heavy vehicles.

Because the tube is curved to follow the guard contour, it supports the guard without forcing it out of shape, so you get a neater fit and less vibration over time. It also comes fitted with a reflector end cap, which helps side visibility when headlights hit the vehicle at an angle.

Features

• Curved tube profile to match common mudguard arcs
• Single bolt mounting point for straightforward installation
• Reflector end cap fitted as standard

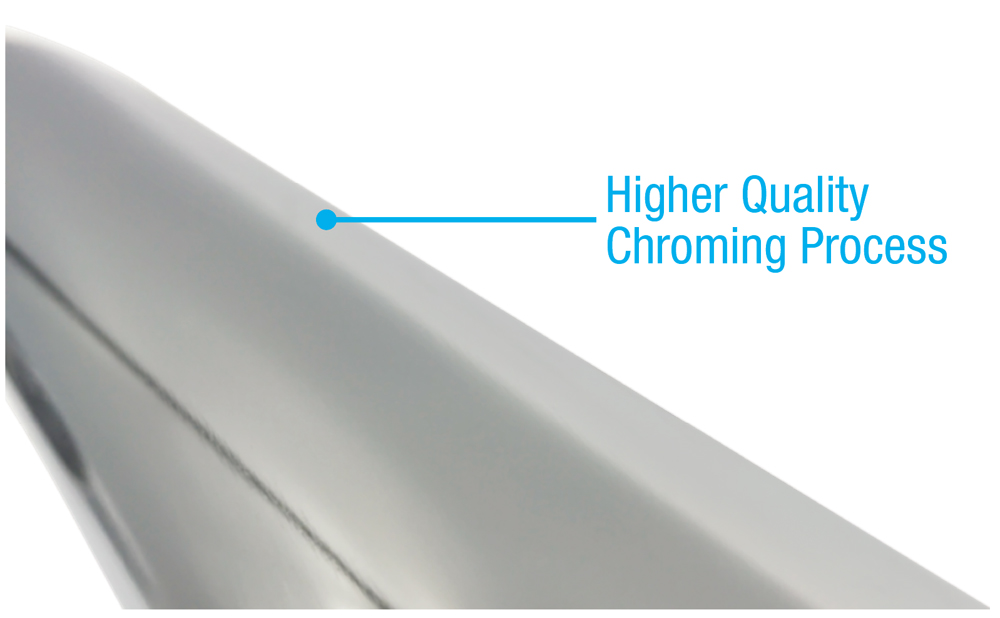

• Chrome finish to help resist corrosion and keep a tidy appearance

Specifications and Materials

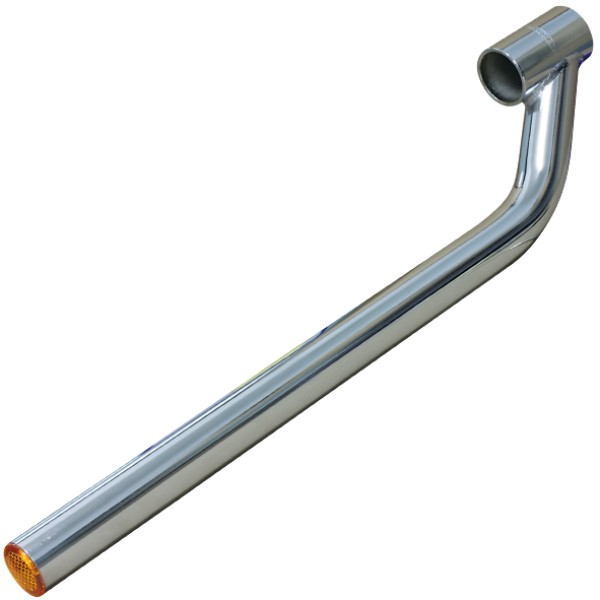

This Chassis Mounting Bracket Chrome Finish 750mm uses a rigid curved tube bracket with a single mounting point, plus a reflector end cap on the outer end.

Overall length: 750mm.

Part number: CA5452C.

See the manufacturer sizing information for the offset-tube chassis bracket to confirm the 750mm length before ordering.

Compatibility and Fitment

Chassis Mounting Bracket Chrome Finish 750mm suits mudguard mounting where a single bolt chassis pick-up is used, however you still need to check guard width, tyre clearance, and suspension travel before final tightening. If you are matching an existing bracket, measure the bracket length and the guard arc first, then set the bracket so the mudguard sits square and does not rub under load.

Compliance and Safety

A secure mudguard mount helps reduce spray and debris, so it protects your trailer, your prime mover, and other road users. The reflector end cap can support side-on visibility, but you should still confirm your overall lighting and reflective device layout meets the requirements for your vehicle and application. Always use suitable fasteners for the chassis material, and recheck torque after initial road vibration.

Trailer Applications

• Semitrailers and B-doubles using chassis-mounted mudguards
• Dog trailers and dollies where guard brackets take vibration load
• Rigid body trucks and tag trailers with single bolt guard mounts
• General repairs when replacing a damaged or corroded guard bracket

Why Choose ICS Trailers

ICS Trailers helps you select parts that fit the first time, so you waste less time in the workshop. You can also bundle brackets, guards, and fasteners in one order, which keeps your maintenance jobs moving. If you are unsure about clearance or mounting position, ask for practical advice based on how these brackets are commonly installed in Australian conditions.
