Description

Overview

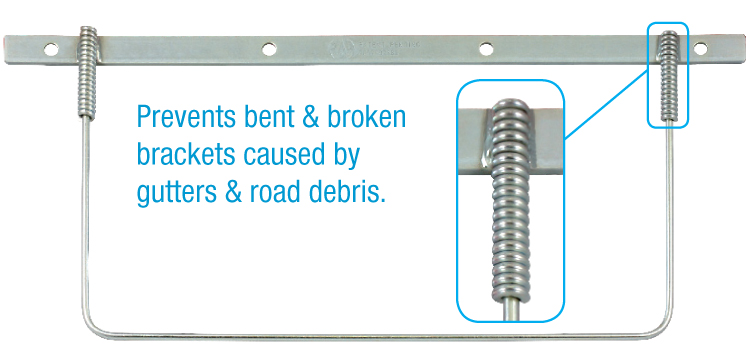

The 24in anti-sail bracket spring hinged is designed to keep a 24in wide mudflap stable at speed so it does not flap, fold, or wear out early. It suits standard 24in wide mud flaps, including many spray suppression flaps, and mounts as a rigid support behind the flap. Because the bracket uses a spring hinged action, it can give way when it contacts gutters or road debris, which helps reduce bent or broken bracket damage.

Features

• Spring hinged design helps reduce impact damage from gutters and road debris
• Supports the mudflap to reduce sailing and premature tearing or mounting-hole wear
• Steel construction with a galvanised finish for corrosion resistance in wet and dirty work
• Made to suit common 24in wide mudflaps on trucks and trailers

Specifications and Materials

Part number: CA5390.

This 24in anti-sail bracket spring hinged uses a galvanised steel bracket to support the mudflap without needing extra moving parts in the flap itself.

• Type: anti-sail mudflap support bracket with spring hinged action
• Fit: suits 24in wide mud flaps and many spray suppression mud flaps
• Overall size: 600mm (W) x 270mm (H)
• Material/finish: steel with galvanised finish

For general anti-sail bracket function and selection guidance, see the manufacturer anti-sail bracket overview

Compatibility and Fitment

This bracket is intended for standard 24in wide mudflap setups where an anti-sail support is required. If you are replacing an existing bracket, match the mudflap width first, then confirm you have clearance for the 270mm bracket height. Also check your mounting hole pattern and fasteners, because different mudflap brands use different fixing layouts.

Compliance and Safety

Mudguards and mudflaps form part of your vehicle’s spray and debris control, so installation needs to be secure and appropriate for the vehicle and state requirements. When you fit the bracket, use suitable fasteners, tighten them correctly, and re-check after the first run. If a flap or bracket can contact tyres, air lines, wiring, or suspension travel, reposition the mounting instead of forcing the fit.

Trailer Applications

Use the 24in anti-sail bracket spring hinged on semi-trailers, dog trailers, tippers, and rigid trucks where a 24in wide mudflap needs extra support. It is also useful on high kilometre highway work because stable flaps tend to last longer and keep the rear of the trailer cleaner. In addition, the hinged design can help in tight loading docks where flaps regularly brush gutters or ramps.

Why Choose ICS Trailers

ICS Trailers supplies practical parts for heavy vehicle and trailer service work, so you can keep downtime low. If you are unsure on fitment, share your current bracket style and mudflap size and we can help you choose the right setup.
