Description

Overview

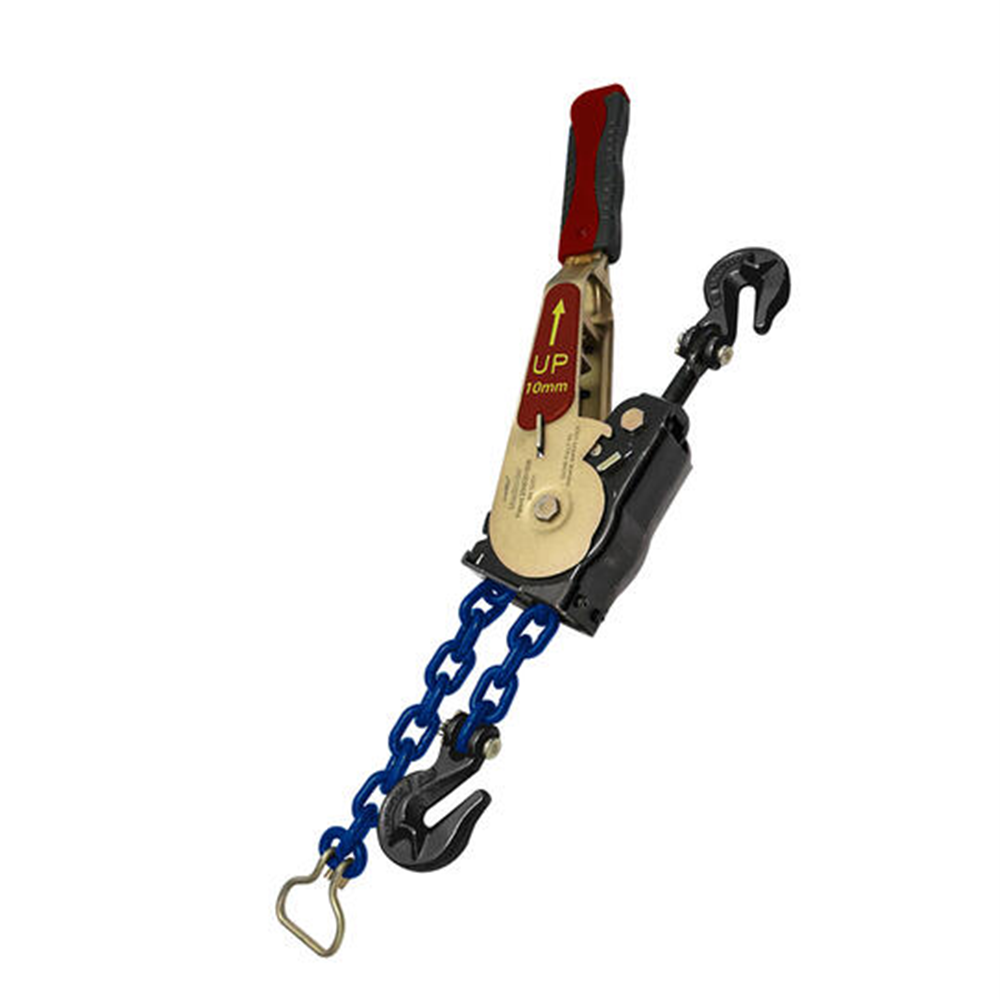

10mm Maxibinder loadbinder tensions transport chain for heavy load restraint work on trucks, trailers and plant transport. It suits operators who need high pre-tensioning strength, controlled adjustment and a swivel head layout for chain load restraint.

Features

• 10mm Maxibinder loadbinder with swivel head for transport chain restraint.
• 6000kg lashing capacity with 12000kg destructive test rating.

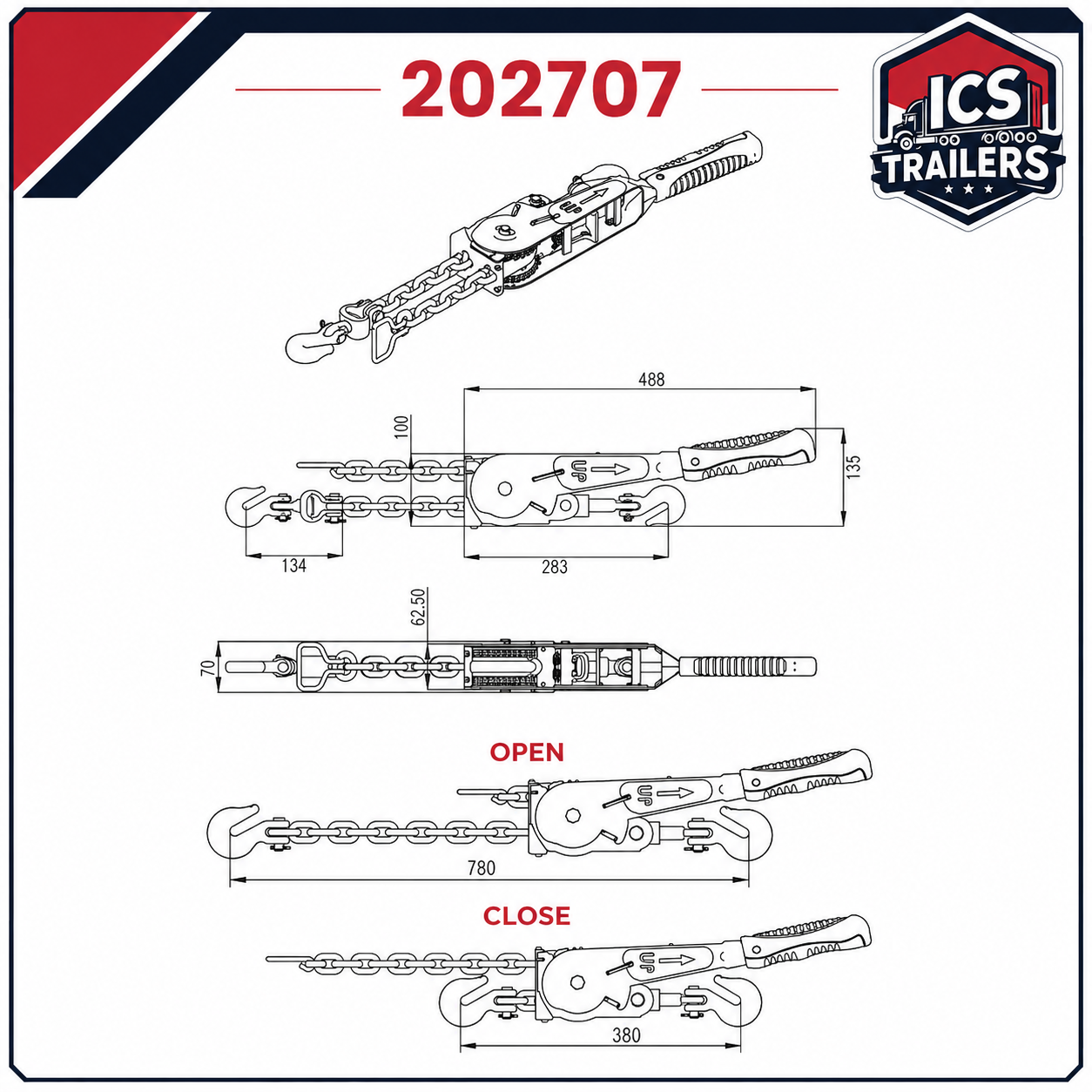

• 305mm tensioning distance with 1/8 chain link length adjustment.
• Heat-treated alloy steel construction with G70 10mm clevis-type grab hook.

Specifications and Materials

This 10mm ratchet chain loadbinder uses a G100 9mm chain specification with a G70 10mm clevis grab hook. It weighs 6.4kg and suits one load restraint position where the chain, anchor point and load restraint plan all match the rated capacity.

Part number: 202707.

Refer to the Austlift Maxibinder technical page for manufacturer product details

Compatibility and Fitment

Match the 6000kg lashing capacity, chain size, hook type and anchor point rating before use. The 10mm Maxibinder loadbinder suits transport chain restraint, but it must not be used for lifting applications.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. CA4953

Compliance and Safety

Inspect the hooks, chain, swivel head and tensioning mechanism before every use. If the binder shows bent parts, cracked components, seized movement or unreadable markings, remove it from service.

Use this binder only as part of a rated load restraint setup. Also confirm the load, friction, lashing angle and anchor points before tensioning the chain.

Trailer Applications

Transport operators use a 10mm ratchet chain loadbinder on trailer load restraint setups for machinery, equipment, steel, pallets and other heavy freight. For fleet work, pair it with correctly rated transport chain and check the restraint layout before the vehicle leaves the yard.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies load restraint hardware for transport operators, trailer workshops and fleets that need practical parts for road-going heavy vehicle work. View more Hardware from ICS Trailers
