Description

Overview

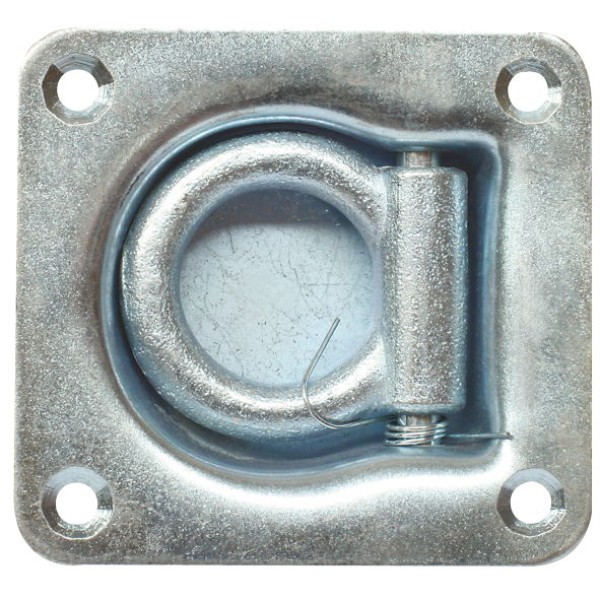

The 102 x 95mm recessed floor ring provides a flush-mounted tie-down point in compatible trailer floors. Its flip-up ring folds away when not in use, while the spring-loaded action helps prevent rattle. Zinc-plated heavy-duty steel construction supports exposed trailer service, and the four-hole mounting pattern keeps the compact floor plate securely positioned.

Features

• Flush-mount design folds into the trailer floor when not in use.
• Spring-loaded 25mm ring helps reduce movement and rattle.
• Four mounting holes suit 5mm screw fixings.
• Zinc-plated heavy-duty steel construction.

Specifications and Materials

Overall size: 102mm long × 95mm wide × 11mm thick. Ring size: 25mm. Screw size: 5mm. Mounting holes: four. Break load: 2000kg.

Part number: CV3002.

For general load restraint guidance, see the National Transport Commission load restraint guide

Compatibility and Fitment

Match the 102 × 95mm floor footprint, 11mm recess depth and four-hole mounting arrangement before cutting or drilling the deck. Also confirm the tie-down fitting can pass through the 25mm ring without binding.

Compliance and Safety

Keep the ring free to lift and return into the recess, and inspect the floor structure and fasteners for movement or damage. Treat the 2000kg figure as a break load, not as a working load limit for the complete restraint system.

Trailer Applications

The 102 x 95mm recessed floor ring suits compatible trailer floors where a fold-away tie-down point is needed for straps, hooks or other suitable restraint fittings without leaving a permanently raised ring in the loading area.

Why Choose ICS Trailers

The 102 × 95mm footprint, 11mm thickness, four mounting holes and spring-loaded 25mm ring give you several clear dimensions to compare before modifying a trailer floor. If you are replacing an existing recessed anchor, send ICS Trailers photos of the opening, surrounding deck and old fixing pattern. We can help check the physical match before installation so the new ring sits flush and operates cleanly in the existing floor position.
