Description

Overview

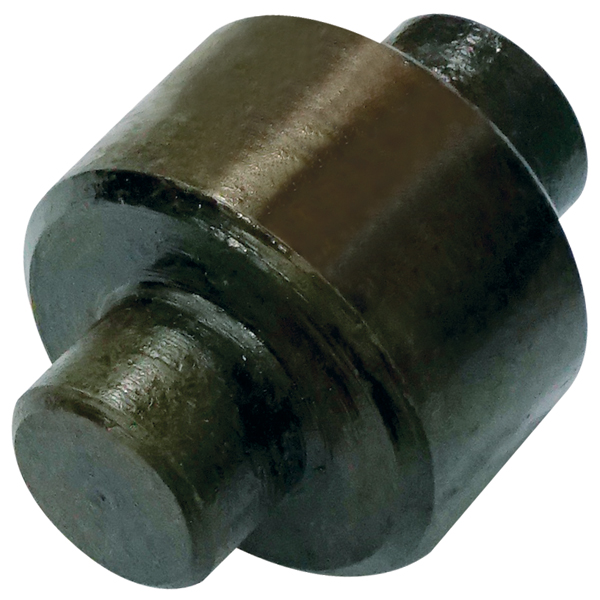

Brake shoe roller 15in Eaton E34 is a direct replacement cam roller for 15 inch Eaton E34 foundation drum brakes on trailers and other heavy vehicles. It helps the brake shoe track correctly on the S cam so lining contact stays even and stopping performance remains predictable. Using the correct roller size also helps maintain consistent brake response across axles in a fleet.

Features

This brake shoe roller offers practical benefits for workshop technicians.

• Correct 48mm length for 15 inch Eaton E34 brake shoes so the shoe pivots smoothly on the S cam
• Stepped 19mm / 39mm roller diameters to match the original profile and support stable cam contact
• Compact size that suits tight drum brake hardware spaces while still carrying high contact loads
• Simple replacement part that helps restore braking consistency without needing to change associated shoe hardware

Specifications and Materials

These specifications follow common Eaton E34 drum brake dimensions so the roller can be checked easily against an existing part.

Part number: FB3423.

• Application: 15 inch Eaton E34 drum brake shoe roller for heavy trailers and trucks
• Length: 48mm roller body to suit the matching brake shoe casting
• Outside diameters: 19mm and 39mm stepped profile as listed in established cross reference data
• Construction: steel roller and pin typical of heavy vehicle foundation brake hardware to withstand repeated braking loads

For more background on trailer drum brake cam support hardware, see this manufacturer technical guide which outlines brake component torque and maintenance recommendations

Compatibility and Fitment

Use brake shoe roller 15in Eaton E34 on heavy trailers and trucks running 15 inch Eaton E34 drum brakes where the existing cam roller matches the 48mm length and 19mm / 39mm diameters. Check the roller and shoe casting visually so the shoulder and contact faces align the same way as the removed part.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-2395, 154-00861, 32-1429, 820165, BP3419, FL32.1429, WT3419.

Compliance and Safety

Foundation brake components work together as a system, so follow the vehicle or axle manufacturer procedures when replacing a brake shoe roller. Confirm the drum, shoes, cam and hardware are within wear limits before fitting a new roller. Ensure the roller rotates freely on its pin and that all fasteners are torqued to the specified values in the relevant service documentation. Finally, road test the vehicle and recheck braking performance after installation to confirm even response across the axle.

Trailer Applications

Brake shoe roller 15in Eaton E34 is typically used on 15 inch drum brakes fitted to semi trailers, dog trailers and other heavy haulage equipment using Eaton E34 style foundation brakes. It also suits fleet workshops that maintain mixed trailers where consistent hardware across axles can simplify inspections and record keeping. Standardising on one roller for this brake family can also reduce inventory duplication.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

For each fleet, compare these references with existing parts lists and any OEM documentation to confirm the correct match before ordering.
