Description

Overview

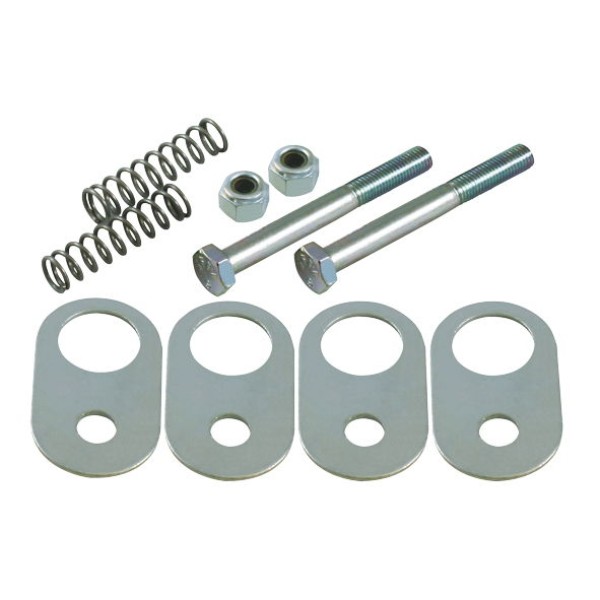

The roller retaining kit heavy duty bolt on secures brake shoe rollers on heavy trailer drum brakes. It suits two shoes per wheel end and helps keep roller position stable under repeated braking.

Features

• Bolt on design clamps to the brake shoe web so worn retainers can be replaced without welding
• Heavy duty construction suits highway and regional freight use with frequent brake applications
• Kit covers two shoes on one wheel end which helps reduce setup time during brake relines

Specifications and Materials

Part number: FB3415.

Typical installations position the roller retaining kit heavy duty bolt on on the brake shoe web so the roller sits correctly in the cam profile. The kit suits two shoes on a single wheel position, enabling paired replacement during major brake services. Components suit heavy vehicle foundation brakes, so confirm suitability against axle or brake documentation before installation.

For a general overview of drum brake hardware components on heavy trailer axles refer to this manufacturer drum brake component chart

Compatibility and Fitment

This brake shoe roller retaining kit suits heavy trailer drum brake assemblies that use bolt on retainers rather than welded tabs.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. York 2782 axle 16.5″ x 7″ brake, York 2784 axle 16.5″ x 7″ brake, York 2950 axle 335mm x 210mm brake, Fruehauf Pro-Par 12.25″ x 8″ brake, Ingersol Standard Forge 20″ brake

Compliance and Safety

Follow the axle or brake builder’s procedures when replacing roller retainers. Use new fasteners and torque them to the specified values to maintain clamp load on the shoe web.

Trailer Applications

The roller retaining kit heavy duty bolt on suits common highway semi trailers, dog trailers and other heavy combinations using large drum foundation brakes. It is often fitted during brake reline programs so wheel ends stay consistent across multiple axles.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Always confirm cross-reference data against current axle and brake documentation before substituting parts.

Why Choose ICS Trailers

ICS Trailers supplies brake hardware chosen for heavy haul and fleet requirements so buyers can match parts confidently to their trailer running gear. Our team can help with basic selection questions, but installers must confirm final suitability on the vehicle.

Browse Foundation Brakes parts at ICS Trailers in our Foundation Brakes category
