Description

Overview

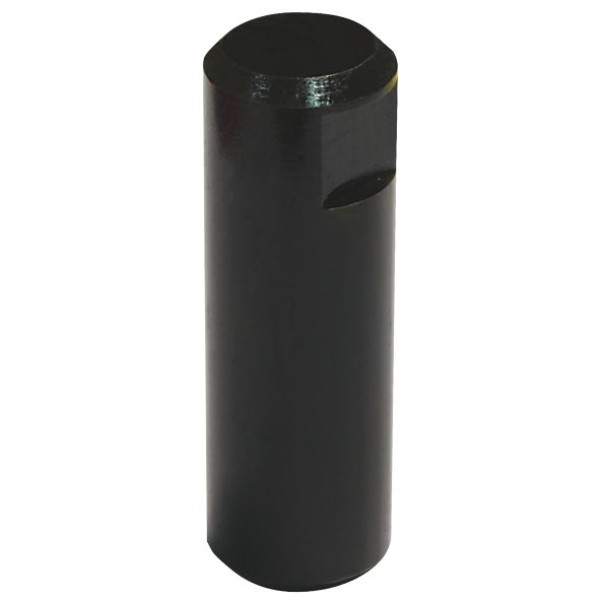

This brake shoe roller pin 15 inch Dana Spicer fits heavy trailer and truck axles that use 15 inch Dana and Spicer drum foundation brakes. It locates the brake shoe roller in the brake shoe web so the shoe tracks smoothly against the S cam and drum. The pin also supports even wear patterns and helps maintain consistent braking response across the axle group.

Features

• Suits 15 inch Dana and Spicer drum brakes that use a matching roller on this hardware location
• 57mm overall pin length and 19mm body diameter for fitment in the brake shoe web
• High strength steel construction to handle repeated brake applications under heavy loads
• Simple pin geometry that integrates with standard brake shoe and roller service procedures

Specifications and Materials

In service, this brake shoe roller pin works within the 15 inch Dana and Spicer drum brake assembly, providing the pivot point for the brake shoe roller. Typical pin dimensions are 57mm overall length and 19mm outside diameter, matching the layout used in common 15 inch Dana and Spicer foundation brakes for this hardware location. The pin uses high strength steel construction suitable for heavy vehicle drum brake hardware, so it resists wear and deformation during repeated brake applications.

Part number: FB3409.
For more background on heavy vehicle air brake components and foundation brake hardware, this air brake system components guide provides an accessible overview

Compatibility and Fitment

This brake shoe roller pin suits 15 inch Dana and Spicer S cam drum brakes that specify a 57mm roller pin with a 19mm body diameter in the shoe web.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-501, 56103R1, B1219, BP3436, FL32.1440, IT32.1440, WT3434

Compliance and Safety

Correct brake shoe roller pin fitment is important for drum brake compliance because misaligned shoes can affect contact pressure and stopping distance. Confirm brake size, roller type and pin orientation against the OEM service manual before installation. Finally, inspect rollers, pins and shoe webs during regular brake services and replace worn components as a set where practical.

Trailer Applications

This brake shoe roller pin typically appears on heavy haul trailers, dollies and semi trailers that use 15 inch Dana and Spicer drum brakes. It supports general freight, tanker and tipper work where consistent foundation brake performance matters. It also suits workshop brake overhauls, scheduled relines and reactive repairs when matching the original Dana or Spicer layout.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Additionally, always verify these numbers against the vehicle identification plate or brake parts list before final selection.

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle parts, so you can match brake hardware to real world trailer use. Our team sources brake shoe pins, rollers and hardware with an emphasis on reliability and fitment clarity. We also back our listings with dimensions and application notes so you can cross check against existing hardware before ordering.

To explore more compatible hardware, browse Foundation Brakes parts at ICS Trailers
