Low Loader Brake Drum 254mm PCD Multi-Drilled

Amelia Varapodio on 22/05/2026

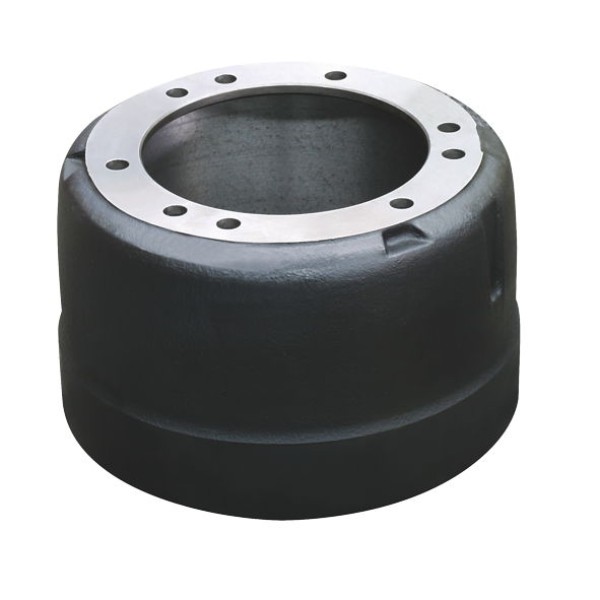

Low Loader Brake Drum 254mm PCD multi-drilled trailer brake drum
Low Loader Brake Drum 254mm PCD Multi-Drilled - Image 2

Low Loader Brake Drum 254mm PCD Multi-Drilled

$255.00

Low loader 15″ multi-drilled brake drum for common trailer axles, with 254mm PCD, 12.25″ x 7.5″ brake size, 215.9mm pilot and 9 mounting holes for workshop fitment checks.

Part number AP0859.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0859 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Low Loader Brake Drum 254mm PCD restores the drum braking surface on compatible common 15″ trailer axle brake assemblies. This multi-drilled drum suits low loader 15″ applications where the PCD, brake size, pilot and mounting hole pattern match the existing wheel-end setup.

Features

  • Multi-drilled low loader brake drum for common 15″ trailer axles
  • 254mm PCD with 9 mounting holes
  • 12.25″ x 7.5″ brake size with 215.9mm drum pilot
  • Suits Freighter, Fuwa, Colrain, TMC and similar 15″ axle applications when dimensions match

Specifications and Materials

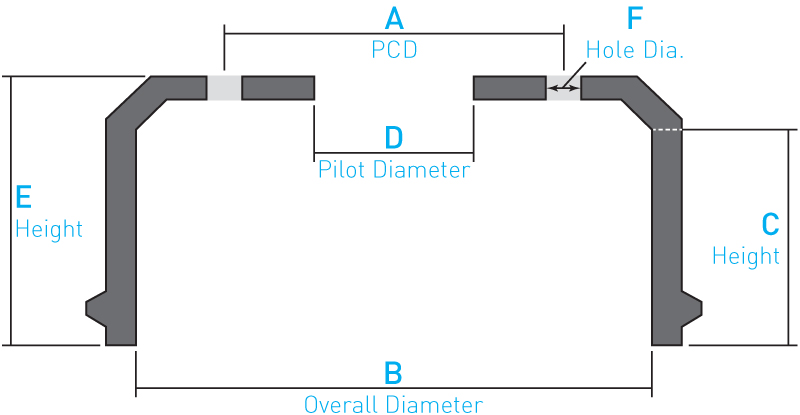

Low Loader Brake Drum 254mm PCD carries a 10″ PCD, 8.5″ drum pilot and 8.75″ drum height.

The brake size measures 12.25″ x 7.5″, while the mount hole size measures 0.625″ x 0.75″.

Check the drum pilot, spoke spider, brake shoe width and hole layout before installation.

Part number: AP0859.

See the brake drum service manual

Compatibility and Fitment

Match the 254mm PCD, 215.9mm pilot, 222.25mm drum height and 9 hole multi-drilled pattern before ordering this Low Loader Brake Drum 254mm PCD.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 01-1015, 011015, 122376, 3175, 52743-11, 5274311, 55-108, 55108, 603286, 63617, 810073, BD200, DT108, DT227, ITBD210B, SXT-01-1015, SXT011015, TD108, 3174, ITBD200, T02-0859, T020859, 603028-3, 6030283, ZTFDT108

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Shoe size match FB5046KT 12.25″ x 7.5″ lined brake shoe kit



Compliance and Safety

Inspect the drum, brake shoes, rollers, camshaft, return springs and hub face during replacement. If heat cracks, heavy scoring or uneven shoe contact appear, repair the worn brake components before returning the trailer to service.

Trailer Applications

Workshops fit this drum to compatible low loader and common 15″ trailer axle brake assemblies. It suits brake repairs where the existing drum matches the 10″ PCD, 8.5″ pilot and multi-drilled mounting pattern.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

01-1015 011015 122376
3175 52743-11 5274311
55-108 55108 603286
63617 810073 BD200
DT108 DT227 ITBD210B
SXT-01-1015 SXT011015 TD108
3174 ITBD200 T02-0859
T020859 603028-3 6030283
ZTFDT108



Why Choose ICS Trailers

ICS Trailers supplies brake drums, brake shoes and wheel-end service parts for heavy trailer foundation brake repairs.
