Disc Rotor Hendrickson 10 Hole 430mm

Amelia Varapodio on 22/05/2026

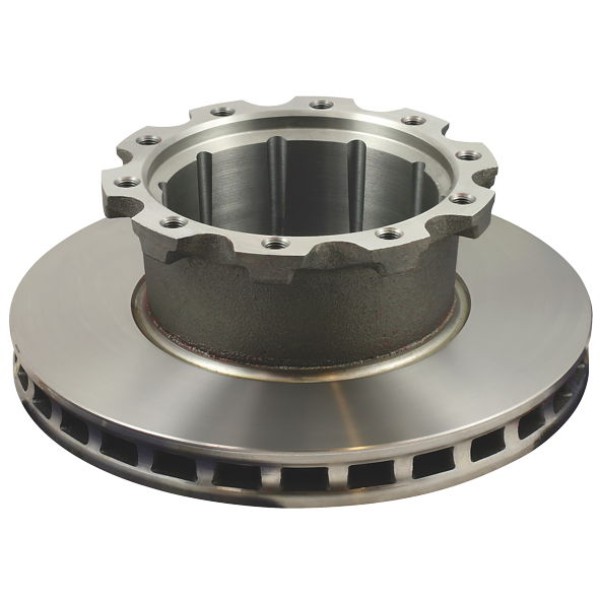

Disc Rotor Hendrickson 10 Hole 430mm Wabco Pan 22
Disc Rotor Hendrickson 10 Hole 430mm - Image 2

Disc Rotor Hendrickson 10 Hole 430mm

$330.00

Disc rotor Hendrickson 10 hole 430mm suits Wabco Pan 22 trailer brake setups, with 250mm PCD, 10xM16 holes, vented construction and cast-in pole wheel for ABS sensing, so workshops can match the rotor against Hendrickson wheel-end brake dimensions.

Part number AP3215.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP3215 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Disc Rotor Hendrickson 10 Hole 430mm restores the braking surface on compatible Wabco Pan 22 trailer disc brake wheel ends. Its vented rotor design and cast-in pole wheel suit Hendrickson axle setups where the brake and ABS sensing dimensions match the removed rotor.

Features

  • Vented 430mm disc rotor for compatible Wabco Pan 22 applications
  • 10xM16 hole pattern with 250mm PCD
  • Cast-in pole wheel with tooth face 28mm below the brake pad surface
  • Suits Axle SARN/CTA 44548 and 98815 – 026 applications

Specifications and Materials

Disc Rotor Hendrickson 10 Hole 430mm uses a vented brake rotor design for heavy trailer disc brake service.

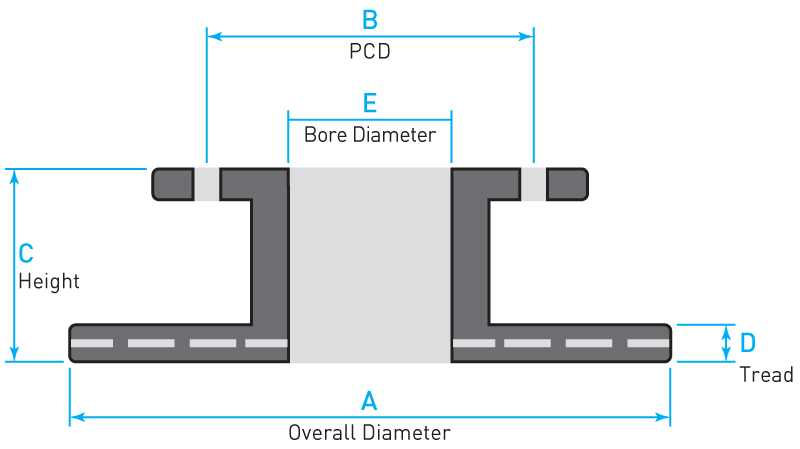

Key dimensions are A 430mm, B 250mm, C 150mm, D 45mm, E 200/220mm and 10xM16 holes.

Check the cast-in pole wheel position, brake pad clearance and wheel-end setup before fitting.

Part number: AP3215.

See the manufacturer brake systems parts guide

Compatibility and Fitment

Match the Wabco Pan 22 application, SARN/CTA 44548 axle reference, 250mm PCD, 10xM16 mounting pattern and pole wheel offset before ordering this Disc Rotor Hendrickson 10 Hole 430mm.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 98815 – 026, 98815026, CT807, F34009E, 98815016, YO1031, CDR1040, 988150116, MBR5801, 76613, SSR941, S-34172, S34172, 70007IMT, M44D76613

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Pads to suit FB4683 Disc brake pad set
Pads to suit FB4683G Genuine disc brake pad set
Bolt to suit 49SHM16200035 M16x35 rotor mounting bolt
Washer to suit CH09011 M16 high tensile washer
Related version AP3214 430mm disc rotor 200 PCD



Compliance and Safety

Inspect the rotor, pads, caliper, hub face, mounting bolts and ABS sensing area during replacement. If the rotor has heat cracks, scoring or uneven wear, also check caliper slide movement and pad condition before returning the trailer to service.

Trailer Applications

Workshops fit this rotor to compatible Hendrickson and Wabco Pan 22 disc brake wheel ends on heavy trailer axle assemblies. It suits rotor replacement where the 430mm diameter, 250mm PCD and pole wheel layout match the existing brake setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

98815 – 026 98815026 CT807
F34009E 98815016 YO1031
CDR1040 988150116 MBR5801
76613 SSR941 S-34172
S34172 70007IMT M44D76613



Why Choose ICS Trailers

ICS Trailers supplies trailer disc brake rotors, pads and wheel-end service parts for heavy vehicle brake repairs.
