Description

Overview

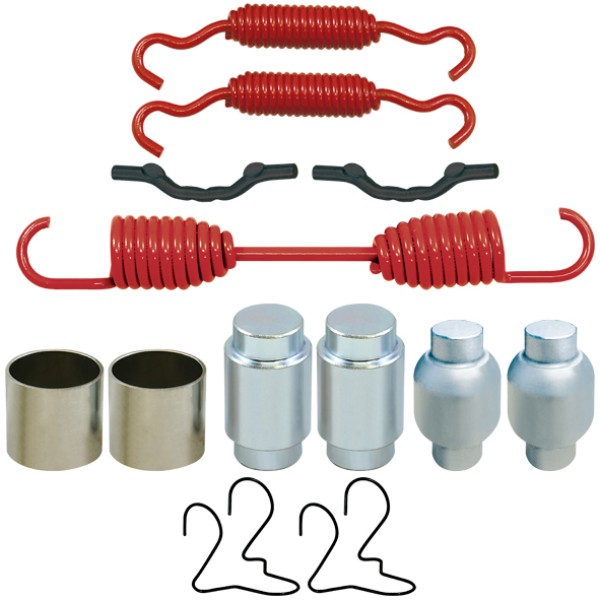

The brake shoe hardware kit Q steer axle suits heavy vehicle steer positions that run Q pattern drum foundation brakes. It provides the key replacement hardware for refitting one wheel end when you change or reline the brake shoes. As a result, you renew springs and fasteners that influence shoe return, contact stability and overall brake feel.

Features

This kit is designed for reliable braking performance and straightforward workshop installation. It also helps technicians complete overhauls with fewer picking errors and fewer repeat jobs.

• Matched hardware set for one Q style steer axle brake assembly
• New springs and fixings to support even shoe movement and consistent lining contact
• Designed for heavy truck and trailer steer axle drum brakes in on-highway service
• Supplied as a consolidated kit so parts stay together and easy to identify

Specifications and Materials

Components in this brake shoe hardware kit Q steer axle application use heavy duty steel hardware suitable for drum brake service on large commercial vehicles. Part number: FB3331. The kit is supplied for one brake position on the steer axle, so you normally order two kits per axle when servicing both sides. For technical background on Q style cam brakes and their hardware, refer to this Meritor drum brake and wheel end catalogue from the manufacturer

Compatibility and Fitment

Use this kit with drum brake assemblies that use Q style steer axle shoes on heavy trucks and trailers, including many highway prime movers and steerable trailer axles. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E2769SHD

Compliance and Safety

Correct brake shoe hardware helps the shoes return cleanly and sit square against the drum, which supports even lining wear and predictable stopping performance. Replacing tired springs and pins whenever you fit new shoes also aligns with heavy vehicle maintenance best practice and can help reduce nuisance braking issues. As a result, technicians can restore brake balance more confidently across the axle group.

Trailer Applications

Workshops use the brake shoe hardware kit Q steer axle on heavy vehicles that run Q pattern steer axle drum brakes. Typical applications include general freight prime movers, tankers, tippers and specialised trailers with steerable axles. The kit layout also suits fleet maintenance programs where you want consistent hardware across similar steer axle brake positions.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Use this table as a quick guide when you cross check existing numbers during brake overhauls or parts interpretation.
