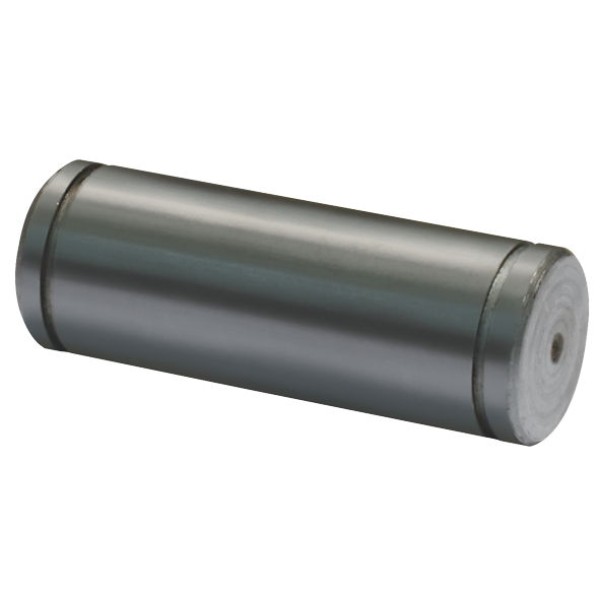

Brake shoe anchor pin 15 inch tq dana hardware locates and supports the brake shoes in 15 inch TQ Dana drum brake assemblies on heavy trailers. This pin keeps the shoes aligned against the backing plate so the linings contact the drum consistently under load. As a result, it helps maintain predictable braking performance and reduce uneven wear in high kilometre fleet service.

Features

This brake shoe anchor pin for 15 inch TQ Dana brakes is designed around fit, durability and straightforward servicing.

• Supports 15 inch TQ Dana brake shoes so they pivot correctly on the backing plate under braking
• Hardened pin body resists shear and fretting in demanding highway and off highway trailer use
• Precision 25.4mm outside diameter suits the mating bush and brake shoe hardware

Specifications and Materials

This brake shoe anchor pin suits 15 inch TQ Dana style foundation drum brakes that specify a 70mm pin length and 25.4mm outside diameter. The design suits heavy trailer applications where the anchor pin carries shear load between the brake shoes and the spider. Manufacturers typically use hardened steel for the pin body in this application to handle repeated load cycles and road contaminants. Part number: FB3320. For a deeper overview of heavy vehicle foundation drum brake components, see this manufacturer technical guide on foundation drum brakes

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-2390, BP3216, FL15-537, WT3216

Compliance and Safety

Correct brake shoe anchor pin condition helps drum brakes perform properly and supports heavy vehicle roadworthiness expectations. Inspect the pin and bushes whenever you reline 15 inch TQ Dana brakes or notice uneven shoe wear. Replace any pin that shows scoring, step wear or distortion, then follow axle and brake maker procedures so the shoes seat squarely and release cleanly.

Trailer Applications

The brake shoe anchor pin 15 inch tq dana design commonly appears on multi axle semi trailers, dollies and other heavy haul combinations using 15 inch drum brakes. A correctly matched anchor pin helps the brake shoes track true in the drum so stopping distances remain consistent across the fleet.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle parts, so we understand how brake hardware such as anchor pins affects trailer uptime. We can also help match brake shoe anchor pin 15 inch tq dana hardware with related items, so you can source compatible parts from one supplier. In addition, our team can help you confirm fitment against your axle, hub and brake information before you commit to a bulk order. Browse more options in the Foundation Brakes category at ICS Trailers
