Description

Overview

Brake shoe hardware kit Q brake supports routine servicing of Q pattern foundation drum brakes on heavy trailers and trucks. By grouping the key springs, pins and retainers into one kit, technicians can renew worn hardware in a single job card. As a result, you can help restore consistent shoe return and reduce the chance of uneven braking across an axle set.

Features

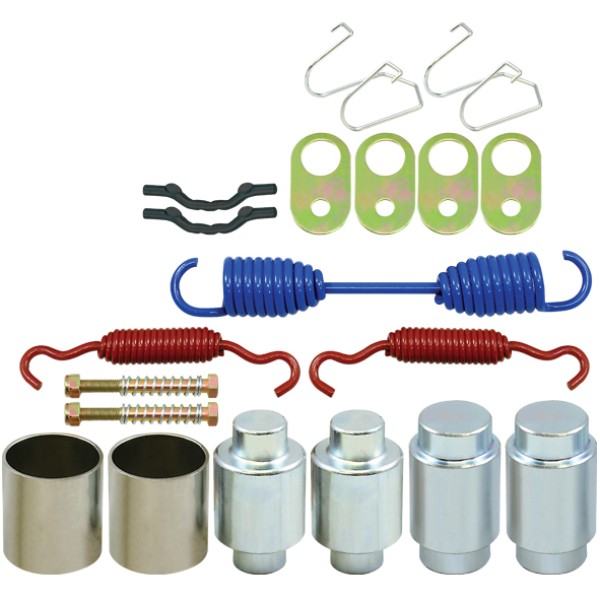

This brake shoe hardware kit Q brake includes the small parts normally required for one wheel end. Matched return and hold-down springs help the shoes retract cleanly after each brake application, while correctly sized pins and retainers keep the shoes located on the Q brake spider. This setup helps make overhauls more repeatable across a fleet.

Specifications and Materials

This kit suits Q style S-cam drum brakes where the original equipment specifies a dedicated brake shoe hardware kit. Components use high strength spring and carbon steels selected to handle heavy vehicle brake temperatures when installed and maintained to the brake maker’s instructions. Part number: FB3333. For background on drum brake design and components, refer to this drum brake technical overview from an independent engineering reference source

Compatibility and Fitment

This brake shoe hardware kit Q brake suits heavy vehicle axles originally equipped with Q pattern foundation drum brakes that call for this style of hardware. Compare the supplied springs, pins and retainers with the removed parts before you install them. Then follow the brake manufacturer’s service manual and any fleet procedures, finishing with a controlled brake test to confirm balanced braking on the vehicle.

Compliance and Safety

Correct brake shoe hardware is critical for keeping lining contact and shoe return within the limits expected by heavy vehicle braking standards. When you install this brake shoe hardware kit Q brake as part of a complete, correctly specified Q drum brake assembly, it supports reliable brake performance. Regular inspection also helps identify fatigue or corrosion before it affects stopping distance.

Trailer Applications

Workshops typically use this style of brake shoe hardware kit on prime movers, rigid trucks and semi-trailers fitted with Q pattern drum brakes. Fleet maintenance teams can keep standardised hardware on the shelf, so they can service one wheel end at a time without mixing unmatched springs or pins. This helps maintain predictable brake response across vehicles.

Cross-reference and Suitability

No alternative part numbers have been formally validated for this brake shoe hardware kit Q brake at this time. Instead, use original brake manufacturer catalogues and fleet specifications when checking interchangeability, and consult your usual ICS Trailers contact if you need help matching hardware to existing shoes and drums.

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle brake and suspension parts that suit Australian freight and road conditions. Their team can help you match brake shoe hardware kits to existing drums, shoes and slack adjusters so overhauls stay consistent across the fleet. Stocking dedicated Q brake hardware alongside shoes and drums also helps minimise downtime during scheduled maintenance or defect rectification. Browse Foundation Brakes at ICS Trailers
