Description

Overview

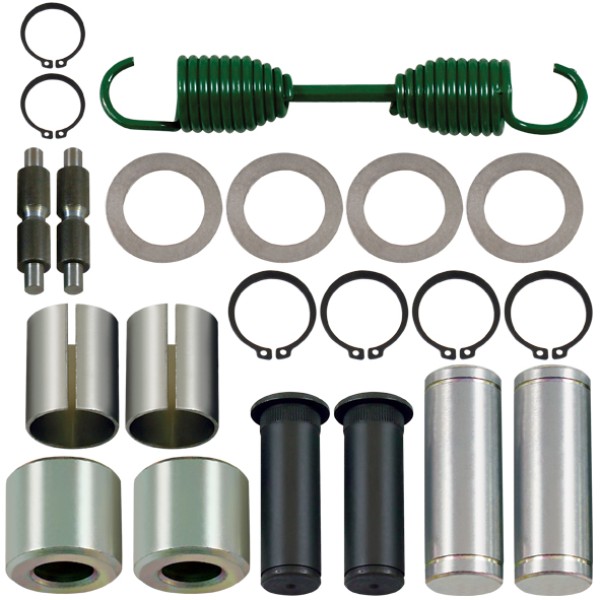

This brake shoe hardware kit Dana restores key return and hold-down components in heavy trailer drum brakes that use Dana style S-cam layouts. It provides a matched set of springs, clips and pins for one wheel end so technicians can renew hardware at the same time as linings. This helps keep brake shoe movement more consistent after service and can support a more even pedal response under load.

Features

This brake shoe hardware kit Dana suits fleet maintenance and defect repairs where renewing hardware is part of the job.

• Complete hardware set for one trailer wheel end
• Dana style S-cam foundation brake compatibility
• High strength metal springs, clips and retainers
• Layout suited to standard workshop brake relines

Specifications and Materials

This brake shoe hardware kit Dana groups the essential hardware for one heavy trailer drum brake into a single part number so ordering stays simple for parts interpreters.

Part number: FB3351.

• Suits Dana style S-cam drum brake assemblies on suitable trailer axles
• Kit quantity sized to service one brake on a heavy trailer
• Metal hardware components designed for repeated brake heating cycles
• Intended for on-road heavy vehicle trailer applications

In addition, for more background on heavy vehicle foundation brake hardware and service life, see this technical paper on heavy vehicle foundation brakes

Compatibility and Fitment

Use this kit on trailer axles built with Dana style S-cam brakes where the original shoe hardware matches this layout. Many fleets also specify this kit during every reline so old springs and clips do not stay in service with new linings.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-2402HD

Compliance and Safety

Brake hardware affects stopping performance, so inspect and replace worn or distorted components during braking system work. Follow the axle or trailer manufacturer procedures, torque settings and lubrication points during installation. Renew hardware in complete axle sets so brake balance stays even and compliance tests remain consistent.

Trailer Applications

Fleets use brake shoe hardware kit Dana on highway semi trailers, dog trailers and other heavy freight equipment that run Dana style axles. It also suits operators who standardise on one hardware pattern across multiple trailers to keep stock levels simpler while still renewing safety critical parts on schedule.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
