Description

Overview

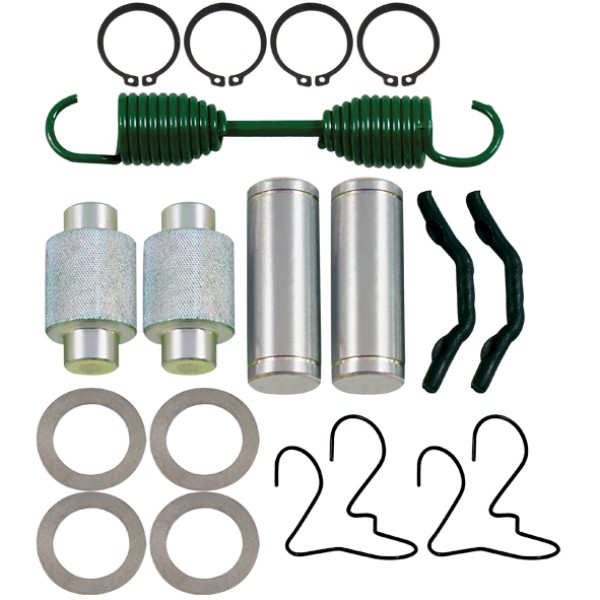

Brake shoe hardware kit Dana suits heavy trailer drum brake service and includes the matched pins, springs and small parts needed to restore shoe movement and return action at one wheel end. This kit helps keep Dana foundation drum brakes operating consistently under heavy loads. It also supports predictable brake response after a shoe reline or hardware change-out.

Features

This brake shoe hardware kit Dana helps maintain consistent braking performance by letting technicians replace tired hardware in one service operation. Because the parts arrive together, workshops spend less time matching individual springs and pins from multiple bins. Technicians can fit the kit during a scheduled brake reline to help minimise comeback repairs and downtime, and the kit format can simplify stock control for fleet maintenance teams.

Specifications and Materials

Part number: FB3350.

This brake shoe hardware kit suits Dana-style foundation drum brakes on heavy trailers and semi-trailers when the cross-reference matches the existing hardware. The components suit typical heavy vehicle drum brake conditions, including corrosion, vibration and high cycle loads.

You can review this industry brake servicing guide for more background on heavy vehicle foundation brake inspection and maintenance

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-3373HD

Compliance and Safety

Follow current heavy vehicle brake service procedures and the OEM documentation for the axle and brake assembly. Clean the contact surfaces, check shoe and drum condition, and confirm that all return and hold-down hardware moves freely after installation. Then adjust the brakes and confirm correct operation with the lining fitted.

Trailer Applications

This brake shoe hardware kit Dana suits heavy trailers and semi-trailers that run Dana drum brake axles when the cross-reference confirms compatibility. Many fleets include it in standard brake reline practice so technicians renew small wear components at the same time as linings. Using a matched kit across an axle group can also help keep brake response even between wheel ends.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Technicians should still confirm axle model, brake size and hardware layout before relying on any cross-reference during a service.

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle trailer parts, so our team understands how foundation brake hardware affects braking performance and uptime. We source brake shoe hardware kits from established suppliers and cross-check applications for common Australian trailer and semi-trailer combinations.

For related components, browse the Foundation Brakes category at ICS Trailers for more options.
