Description

Overview

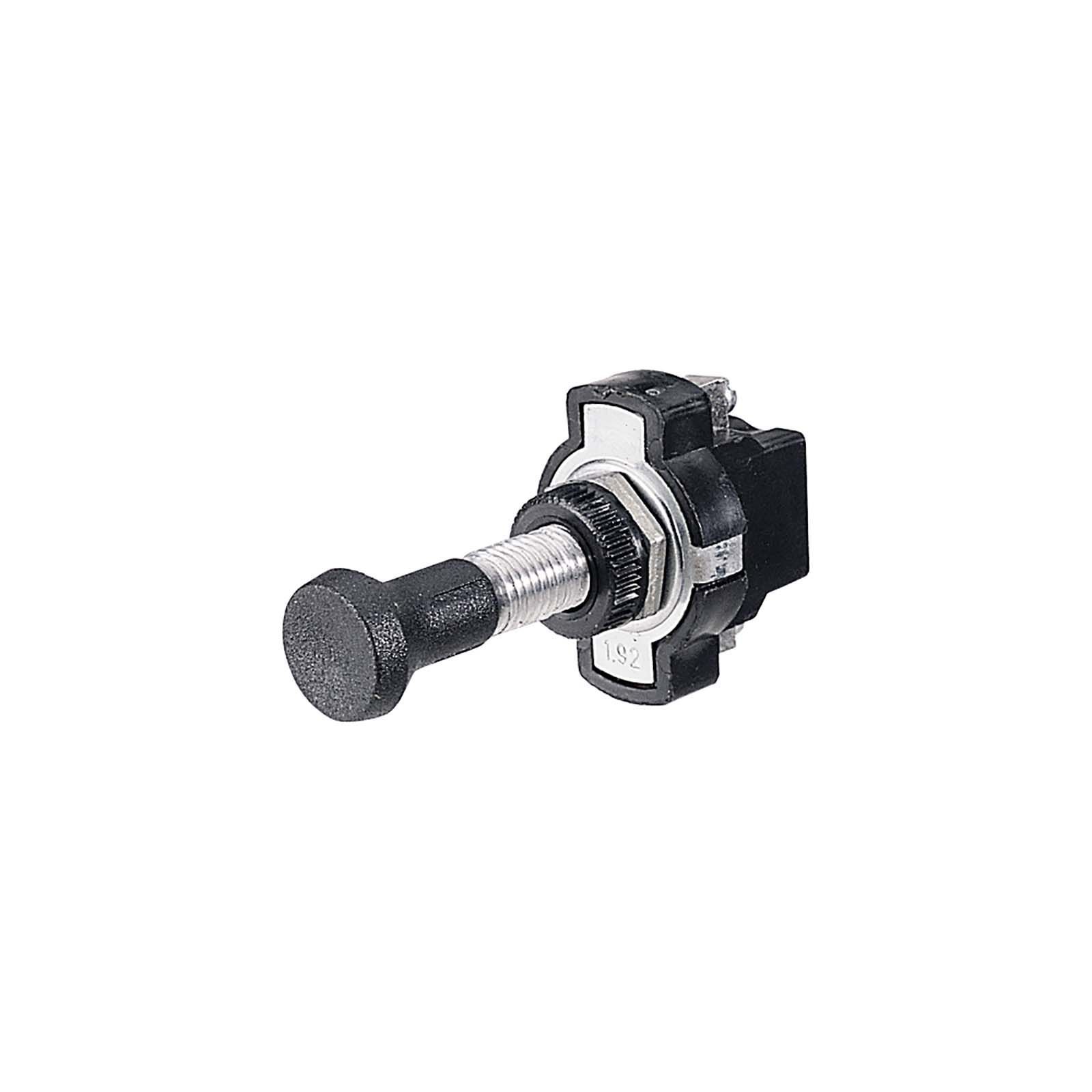

The Narva long shank push pull switch gives Off/On control for one low-voltage circuit. It suits panels that need a longer clamping range than a standard short-shank switch.

This SPST switch uses screw terminals. It suits 12V and 24V circuits when the load stays within the rated current.

Features

• SPST Off/On switching function.
• Long shank design with 0.5mm to 12mm clamp length.

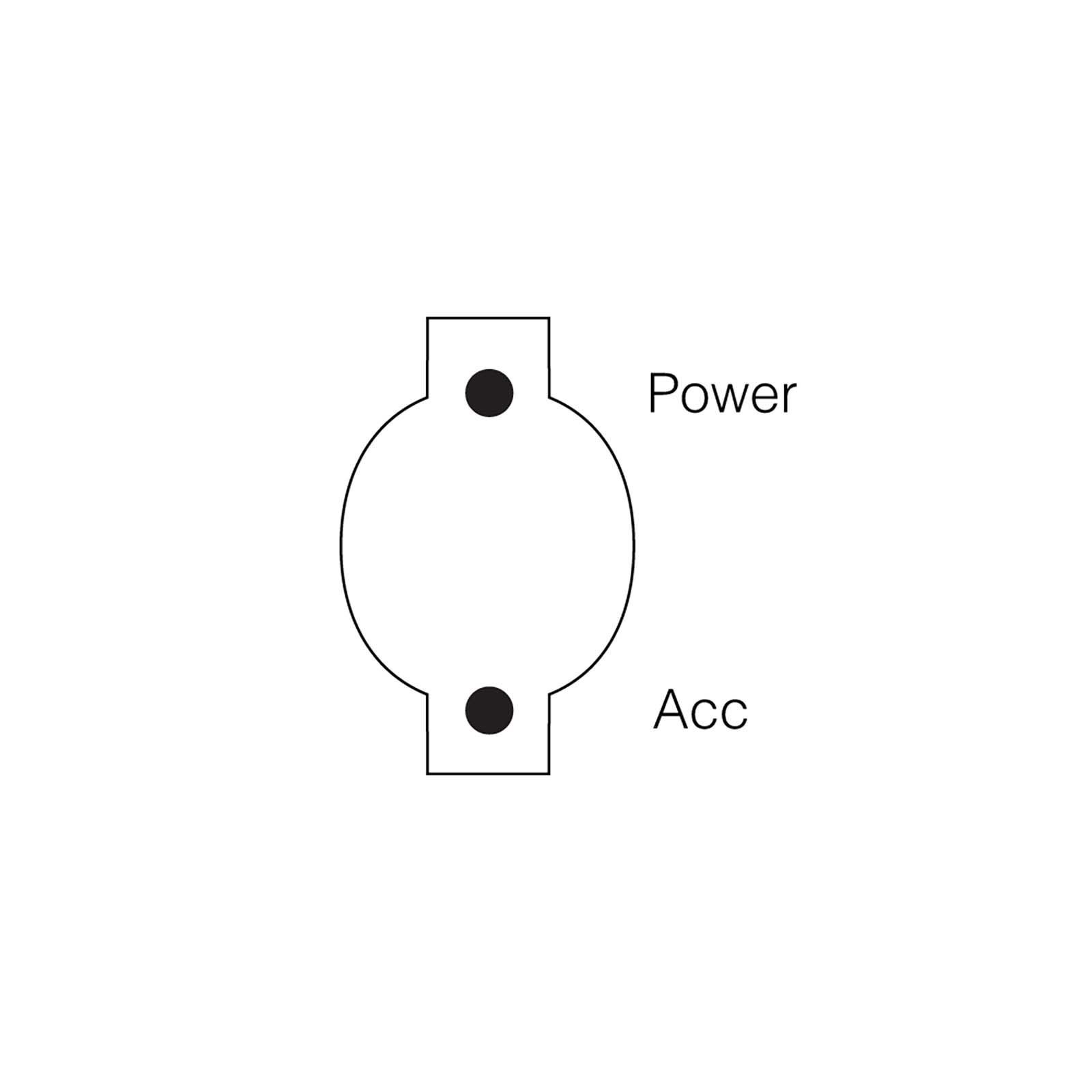

• Screw terminals for secure wire connection.
• 9mm diameter mounting opening.

Specifications and Materials

This blister pack contains 1 long shank push/pull switch. It carries a 16A rating at 12V and an 8A rating at 24V.

Match the panel thickness, circuit voltage and load current before fitting. Use suitable wire size and fuse protection for the accessory being controlled.

Part number: 60024BL.

Refer to manufacturer product information

Compatibility and Fitment

Check the panel thickness before ordering. The clamp length covers 0.5mm to 12mm panels.

Confirm the 9mm mounting hole and rear clearance. Screw terminals need room for the wire path.

The main mismatch risk is panel depth. A short switch may not suit thicker panels.

Compliance and Safety

Isolate the circuit before wiring. Tighten the screw terminals and check that no bare wire is exposed.

After fitting, test the push and pull action. The knob should move cleanly between Off and On.

Do not exceed the current rating. Use a relay where the accessory load is higher than the switch rating.

Trailer Applications

Workshops fit push/pull switches to trailer, vehicle and service body panels. They suit lights, fans, pumps and other auxiliary controls.

The long shank format helps when the switch must pass through thicker trims, panels or mounting plates.
