Description

Overview

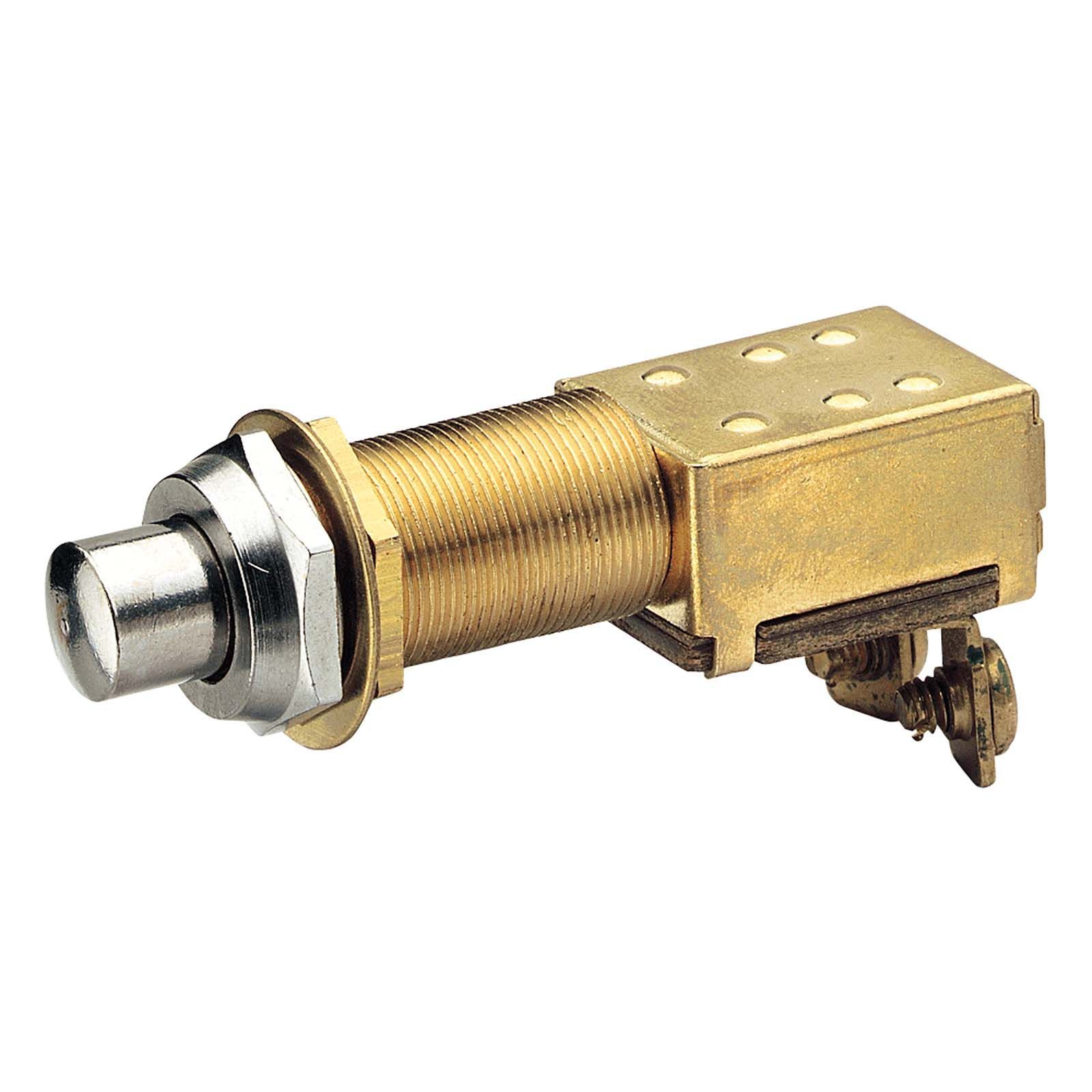

The Narva marine push button switch gives momentary control of one circuit. It suits marine, trailer and vehicle panels that need a spring-return push button.

This SPST switch has brass construction and a chrome knob. It is rated for 12V and 24V systems, with different amperage limits for each voltage.

Features

• SPST momentary On switching function.
• Brass construction with chrome knob.

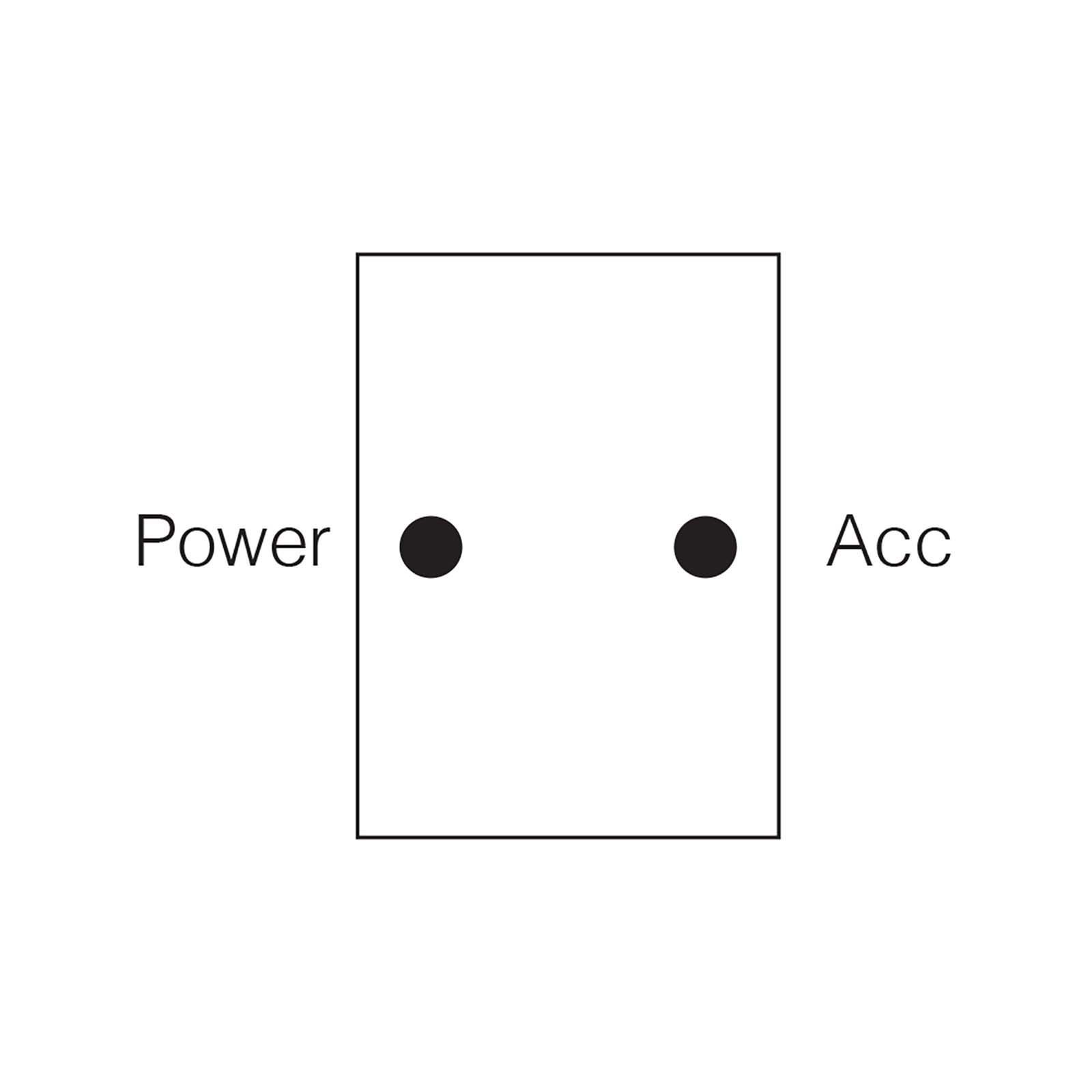

• Screw terminals for secured wire connections.
• 16mm diameter mounting opening.

Specifications and Materials

This blister pack contains 1 marine push button switch. It carries a 15A rating at 12V and a 7.5A rating at 24V.

Match the circuit voltage, load current and panel hole before fitting. Use suitable wire size and circuit protection for the accessory being controlled.

Part number: 60031BL.

Refer to manufacturer product information

Compatibility and Fitment

Check the panel opening before fitting. The switch needs a 16mm diameter mounting hole.

Confirm the available depth behind the panel. Screw terminals need enough clearance for secure wiring.

The main mismatch risk is load rating. Use a relay if the connected accessory exceeds the switch rating.

Related Parts

Check the related service parts below against the switch setup before ordering.

Compliance and Safety

Isolate the circuit before wiring. Tighten the screw terminals firmly and check that no bare wire is exposed.

Test the spring-return action after installation. The button should return cleanly when released.

Keep wiring away from heat, sharp edges and moving parts. Secure loose wiring behind the panel.

Trailer Applications

Workshops use momentary push button switches for accessories that should operate only while pressed. Common examples include horns, start circuits, wash pumps and temporary auxiliary controls.

The chrome knob suits exposed switch panels where a simple push action is preferred over a toggle or rocker switch.

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical parts, switches, terminals, fuses and wiring items for 12V and 24V repair work. Match the Narva marine push button switch to the panel opening, voltage and load before ordering.
