Description

Overview

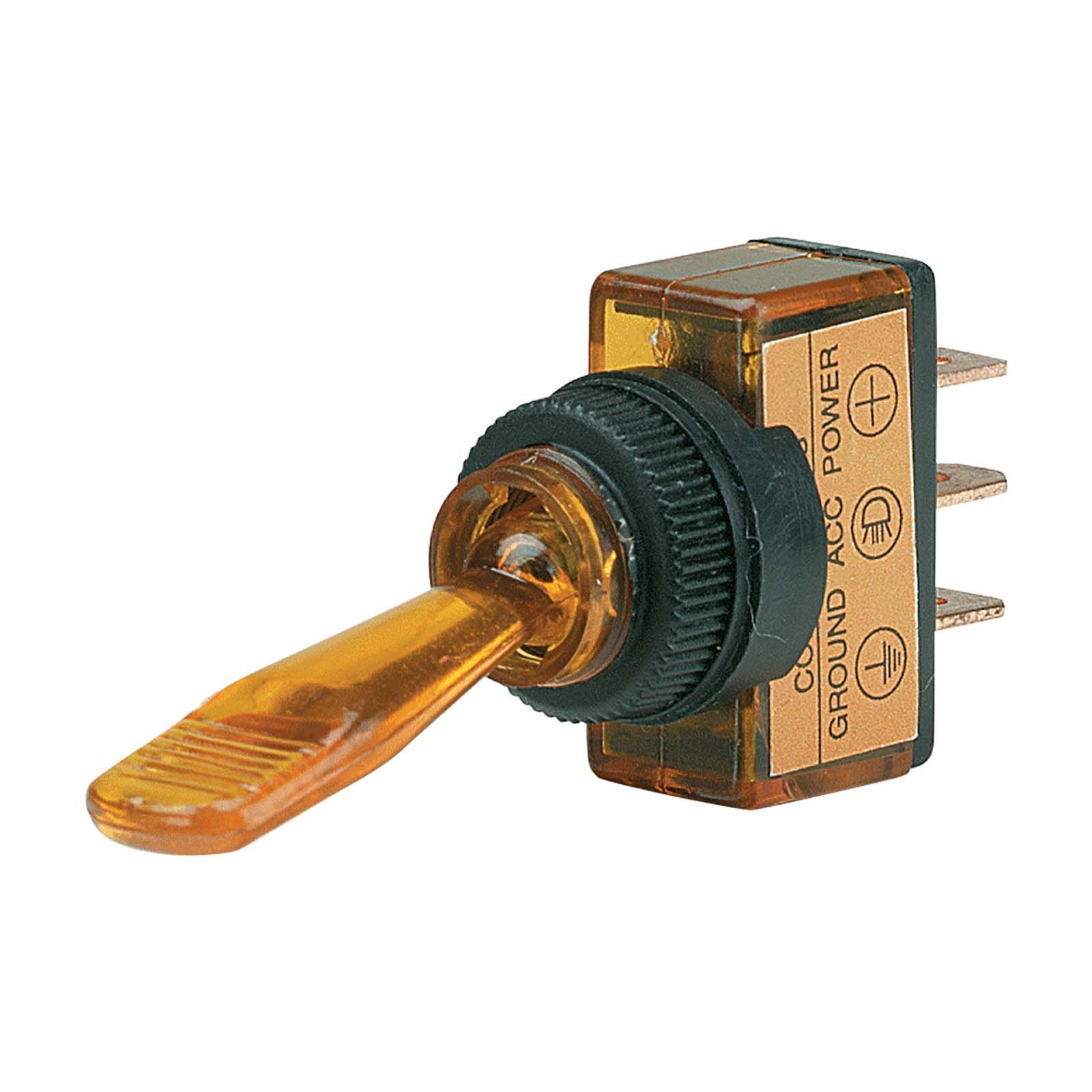

The Narva 12V amber illuminated toggle switch controls one 12V circuit with a clear Off/On action. It suits accessory, lighting and auxiliary panels that need manual switching with amber illumination.

This SPST switch is made for 12V use only. Check the load, panel hole and terminal style before fitting.

Features

• SPST Off/On switching function for one controlled circuit.
• Amber illuminated toggle for 12V switch panels.
• 20A amperage rating for 12V use only.

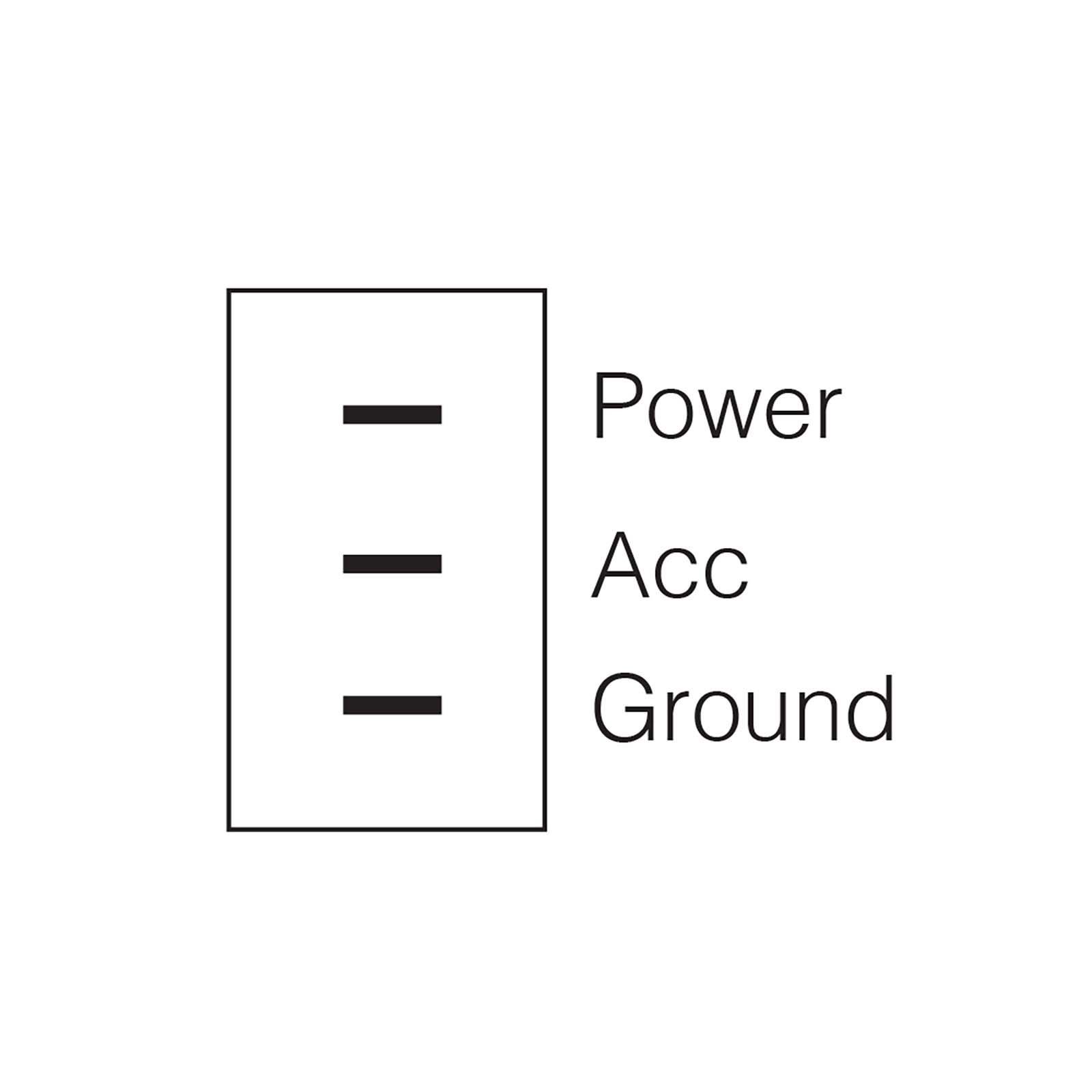

• Push-on terminals with a 12.5mm mounting opening.

Specifications and Materials

This blister pack contains 1 illuminated toggle switch. The switch uses push-on terminals and fits a 12.5mm diameter panel opening.

Match the cable size, fuse rating and load to the circuit being controlled. Do not use it on 24V systems.

Part number: 60050BL.

Refer to manufacturer product information

Compatibility and Fitment

Confirm the panel opening before fitting. Also check the terminal clearance behind the switch panel.

The main mismatch risk is voltage. This switch is for 12V circuits only.

Do not fit it to loads above the rated current. Use a relay where the accessory load exceeds the switch rating.

Compliance and Safety

Isolate the circuit before wiring. Crimp the push-on terminals firmly and protect the circuit with the correct fuse.

After fitting, test the Off and On positions. Check that the amber illumination works as expected.

Route wiring away from heat, sharp edges and moving parts. Secure loose wiring behind the panel.

Trailer Applications

Workshops fit illuminated toggle switches to trailer and vehicle accessory panels. Typical uses include lights, beacons, work lamps, fans and pumps.

The amber light helps identify the switch state in low-light cabins, service bodies and workshop-built panels. It is useful where operators need fast visual confirmation.

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical parts, switches, terminals, fuses and wiring items for 12V repair work. Match the Narva 12V amber illuminated toggle switch to the panel opening and circuit rating before ordering.
