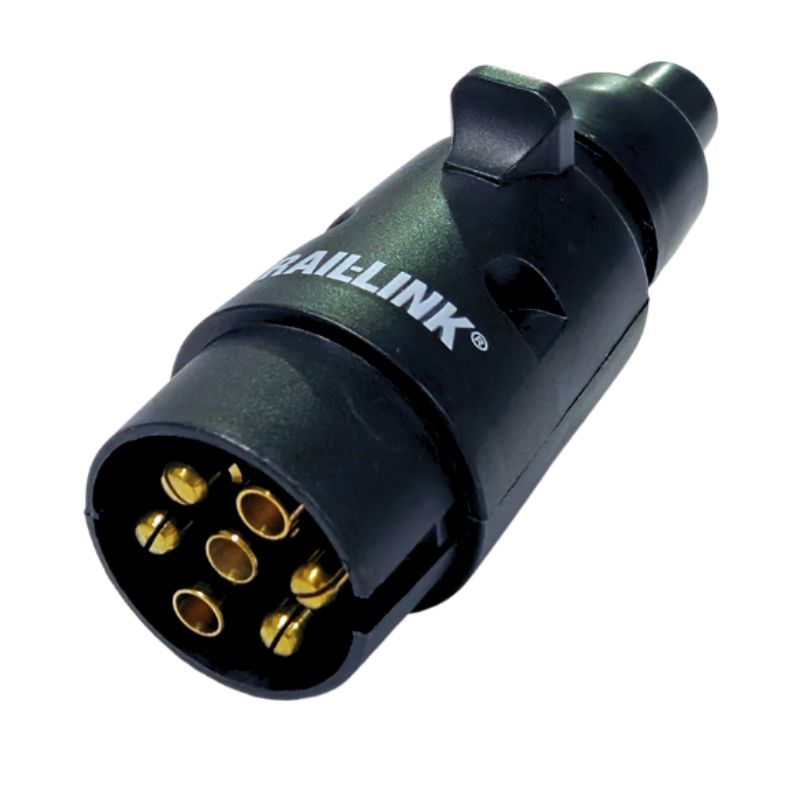

7 Pin DIN Plastic Trailer Plug Trail-Link
7 Pin DIN Plastic Trailer Plug Trail-Link
$14.00
Australian Standard 7 pin DIN round trailer plug with a non-conductive plastic body and screw-type electrical contacts. Includes the correct contact screws and wiring diagram.
Part number 500-102.
Description
Overview
The 7 pin DIN plastic plug provides a replaceable round electrical connection for Australian truck and trailer lighting circuits. Its non-conductive body and screw-type contacts suit repairs where a damaged plug needs to be rewired without replacing the complete electrical suzi lead.
Features
- Australian Standard 7 pin round plug configuration.
- High-quality non-conductive plastic body.
- Includes the correct contact screws for connecting the seven wires.
- Includes a wiring diagram with pin functions and wire colours.
Specifications and Materials
Product type: 7 pin DIN round trailer plug.
Body material: non-conductive plastic.
Connection type: screw contacts.
Includes contact screws and wiring diagram.
Part number: 500-102.
| Pin | Wire colour | Function |
|---|---|---|
| 1 | Yellow | Left turn and hazard |
| 2 | Black | Reversing signal |
| 3 | White | Earth, return or ground |
| 4 | Green | Right turn and hazard |
| 5 | Blue | Service brakes or spare |
| 6 | Red | Stop lamps |
| 7 | Brown | Number plate and marker lamps |
See the official Trail-Link product guide
Compatibility and Fitment
Match the existing connector to the Australian 7 pin DIN round layout before ordering. Do not confuse this plug with a 7 pin SAE or Euro connector, as the contact arrangement and matching socket differ. Compare the pin positions, socket shape and wiring functions before transferring the wires.
Related Parts
Check the related service parts below against the truck and trailer connection setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Socket to suit | 600-102 | 7 pin DIN plastic socket |
| Socket to suit | 600-104 | 7 pin DIN metal socket |
| Related version | 500-102M | 7 pin DIN metal plug |
| Used with | 700-102 | Universal plug retainer catch |
Compliance and Safety
Disconnect the electrical supply before opening or wiring the plug. Follow the supplied pin diagram, keep loose wire strands away from neighbouring contacts and confirm that the earth connection is secure. Reassemble the housing firmly and test every trailer lighting function before returning the vehicle to service.
Trailer Applications
Workshops fit this plug to electrical suzi leads connecting prime movers, rigid trucks and towing vehicles to trailers. It supports the standard lighting, indicator, stop, reversing, marker and auxiliary circuits carried through an Australian 7 pin round connection.
Why Choose ICS Trailers
Seven-pin plugs can share a similar appearance while using different contact layouts, so the DIN round configuration and matching socket style must be identified correctly. ICS Trailers can help compare the old plug face, wire colours and socket arrangement before supply. Send through clear photos of the connector and existing wiring when the original markings are damaged or the plug type is uncertain.
