4 Hole Cable Clamp with Black Carabiner Trail-Link
4 Hole Cable Clamp with Black Carabiner Trail-Link
$36.00

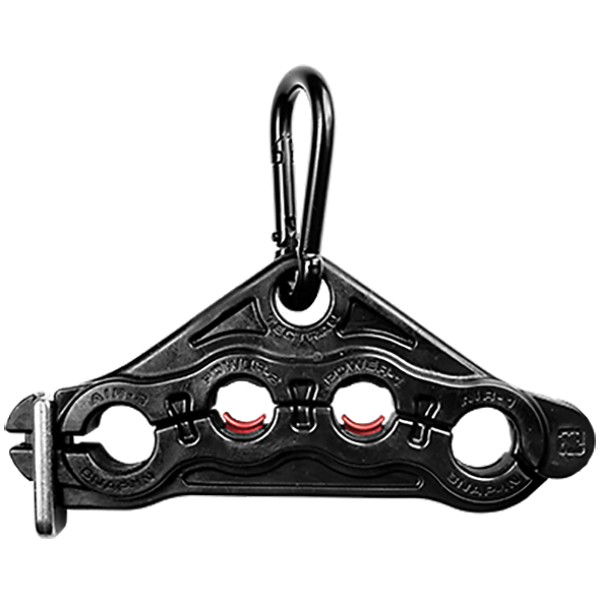

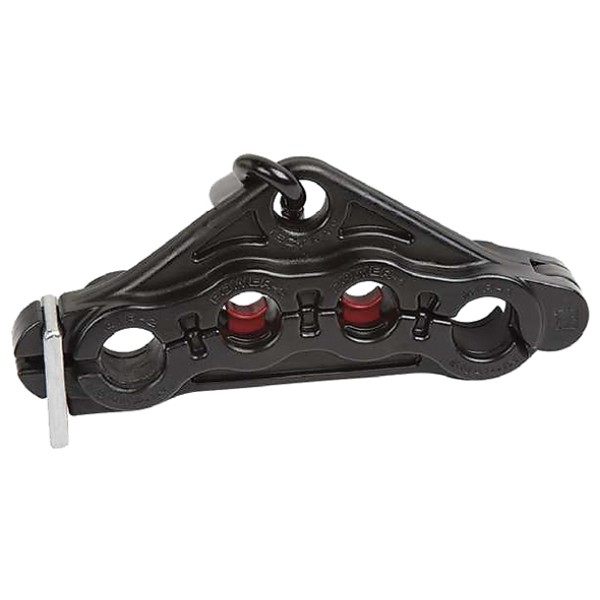

Four-hole clamp for suspending up to four air, electrical and EBS coils from a compatible pogo stick or suspension hanger. Includes a black E-coated carabiner and 2 red spacers for optional diameter adjustment.
Part number 900-104.
Description
Overview
The Trail-Link 4 hole cable clamp secures up to four suzi coils and cables while suspending them from a pogo stick or spring hanger behind the truck cab. Its screwless closure allows air, electrical and EBS lines to be added or removed without dismantling the clamp.
Features
- Four cable positions for red air, blue air, electrical and EBS coils.
- Includes black E-coated carabiner for attachment to a pogo stick or suspension hanger.
- Includes 2 red spacers for optional cable diameter adjustment.
- Screwless clip-clamp closure for quick access to each line.
Specifications and Materials
Product type: four-hole suzi coil and cable suspension clamp.
Capacity: up to four cables or coils.
Included items: black E-coated carabiner and 2 red diameter-adjustment spacers.
Mounting method: carabiner attachment to a compatible pogo stick or suspension hanger.
Part number: 900-104.
See the official Trail-Link product guide
Compatibility and Fitment
Check the number and outside diameter of the suzi coils before closing the clamp. Use the supplied red spacers where a smaller cable requires additional support. Also confirm that the pogo stick or suspension hanger provides a suitable attachment point for the carabiner and allows the coils to move without contacting the chassis or propshaft.
Related Parts
Check the related service parts below against the truck and trailer connection setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Used with | 900-102 | Suzi suspension spring with loop |
| Used with | 900-107 | 1016mm chrome-plated pogo stick |
| Used with | AB7809 | Long-tail red and blue suzi coil set |
| Used with | AB7810 | Short-tail red and blue suzi coil set |
| Used with | AB7809P | Premium long-tail suzi coil set |
| Used with | AB7810P | Premium short-tail suzi coil set |
| Related version | CA3537 | Hose suspension clamp kit |
Compliance and Safety
Confirm that every clamp position has closed fully and that the carabiner is securely engaged before operation. Route the suspended coils clear of the catwalk, chassis, propshaft, exhaust components and sharp edges. Inspect the clamp, spacers and carabiner whenever the coils show rubbing, stretching or uneven support.
Trailer Applications
Prime movers and articulated vehicle combinations use this clamp to organise red and blue air coils, electrical suzi leads and EBS coils between the truck and trailer. Workshops also fit it when replacing damaged coil-support hardware or moving the connection lines onto a pogo stick or spring suspension arrangement.
Why Choose ICS Trailers
The main selection checks are the number of lines being supported, their outside diameters and the available hanger arrangement behind the cab. ICS Trailers can help compare the clamp against the existing air, electrical and EBS coils before supply. Send through photos of the current support setup and measurements across the cables when the spacer requirement or attachment style is unclear.
