Description

Overview

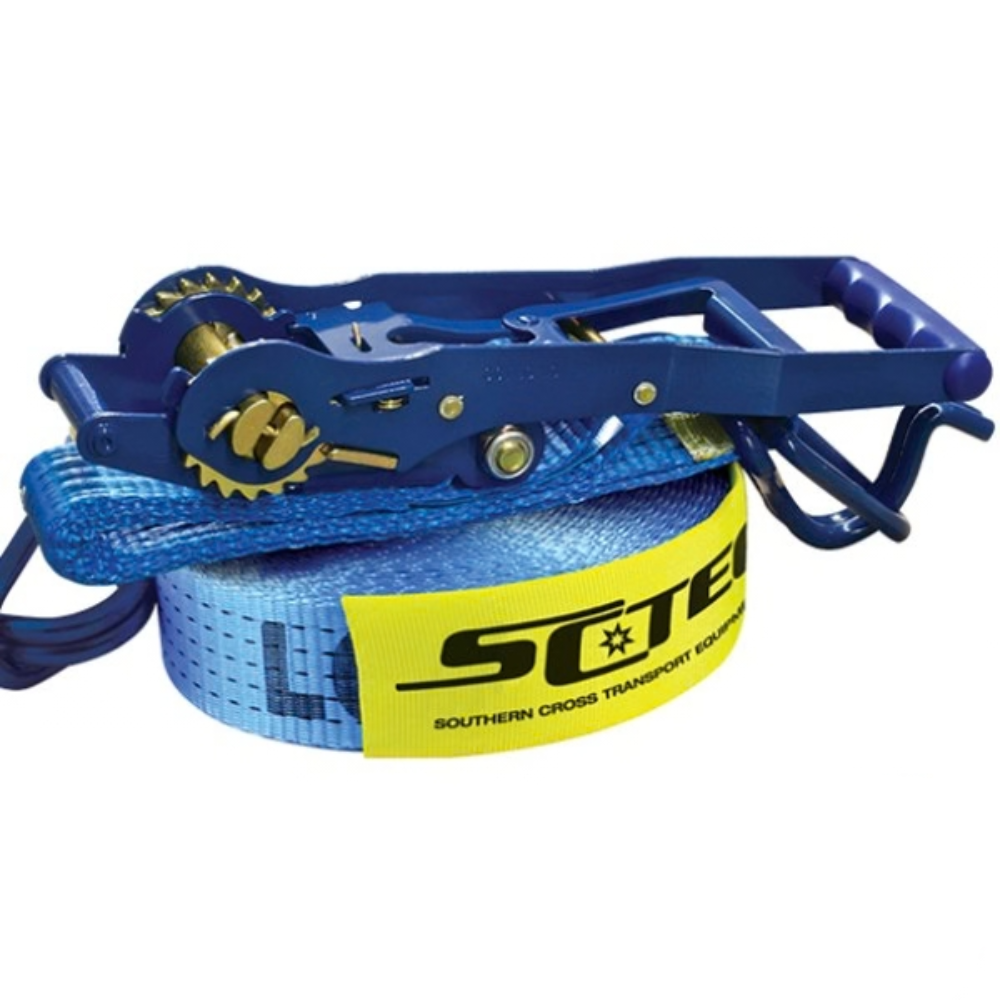

Reverse Action Ratchet Strap 50mm x 13m gives you faster, safer tensioning for heavy vehicle loads. The pull-down handle suits overhead tie-downs, so your arms work with gravity instead of against it. It also helps when you need repeatable tension across multiple straps. Because the ratchet action stays controlled, you can tighten and release with less effort.

Features

• Reverse action ratchet design, so you pull down to tension.
• Long handle for extra leverage, which reduces fatigue.
• Protective wear sleeve, so the webbing resists abrasion.
• Hook and keeper ends to suit common trailer tie-down points.

Specifications and Materials

This Reverse Action Ratchet Strap 50mm x 13m uses 50mm wide webbing with a 13 metre strap length and a rated 2500kg lashing capacity.

The webbing uses nylon and polyester fibres, and the ratchet and end fittings use metal hardware.

The reverse action mechanism pulls down when you tension the strap, not up like a conventional ratchet.

Part number: CA4895HD.

For general restraint principles, read the industry load restraint guide which explains inspection and restraint basics.

Compatibility and Fitment

This Reverse Action Ratchet Strap 50mm x 13m suits tie-down tasks that use 50mm webbing and hook style end fittings. If your anchor points sit high, the reverse action handle can make tensioning easier. Also confirm the lashing capacity suits the load plan, not just the strap itself. When loads have sharp edges, add corner protection, otherwise the webbing can cut.

Compliance and Safety

This strap assembly is listed as complying with AS/NZS4380 for webbing load restraint. Even so, inspect the webbing and stitching before each trip. If you see cuts, heat damage, or broken fibres, replace the strap instead of patching it. Also keep the ratchet clean, because grit can stop the pawls from seating. After you tension, lock the handle fully, then stow loose tail so it cannot flap.

Trailer Applications

Use this Reverse Action Ratchet Strap 50mm x 13m on curtainsiders, tautliners, flat tops, and drop decks. It suits pallets and general freight, as well as awkward loads that need extra strap length. If you run loads all day, the pull-down action can reduce shoulder strain. For best life, keep straps dry where possible, and store them away from oils and acids.

Cross-reference and Suitability

No verified equivalent part numbers were identified for this item, so match by strap size, capacity, and end fitting style.

Why Choose ICS Trailers

ICS Trailers supplies restraint gear that fits real trailer work. You can also ask for help choosing strap length, edge protection, and safe tie-down methods. That way you get the right setup before the job leaves the yard.
