Description

Overview

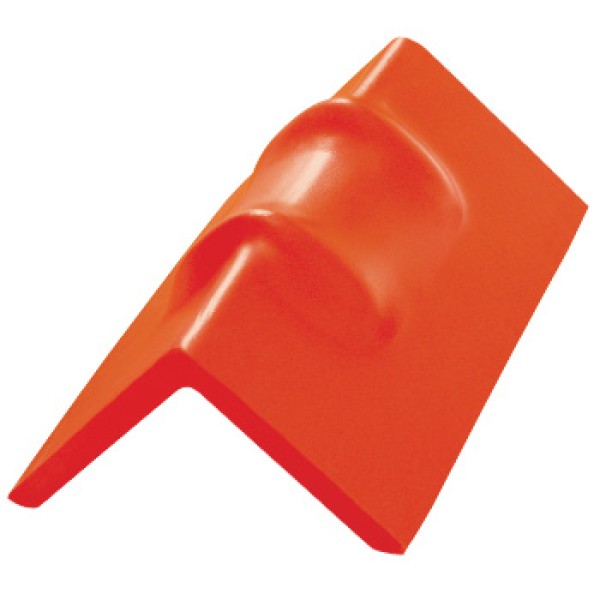

Chain Pallet Angle Load Protector 150 x 120 x 100mm helps shield load edges when you tension transport chain over pallets and freight. It sits between the chain and the load, so you reduce wear, dents and point loading during normal restraint use. Because it is a rigid corner protector, it also helps keep the chain path consistent when you are setting up lashings on awkward shapes.

Features

• Helps protect cartons, pallets and steel edges from chain contact
• Rigid profile so it stays positioned during tensioning
• Injection moulded polypropylene with UV stabilisation
• Compact size for easy storage in toolboxes and chain buckets

Specifications and Materials

• Suits: chain load restraint use
• Material: impact resistant polypropylene (UV stabilised)
• Overall size: 150 x 120 x 100mm
• Type: pallet angle style edge protector

Part number: CA4878P.

See polypropylene material overview for general material guidance and processing context.

Compatibility and Fitment

Chain Pallet Angle Load Protector 150 x 120 x 100mm works best wherever a chain crosses a vulnerable edge and you want a tougher contact surface. For best results, seat it squarely against the load before you tension the chain, and then re-check placement after the first pull down. If the chain slides during travel, add additional protection points rather than over-tensioning the lashing.

Compliance and Safety

This protector does not increase the rated capacity of your chain or tensioning gear. Instead, it supports safer restraint setups by reducing edge damage that can lead to slack or load movement. Inspect the protector before use, and replace it if you see cracking, deformation or sharp burrs that could cut packaging.

Trailer Applications

Chain Pallet Angle Load Protector 150 x 120 x 100mm suits everyday restraint tasks on flat tops, drop decks, skel trailers and general freight trailers. It also fits well for machinery tie-downs where chains contact painted surfaces, timber dunnage or pallet corners. When you carry mixed freight, keeping a few of these angles on hand can reduce damage claims and speed up securement.

Cross-reference and Suitability

No verified cross-reference part numbers were identified for this item, so selection should be made by function and size.
