Description

Overview

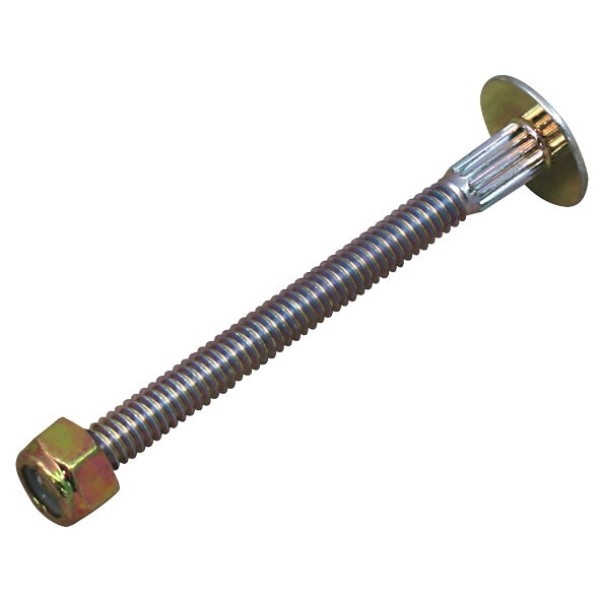

The TODCO door bolt assembly is a 1/4″ x 3″ threaded fastener assembly for TODCO roll-up door hardware. Compare the diameter, length, wide round head and ribbed neck profile when replacing an existing door bolt.

Features

• 1/4″ nominal bolt diameter.
• 3″ nominal bolt length.
• Wide round head with ribbed neck profile.
• Matching hex nut included.

Specifications and Materials

Product type: roll-up door bolt assembly.

Nominal size: 1/4″ x 3″.

Supplied as a bolt and matching hex nut assembly.

Part number: CV3585.

See the TODCO door owner’s manual for roll-up door fastener inspection and maintenance guidance

Compatibility and Fitment

Match the original 1/4″ diameter, 3″ length, head diameter, ribbed neck profile and nut arrangement. A different length or head profile may not seat correctly in the existing door hardware.

Compliance and Safety

Inspect nearby fasteners while this assembly is removed and replace damaged or loose hardware. Keep clear of the counterbalance spring system unless trained for that work. After fitting, confirm the nut is secure and the bolt does not interfere with door travel.

Trailer Applications

Used in TODCO roll-up door hardware on truck bodies and trailers where a 1/4″ x 3″ bolt assembly matches the original mounting arrangement.

Why Choose ICS Trailers

A 1/4″ x 3″ door bolt can still be wrong if the head or neck profile differs from the original. If the old fastener is worn or missing, send clear photos and mounting measurements so ICS Trailers can help narrow the match.

• Check adjacent door hardware for looseness or wear.
• Match diameter, length, head profile and nut arrangement before fitting.
