Description

Overview

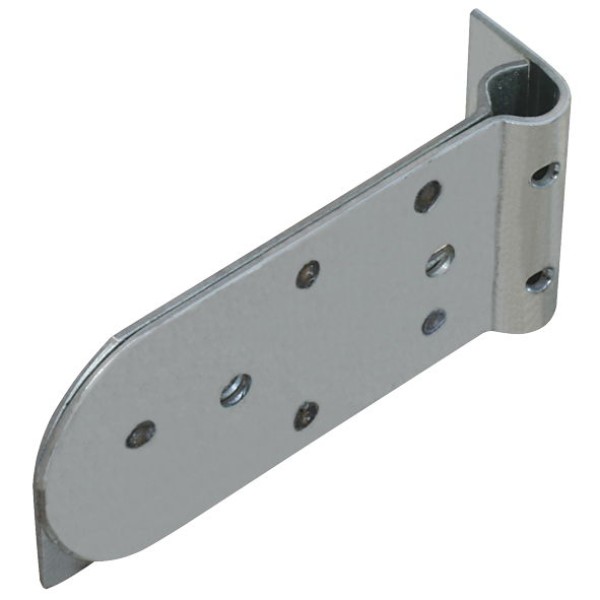

The left-hand bottom roller plate assembly supports the lower roller position on compatible TODCO roll-up doors. It suits 3/4in, 1 1/8in and 2 1/2in door panels, with handing the critical selection point because the opposite-side assembly is separate.

Features

• Left-hand lower roller plate configuration.
• One assembly suits all three listed door thicknesses.
• Mounts at the lower roller position.

Specifications and Materials

Product type: roll-up door lower roller plate assembly.

Handing: left-hand.

Compatible panel thicknesses: 3/4in, 1 1/8in and 2 1/2in.

Part number: CV3584LH.

See the official TODCO replacement parts overview

Compatibility and Fitment

Confirm the existing part is the left-hand version. Compare the mounting-hole pattern, roller position and panel thickness before ordering. The main mismatch risk is selecting the separate right-hand assembly.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Secure the door against movement before removing lower-corner hardware. Inspect the roller, fasteners and track clearance for wear or distortion, then confirm free movement after fitting. Loaded lift cables and counterbalance components require appropriate repair experience.

Trailer Applications

Used on compatible TODCO roll-up doors on freight bodies, vans and trailers where left-hand lower roller hardware requires replacement.

Why Choose ICS Trailers

Handed lower-door hardware is easy to mix up once removed, especially when left and right assemblies have similar mounting layouts. Send the door serial number, panel thickness and clear photos of both lower corners if the required side is uncertain.

• Compare the mounting-hole pattern and roller position before fitting.
• Match the opposite-hand assembly when both lower corners need attention.
