Description

Overview

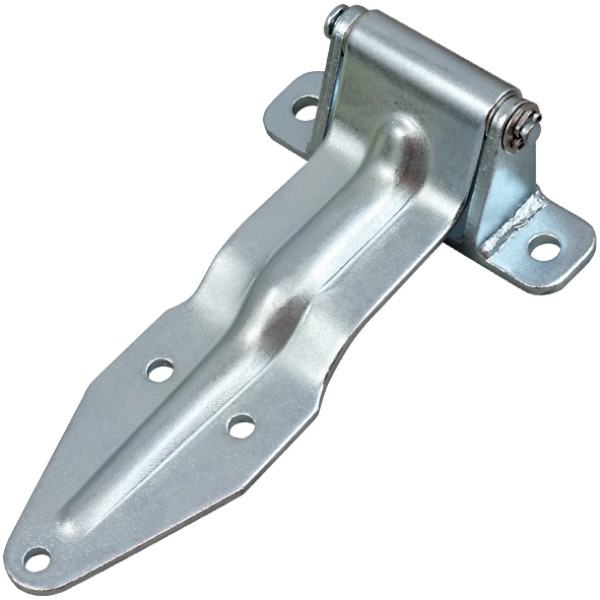

Pressed medium door hinge blade assembly provides an over-seal hinge point for trailer and van body doors where the hinge must clear a PVC door seal. It uses high strength zinc-plated steel and comes complete with the blade, pin and butt for renewing the complete hinge point.

Features

• Over-seal pressed profile clears compatible PVC door seals.
• Includes the blade, hinge pin and butt.
• High strength zinc-plated steel construction.
• Medium-size configuration for an existing pressed hinge setup.

Specifications and Materials

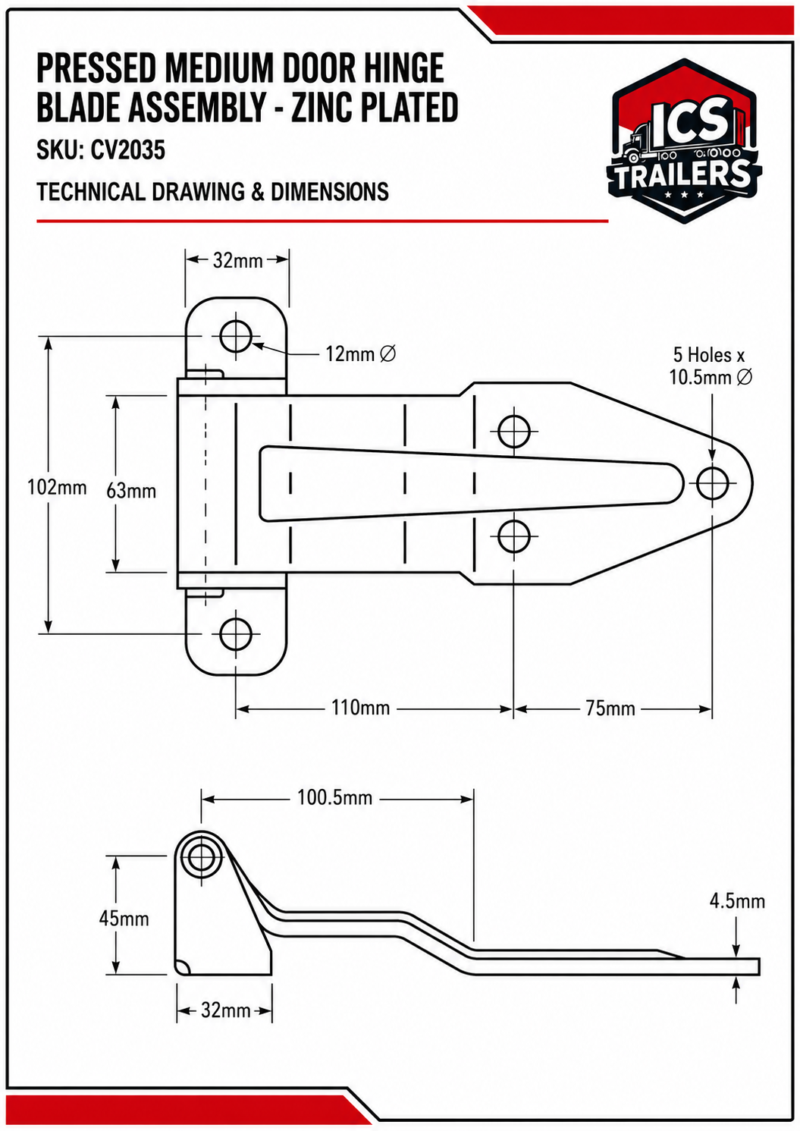

Construction: high strength zinc-plated steel. Configuration: medium pressed over-seal hinge. Included components: blade, pin and butt.

Part number: CV2035.

See the Australian Steel Institute zinc coating guide

Compatibility and Fitment

Compare the existing hinge size, over-seal offset, butt position and mounting-hole layout before ordering. The main mismatch risk is choosing the wrong physical size or hole layout even when the door seal style looks correct.

Compliance and Safety

Before fitting, inspect the hinge mounting area, fasteners and PVC seal for damage. Confirm the pin moves freely and the pressed blade clears the seal through the full door swing without binding.

Trailer Applications

This hinge suits compatible trailer and van body doors that use an over-seal hinge arrangement to pass over a PVC door seal.

Why Choose ICS Trailers

This medium over-seal hinge needs to match the existing hinge envelope, butt position and mounting layout, not just the general door type. If the old hinge is bent, worn or partly missing, send ICS Trailers a clear photo plus the key mounting measurements. We can help compare the pressed profile before you replace the complete blade, pin and butt assembly.
