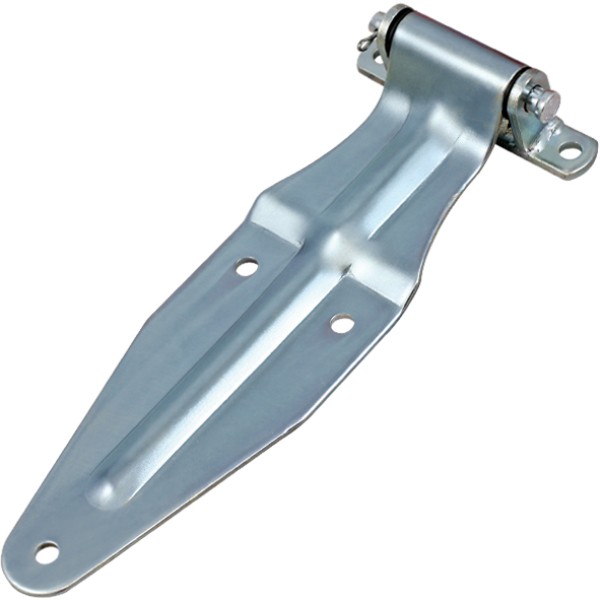

Pressed door hinge blade assembly provides an over-seal hinge point for trailer and van body doors where the hinge must clear a PVC door seal. The high-strength zinc-plated steel assembly includes the blade, pin and butt, so the complete hinge point can be renewed together.

Features

• Over-seal pressed profile clears compatible PVC door seals.
• Includes blade, 12mm hinge pin and butt.
• Three 10.5mm mounting holes secure the blade.
• Zinc-plated steel construction.

Specifications and Materials

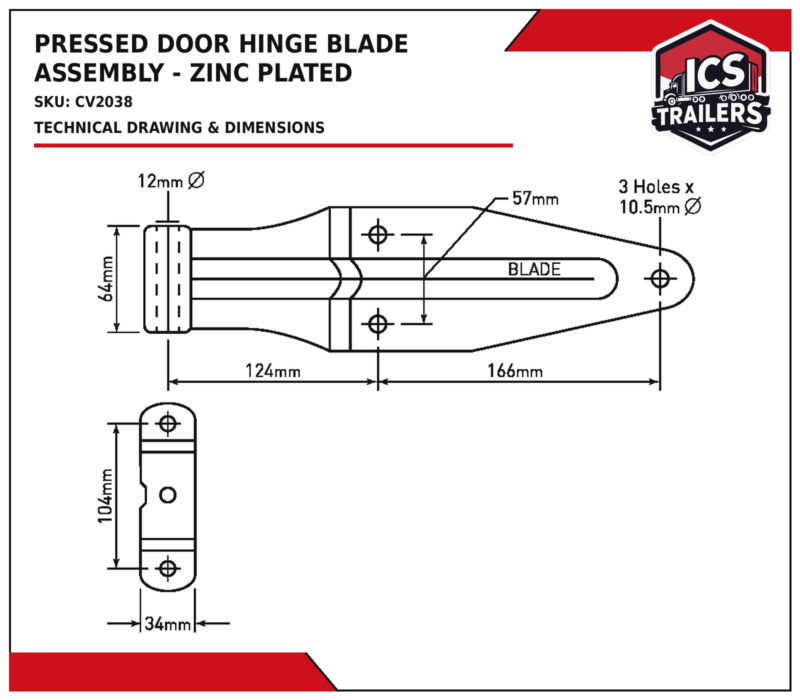

The two inner blade holes are 57mm centre-to-centre. The hinge axis sits 124mm from their centreline, then the outer hole centre is another 166mm along the blade. The butt measures 104 × 34mm.

Part number: CV2038.

For more detail on zinc finishes, see the Galvanizers Association of Australia zinc coating guide

Compatibility and Fitment

Compare the over-seal offset, 12mm pin, three-hole pattern, mounting centres and butt size before ordering. A similar-looking hinge can still place the blade or butt holes in the wrong position.

Related Parts

Compliance and Safety

Inspect the door skin, mounting points, pin and bush area before fitting. Repair damaged mounting holes, then confirm the hinge swings freely without dragging across the PVC seal.

Trailer Applications

This pressed door hinge blade assembly suits compatible trailer and van body doors where the blade needs to pass over a PVC door seal while maintaining normal door movement.

Why Choose ICS Trailers

The three-hole blade, 12mm pin and over-seal profile are the main checks when replacing this hinge. If the old assembly is bent or incomplete, send ICS Trailers a clear photo and the mounting measurements. We can help compare the hole centres, butt size and seal clearance, and confirm the pivot arrangement before the repair is completed.
