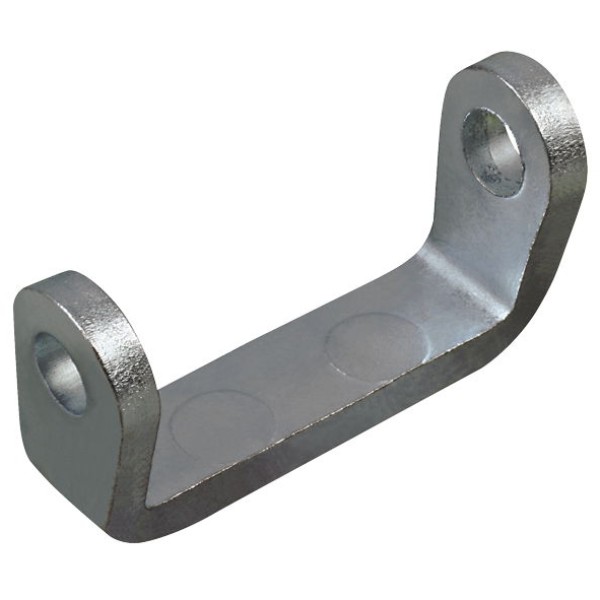

The offset weld-on hinge butt provides a fixed pivot point for compatible trailer and van door hinge assemblies. Its offset U-shaped form gives the matching hinge blade clearance around the door edge while the weld-on base lets the butt become part of the door or body structure.

Features

• Weld-on mounting for a permanent hinge pivot.
• 64mm internal span between the upright cheeks.
• 12.7mm pin bore with a 51mm overall height.

Specifications and Materials

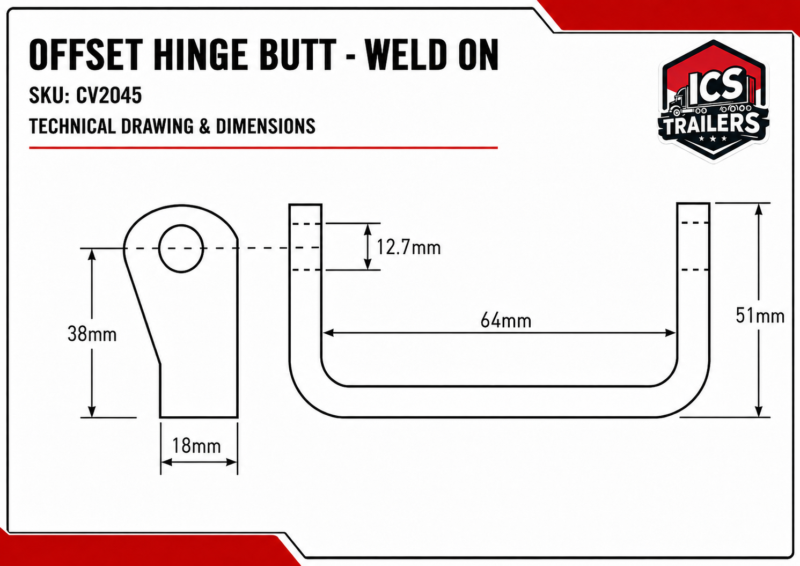

Internal span: 64mm. Pin bore: 12.7mm. Overall height: 51mm. Bore centre height from base: 38mm.

Part number: CV2045.

Review the WorkSafe Victoria welding safety guidance

Compatibility and Fitment

Before welding, compare the existing pin diameter, internal span, offset and pivot height. The main mismatch risk is locating a similar butt with the wrong offset or bore position, which can leave the blade misaligned through the door swing.

Related Parts

Check the related hinge parts below against the existing door setup before ordering.

Compliance and Safety

Set the hinge axis and door alignment before completing the weld. Keep the bore free from weld spatter, then confirm the pin seats correctly and the hinge moves through its full travel without binding.

Trailer Applications

This butt suits compatible trailer and van body door hinge repairs where an offset weld-on pivot is required.

Why Choose ICS Trailers

Offset, bore size and hinge spacing all matter when replacing a welded butt because the finished pivot position cannot be adjusted easily after installation. If the old part is damaged or distorted, send ICS Trailers clear photos plus the pin diameter and hinge measurements. We can help compare the 64mm internal span and pivot layout before welding begins.
