Door Hinge Butt Assembly With Zinc Plated Pin
Door Hinge Butt Assembly With Zinc Plated Pin
$14.00
Door hinge butt assembly for compatible trailer and van door hinges, supplied with a zinc plated pin and sized with a 30mm lug width and 64mm internal span to help match the existing hinge arrangement.
Part number CV2004AS.
Description
Overview

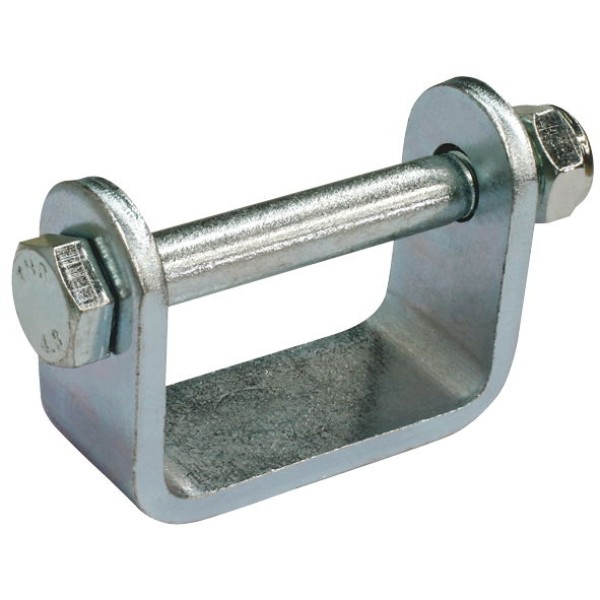

The door hinge butt assembly forms the fixed section of a pressed trailer door hinge and includes the zinc plated pin. Compare its 64mm internal span, 30mm lug width and 12.7mm pin diameter when replacing worn hinge hardware.
Features
- Includes zinc plated hinge pin
- 30mm lug width
- 64mm internal span
- 38mm base-to-pin centreline with 12.7mm pin diameter
Specifications and Materials

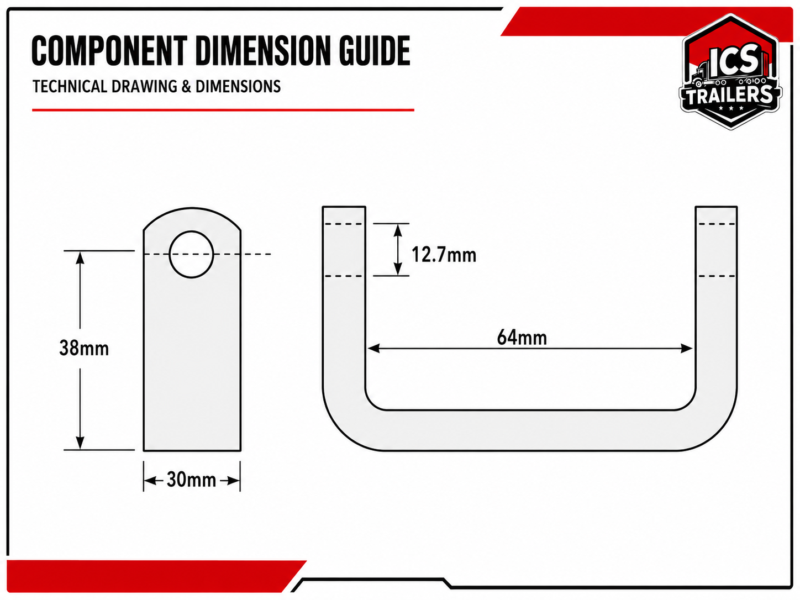

The included pin passes through the two upright lugs. Each lug measures 30mm wide, with a 64mm internal span, 38mm pin-centre height and 12.7mm pin diameter. Part number: CV2004AS.
For technical background on electroplated zinc coatings, see the ISO 2081 coating overview
Compatibility and Fitment
Match the door hinge butt assembly to the existing hinge by comparing the 64mm span, 30mm lug width, 38mm pin-centre height and 12.7mm pin diameter. Incorrect span or pin size can stop the hinge blade aligning and moving freely.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Suits | CV2000 | Pressed door hinge blade and butt |
Compliance and Safety
Inspect the hinge area for wear, distortion and corrosion. After fitting, confirm the pin seats fully and the door moves without binding.
Trailer Applications
Workshops fit this butt during trailer and van door repairs using compatible pressed hinge arrangements.
Why Choose ICS Trailers
Similar-looking hinge butts can differ in span, lug width and pin size, so dimensions matter more than appearance alone. ICS Trailers can compare photos and measurements with the existing hinge arrangement when you are narrowing down a replacement.
- Check the hinge blade and mounting area while the joint is apart so surrounding wear is not missed.
- Send the 64mm span, 30mm lug width and pin measurement if the old part has no readable markings.
