Wheel Stud – Double Ended
Wheel Stud – Double Ended
$2.75
Double-ended 5/8″-11 trailer wheel stud with 74mm A, 39mm B and 25mm C dimensions for compatible wheel-end and spider-hub applications. Compare the thread pitch and dimensional profile with the removed stud before fitting.
Part number AP6006.
Description
Overview

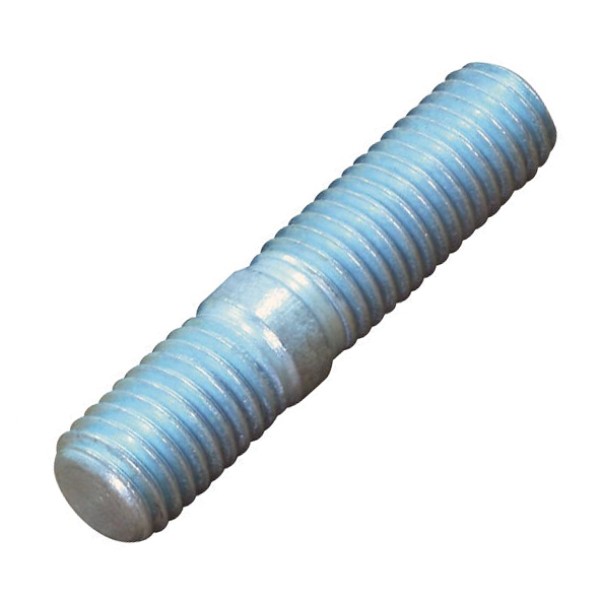

The double ended wheel stud is a 5/8″-11 fastener for general-purpose trailer and spider-hub wheel ends, with a 74mm A dimension, 39mm B dimension and 25mm C dimension.
Features
- Double-ended threaded wheel stud design
- 5/8″-11 coarse thread
- 74mm A, 39mm B and 25mm C dimensions for dimensional matching
Specifications and Materials
Thread: 5/8″-11. A dimension: 74mm. B dimension: 39mm. C dimension: 25mm.
Part number: AP6006.
See the ISO commercial vehicle wheel-hub attachment standard
Compatibility and Fitment
Compare the thread pitch and all three dimensions with the removed stud before ordering. A similar 5/8″ stud can have different threaded lengths or body dimensions.
The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.
973226R1, BP6031, DSTZ1151A, FL53.1500, FP6031, FQ6031, WP-177, WT6031
Related Parts
| Use | Part number | Part type |
|---|---|---|
| Used with | AP6007 | McGrath wheel nut |
| Used with | AP6008 | 5/8″-11 general-purpose wheel nut |
Compliance and Safety
Inspect both threaded ends for damage and confirm correct engagement with the hub and wheel nut before tightening to the applicable axle or wheel procedure.
Trailer Applications
This stud is used in heavy trailer wheel-end and spider-hub repairs where the existing hardware matches the 5/8″-11 thread and supplied dimensional profile.
Cross-reference and Suitability
This part cross-references to the following verified equivalent or replacement part numbers:
| 973226R1 | BP6031 | DSTZ1151A |
| FL53.1500 | FP6031 | FQ6031 |
| WP-177 | WT6031 |
Why Choose ICS Trailers
Ordering a double-threaded stud by diameter alone can miss important differences in thread pitch and body dimensions. ICS Trailers can compare the 74mm, 39mm and 25mm measurements with the removed part, old markings or wheel-end photos and help identify the matching nut during the same repair.
