Description

Overview

BPW seal carrier supports the hub sealing arrangement on 9 tonne conventional SN4218 oil-lubricated wheel ends. The carrier provides the mounting surface for the oil hub seal and works with a separate O-ring to seal the carrier against the hub assembly.

Features

• Suits 9 tonne BPW conventional SN4218 oil hubs
• 130mm outside diameter and 85mm inside diameter
• 32mm overall width
• One carrier services one wheel-end position

Specifications and Materials

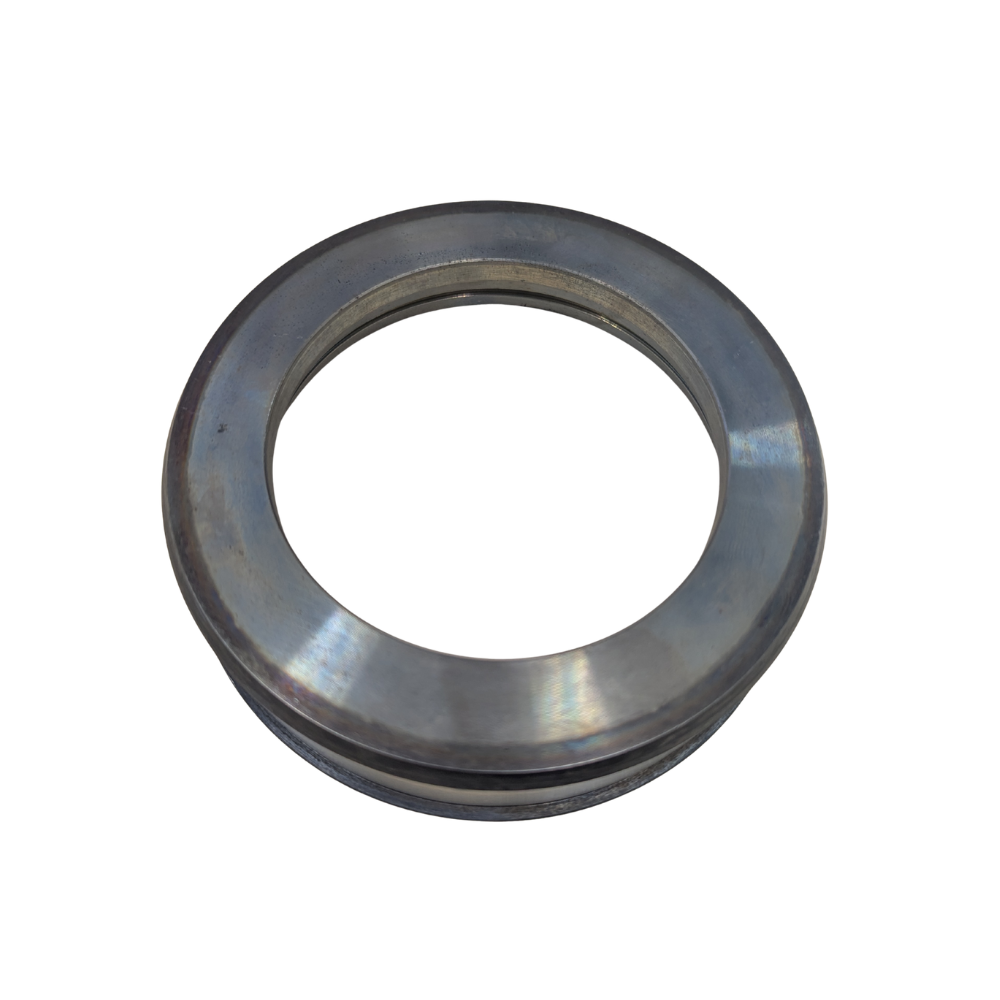

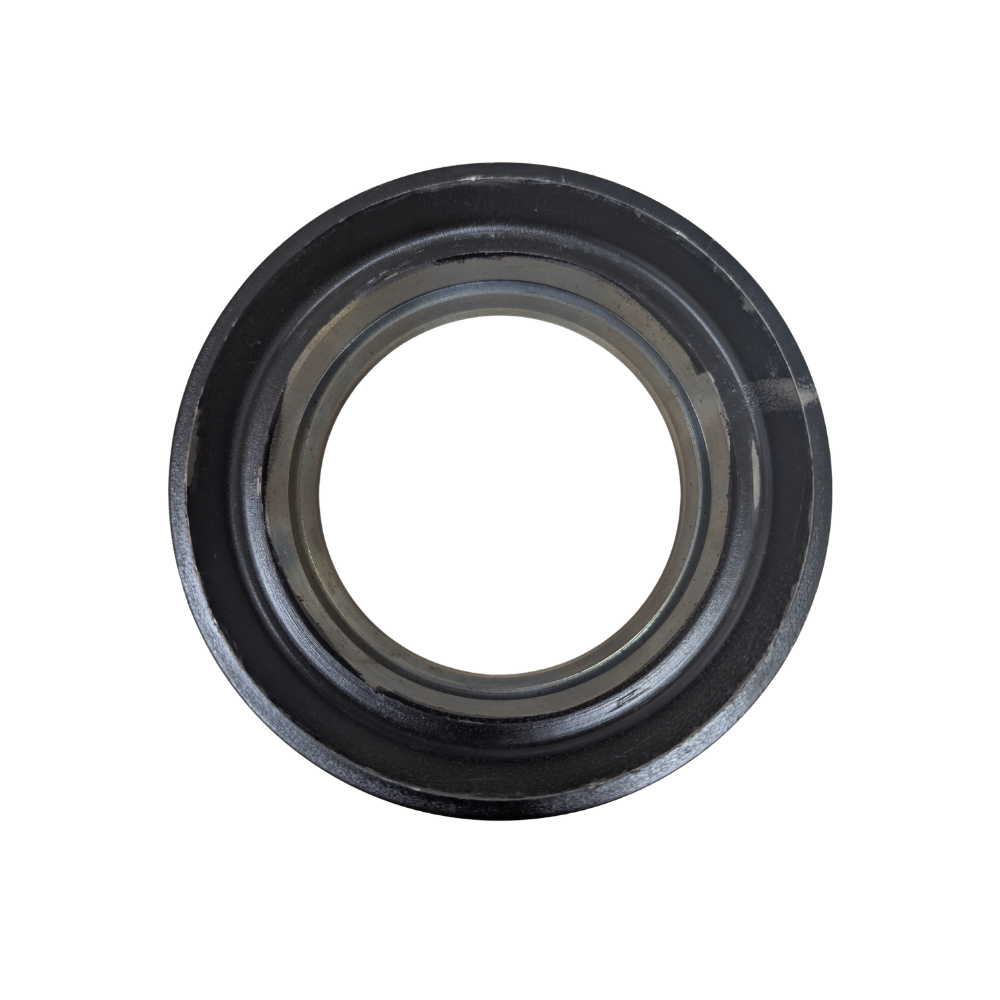

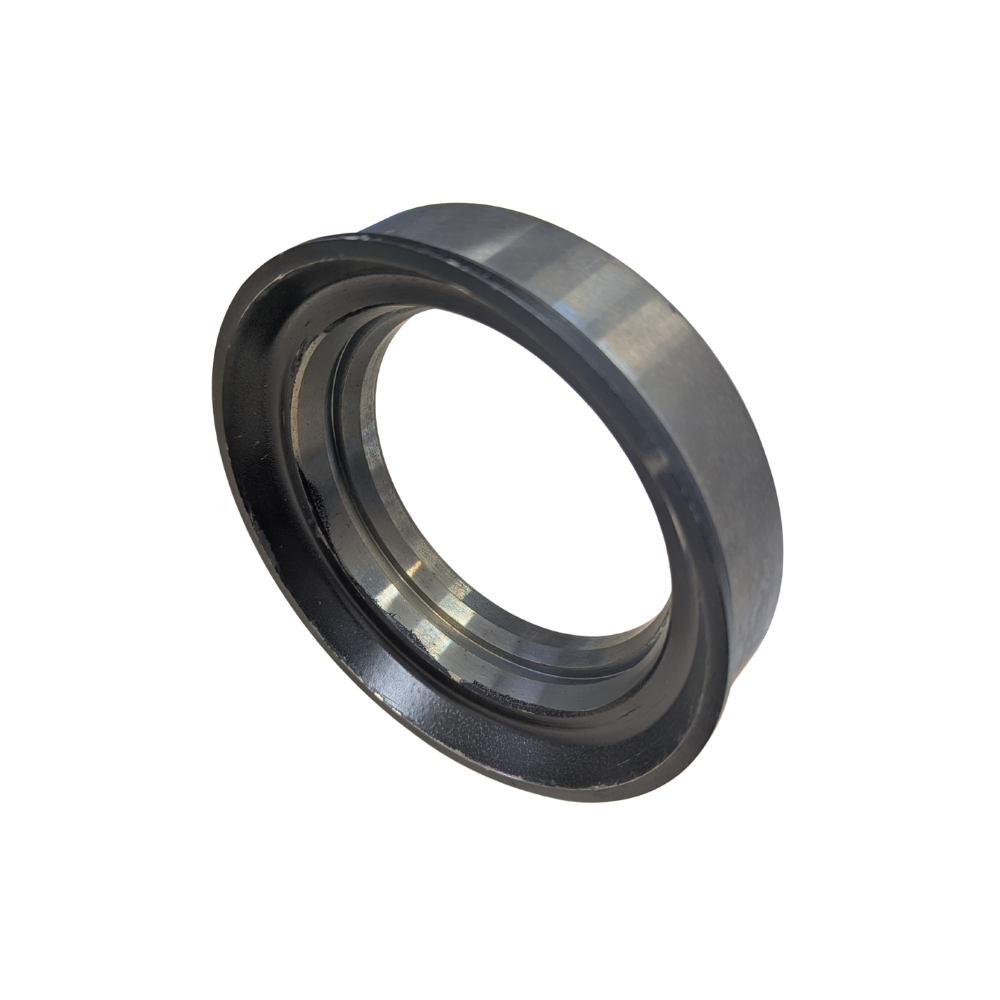

This machined metal seal carrier measures 130mm outside diameter, 85mm inside diameter and 32mm wide. Two carriers are required when servicing both sides of one axle. The O-ring, oil hub seal and other wheel-end components are separate parts.

Part number: 03.370.51.07.0.

See the BPW hub component guide for the matching wheel-end arrangement

Compatibility and Fitment

Confirm the axle capacity, conventional SN4218 hub design and oil lubrication setup before ordering. The main mismatch risk is selecting the grease hub carrier or a carrier for a 10 to 12 tonne hub, as these use different component dimensions and sealing arrangements. Compare the removed carrier’s outside diameter, inside diameter and width before installation.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the hub bore and inspect the carrier seating surface, O-ring groove and seal running area for corrosion, scoring or distortion. Fit the correct O-ring without twisting or cutting it, and protect the hub seal lip from sharp edges during assembly. Refill the wheel end with the lubricant specified for the oil hub and check for leakage after installation.

Trailer Applications

Trailer workshops replace this carrier during hub seal and bearing repairs on 9 tonne BPW conventional SN4218 oil hub axle assemblies. It belongs to the wheel-end sealing system rather than the brake assembly and should be matched by hub type, axle capacity and lubrication method.

Why Choose ICS Trailers

BPW conventional oil and grease hubs use similar-looking carriers, while 9 tonne and heavier wheel ends use different dimensions. ICS Trailers can compare the old carrier measurements, hub lubrication type and axle details before supply. When the hub is dismantled, also inspect the O-ring, hub seal, bearings and sealing surfaces so worn components can be addressed during the same wheel-end repair.
