Description

Overview

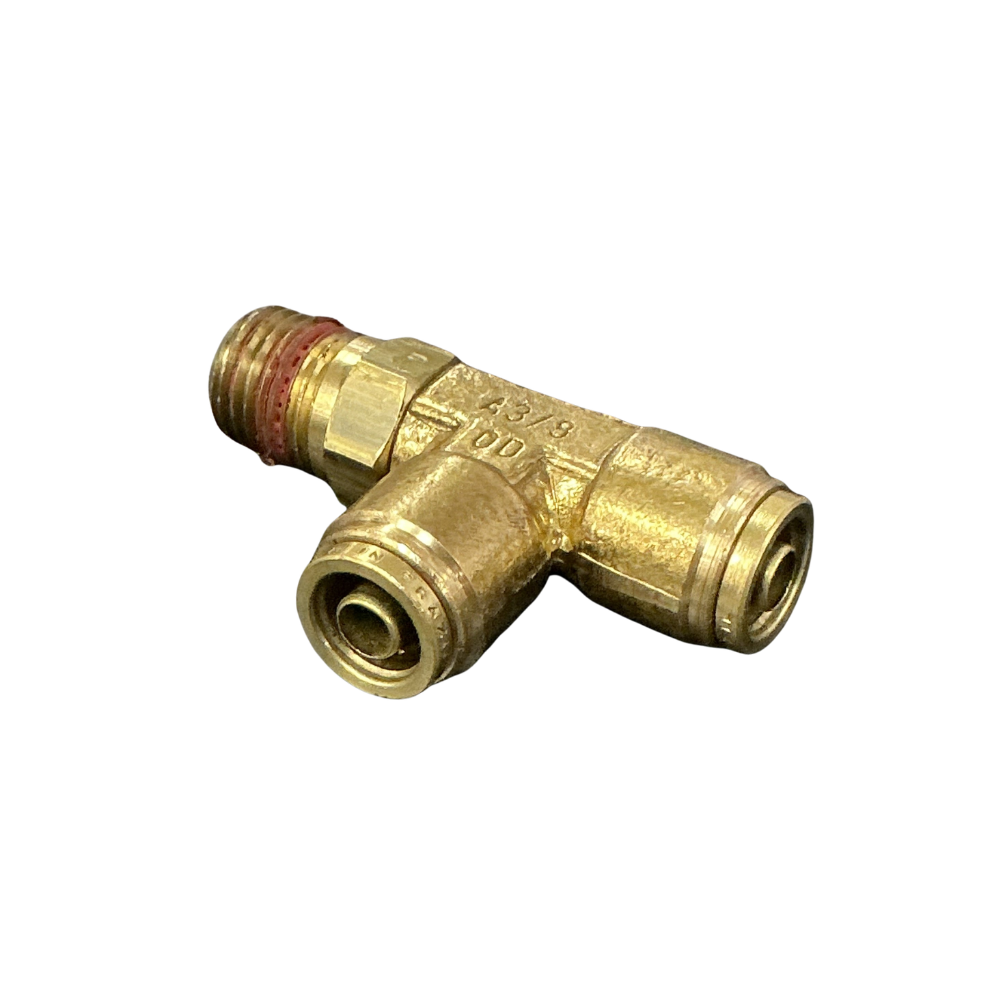

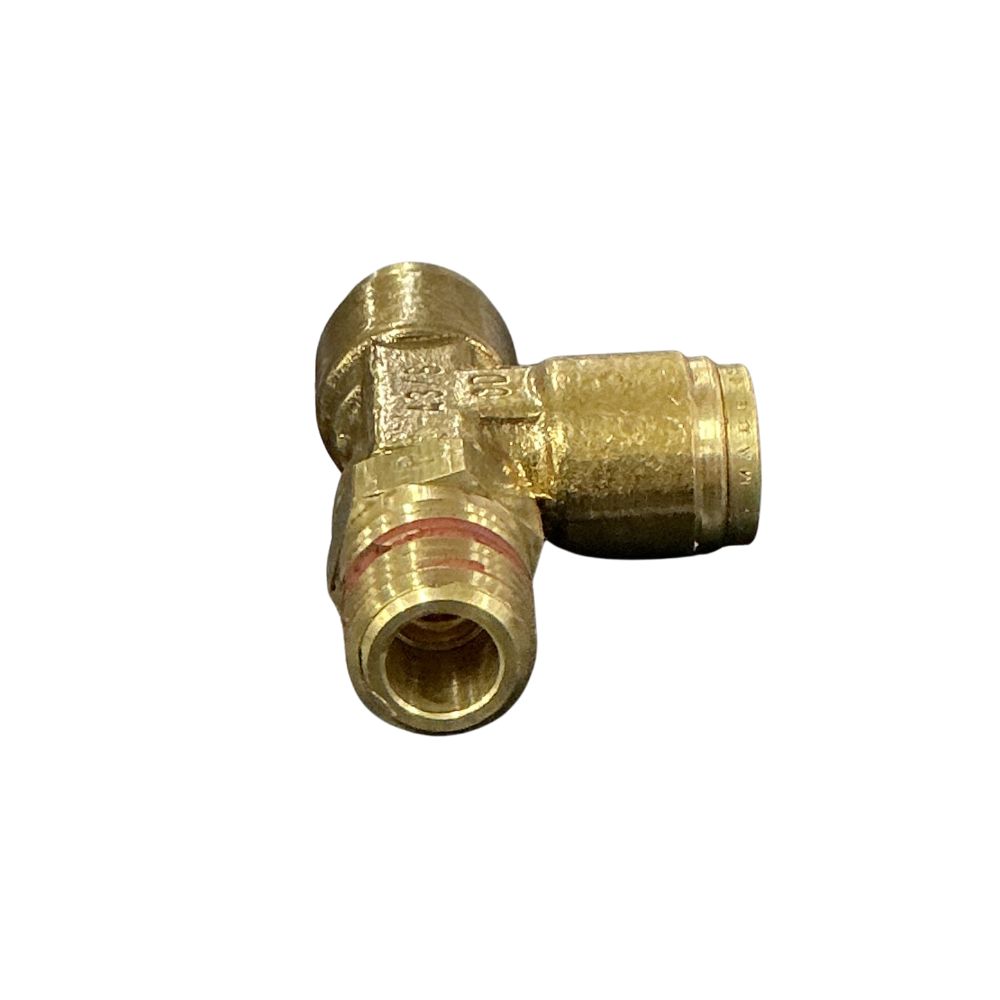

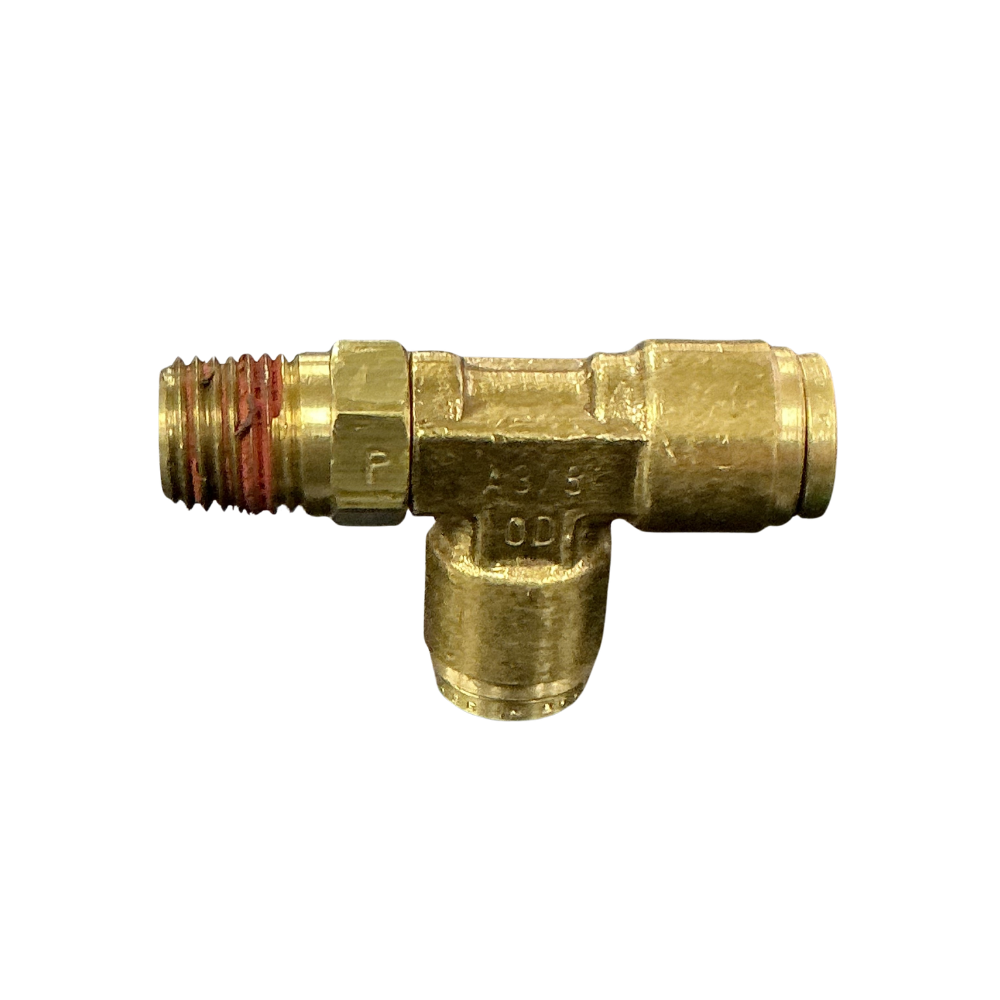

The swivel male run tee connects two 3/8in nylon air lines in a straight run and adds a 1/4 NPTF male branch. Its swivel body lets the branch face the required direction during installation without twisting the tubing.

Features

• Two push-to-connect ports suit 3/8in outside-diameter air brake tube.
• Central 1/4 NPTF male thread branches from the straight tube run.
• Brass body supports repeated tube removal and refitting.
• The swivel provides installation positioning only.

Specifications and Materials

This D.O.T. brass fitting works with SAE J844 air brake tubing. Maximum working pressure is 145 psi, with an operating range from -40°C to 107°C. Internal collets and O-rings grip and seal the tube without a separate nut, olive or insert.

Part number: 88-013S-0604.

See the manufacturer product specifications

Compatibility and Fitment

Confirm 3/8in tube OD, a female 1/4 NPTF port and a run-tee layout. The main ordering risks are choosing a branch tee, metric tube or BSP thread. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ71DOTS0604, S271PMT-6-4, S271PMT64, AQ71-DOTS-6X4, AQ71DOTS6X4, 971-1-64, 971164, 1871-6S, 18716S, PC1471SW-6B, PC1471SW6B, G31130-0406, G311300406, G31140-0406, G311400406, APB71S6X4, 20100, 710604SA, E2471-6, E24716, 171PMT-6-4, 171PMT64, 971-6PXDOTS, 9716PXDOTS, 017901, 1871X6S, 87581

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the circuit before removal. Cut each tube square, clean the port and push the tube fully past the collet and O-ring. Pull back gently to confirm engagement, then pressure-test all three connections.

Trailer Applications

Workshops use this swivel male run tee where a 3/8in trailer air line continues straight while feeding a valve, tank, manifold or control component through a threaded branch.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air line, fittings and pneumatic service parts for trailer repairs. For identification help, send a photo with the tube OD, thread measurement and branch orientation.
