Description

Overview

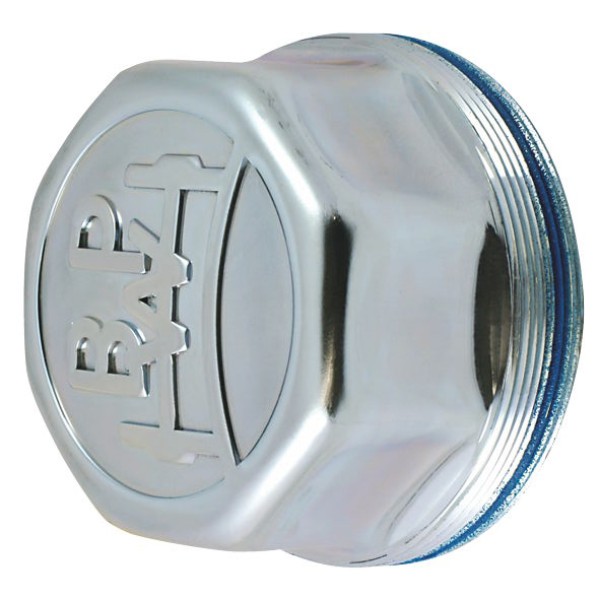

The BPW old gen genuine hub cap closes the threaded end of a grease-filled conventional BPW wheel hub. This screw-on version uses an M125 x 3 external thread, octagonal 110mm across-flats body, 116mm ID and 83mm depth, making thread pitch and hub generation the critical ordering checks.

Features

• M125 x 3 external thread for the old-generation screw-on hub arrangement.
• Octagonal eight-point body with 110mm across flats.
• Zinc-plated metal construction for grease-filled BPW wheel ends.
• 116mm ID and 83mm depth.

Specifications and Materials

Configuration: genuine BPW screw-on metal hub cap. Lubrication application: grease hub. Thread: M125 x 3 external. Across flats: 110mm. Inside diameter: 116mm. Depth: 83mm.

Part number: AP4034G.

See BPW original spare parts information for genuine replacement-part identification and support.

Compatibility and Fitment

Match the old cap by BPW hub generation, M125 x 3 external thread and octagonal 110mm across-flats shape. Later M125 x 2 external-thread and internal-thread ECO or ECO Plus caps use different arrangements.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the M125 x 3 external thread before fitting.

Cross-reference numbers: 0321224020, AP4034, BP4028, IT4028, WT4028, FQ4028.

Related Parts

Check the related service parts below against the wheel-end setup before ordering.

Compliance and Safety

Clean and inspect the hub-cap thread before fitting. Start the cap by hand to avoid cross-threading, then tighten it to the applicable BPW service specification.

Trailer Applications

Mechanics use the BPW old gen genuine hub cap when servicing matching conventional BPW grease hubs and replacing damaged or corroded old-generation screw-on caps.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

Old-generation BPW caps can resemble later styles while using a different thread pitch and hub arrangement. Compare the M125 x 3 external thread, 110mm across-flats shape, 116mm ID and 83mm depth with the removed cap. ICS Trailers can use those measurements, old markings and axle details to narrow down the correct version.

• Support identifying the matching grease seals and seal carrier for the same wheel-end repair.
• Help compare genuine and aftermarket replacement numbers when old markings are incomplete.
