BPW New Gen Disc Wheel Stud – Steel Wheels
BPW New Gen Disc Wheel Stud – Steel Wheels
$8.50

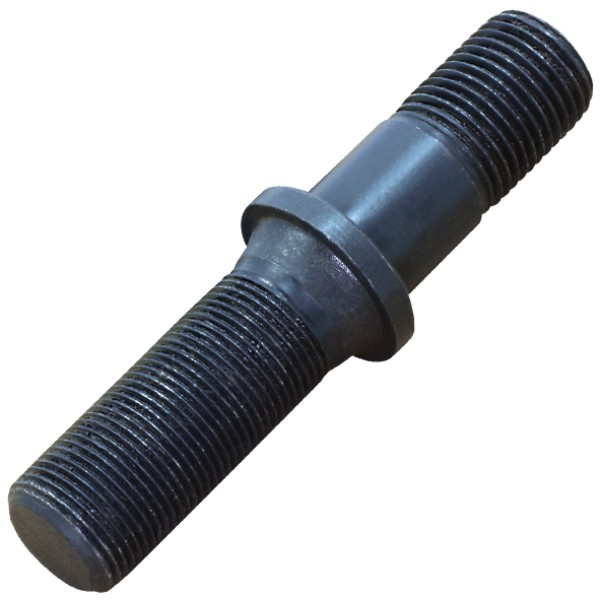

BPW New Generation disc wheel stud for steel wheels, 114mm long with M22x1.5 wheel-side thread and M22x2 back-nut thread, suited to matching trailer axle wheel ends where the back-nut stud style and steel-wheel configuration agree with the removed hardware.
Part number AP6098G.
Description
Overview
The BPW steel wheel stud is a back-nut style fastener for New Generation disc-brake axle applications using steel wheels. Its key identification points are the 114mm overall length, M22x1.5 wheel-side thread and M22x2 back-nut thread.
Features
- Back-nut stud design for compatible BPW disc-brake hubs
- 114mm overall length for the specified steel-wheel configuration
- Dual-thread arrangement for the wheel nut and retaining back nut
Specifications and Materials
A dimension: 114mm. B dimension: 50mm. C dimension: 28mm. D dimension: 24mm. Wheel-side thread: M22x1.5. Back-nut thread: M22x2.
Part number: AP6098G.
For wheel-stud service information, see the BPW technical topics
Compatibility and Fitment
Match the 114mm length, steel-wheel application and both thread sizes before fitting. This version should not be confused with shorter push-in studs or longer aluminium-wheel variants.
The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.
03.296.23.17.0
Related Parts
| Use | Part number | Part type |
|---|---|---|
| Outer wheel fastening | AP6085 | M22x1.5 wheel nut |
| Stud retention | 03.260.04.06.0 | M22x2 back nut |
Compliance and Safety
Inspect both threaded ends, the back nut, wheel nut and hub seating area before assembly. Replace damaged fasteners and follow the applicable BPW wheel-end tightening procedure.
Trailer Applications
This BPW steel wheel stud suits compatible New Generation disc-brake trailer axles with steel wheels and the matching back-nut wheel-fixing arrangement.
Cross-reference and Suitability
This part cross-references to the following verified equivalent or replacement part numbers:
| 03.296.23.17.0 |
Why Choose ICS Trailers
BPW wheel studs vary by hub style, wheel material and overall length, so those details should agree with the removed hardware before installation. ICS Trailers can help compare the existing stud, wheel type and hub arrangement when the old part is damaged or difficult to identify.
- Check the 114mm length and back-nut design before fitting.
- Send wheel-end photos and measurements when the hub configuration is uncertain.
