BPW ECO 9T Nylon Dust Seal

Allan Davis on 10/08/2026

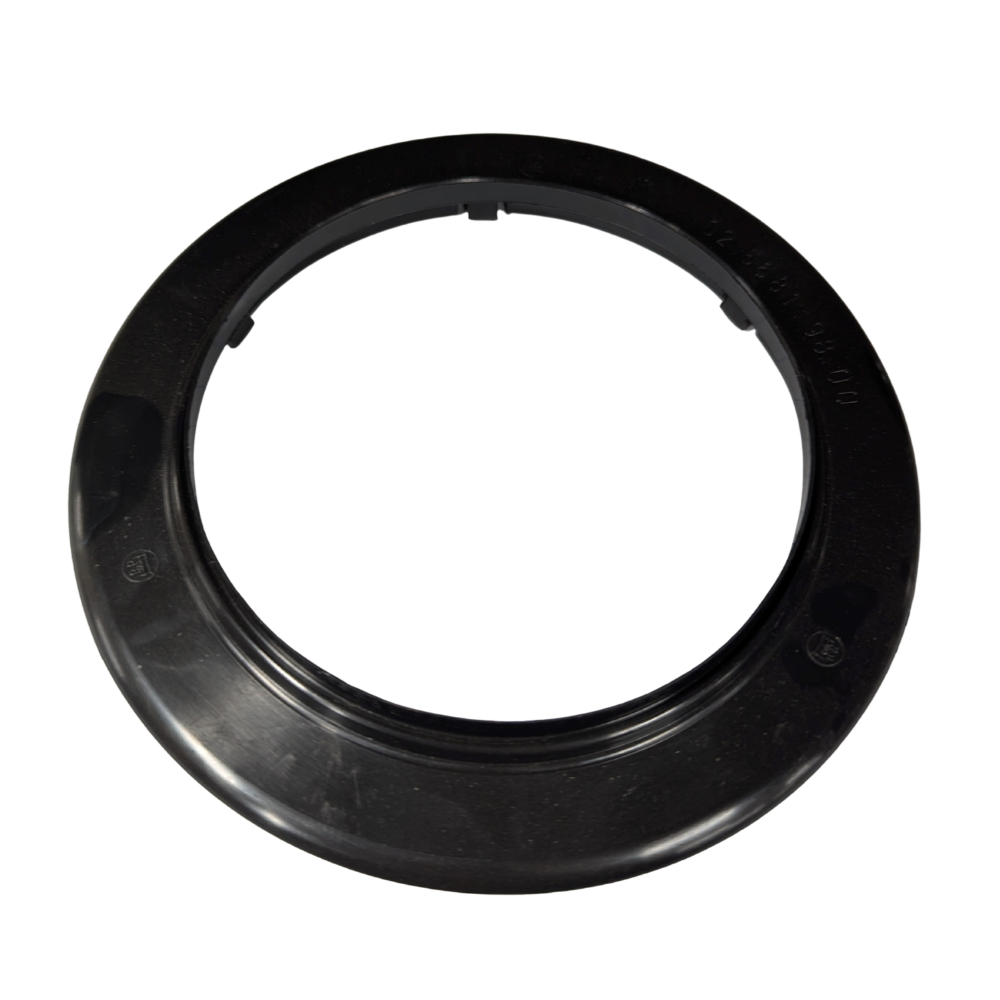

BPW ECO 9T dust seal 103mm x 147mm x 15mm

BPW ECO 9T Nylon Dust Seal

$8.00

BPW nylon dust seal for 9000 ECO 9 tonne trailer hub assemblies, measuring 103mm ID x 147mm OD x 15mm in polyamide. Match the hub series and seal dimensions before replacement to avoid confusing it with the 9100 ECO version.

Part number AP4180G.

Big Post Error: No product quote widget shown as there is insufficient box data stored on this item.

SKU: AP4180G Category: Tags: , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW ECO 9T dust seal protects the wheel-end sealing area on 9000 ECO hub assemblies. It measures 103mm ID, 147mm OD and 15mm high, separating it from the 9100 ECO dust-seal arrangement.

Features

  • 103mm ID x 147mm OD x 15mm.
  • Polyamide construction for the wheel-end sealing position.
  • Matches the 9000 ECO hub arrangement.

Specifications and Materials

Material: polyamide. Dimensions: 103mm ID x 147mm OD x 15mm.

Part number: AP4180G.

See BPW original spare parts information

Compatibility and Fitment

Match the hub as BPW 9000 ECO and compare the 103mm bore, 147mm outside diameter and 15mm height before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0256819800, 02.5681.98.00

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Used with AP4147 Inner circlip
Used with AP4154 Spacer ring
Used with AP0670T Inner bearing 33116
Used with AP0671T Outer bearing 32310



Compliance and Safety

Inspect the sealing area before installation and replace the ring if it is cracked, distorted or no longer seats correctly.

Trailer Applications

Mechanics replace the BPW ECO 9T dust seal during hub and bearing work on 9000 ECO trailer axle wheel ends.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0256819800 02.5681.98.00



Why Choose ICS Trailers

The key identification point is separating the 9000 ECO dust seal from the different 9100 ECO version. If the hub type is uncertain, send the old ring measurements, axle details or a clear hub photo so ICS Trailers can help narrow down the match.

  • Compare the 103mm ID and 147mm OD before replacement.
  • Check the surrounding bearings, circlips and spacer components while the hub is apart.
